>>A<< Engine Assembly Supporting

Remove the manifold differential pressure sensor.
< Engine hanger (special tool MB991895) is used >
1. Set special tool MB991895 (engine hanger) to the front fender assembling bolts (A and B) and (C and D) as shown.

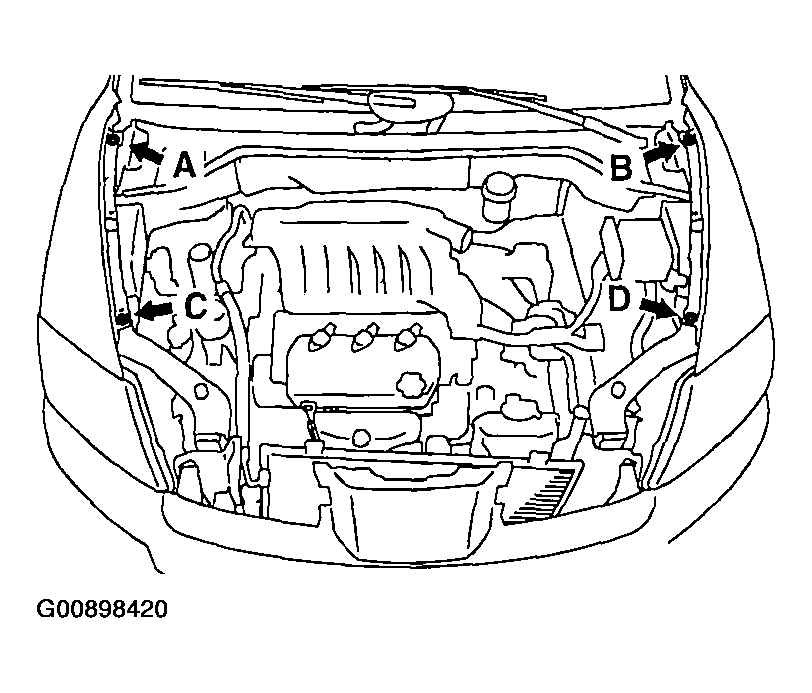

  Fig 1: Setting Special Tool MB991895 (Engine Hanger) To Front Fender Assembling Bolts
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  CAUTION: Place a thick shop towel as shown so that special tool MB991454 does not score the front deck panel.

  Fig 2: Placing Thick Shop Towel
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991454 to hold the engine/transaxle assembly.

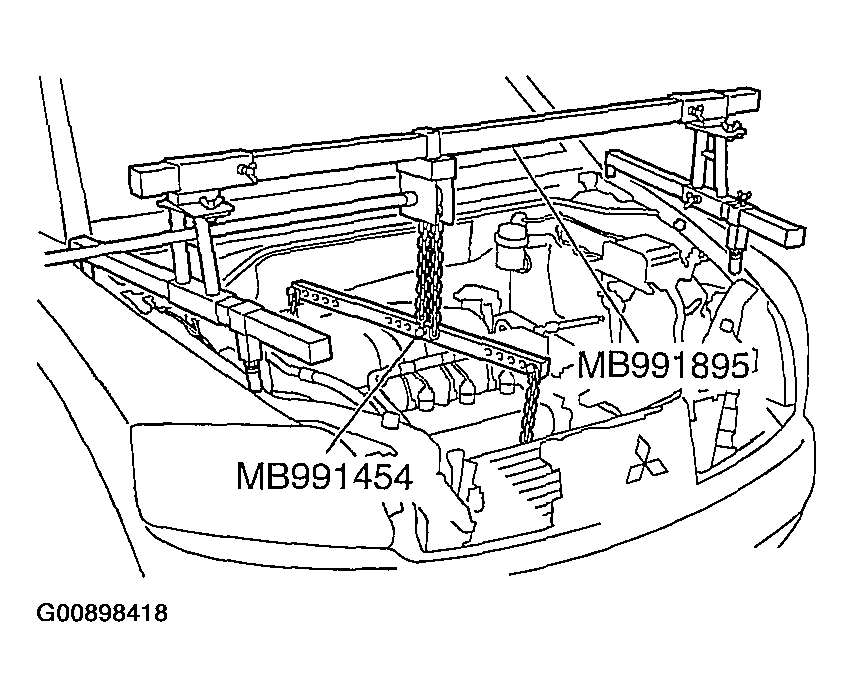

  Fig 3: Setting Special Tool MB991454 To Hold Engine/Transaxle Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991928) is used >
1. Assemble the engine hanger (special tool MB991928). Attach following parts to the base hanger).
  - SLIDE BRACKET (HI)
  - FOOT (STANDARD) (MB991932)
  - JOINT (90) (MB991930)

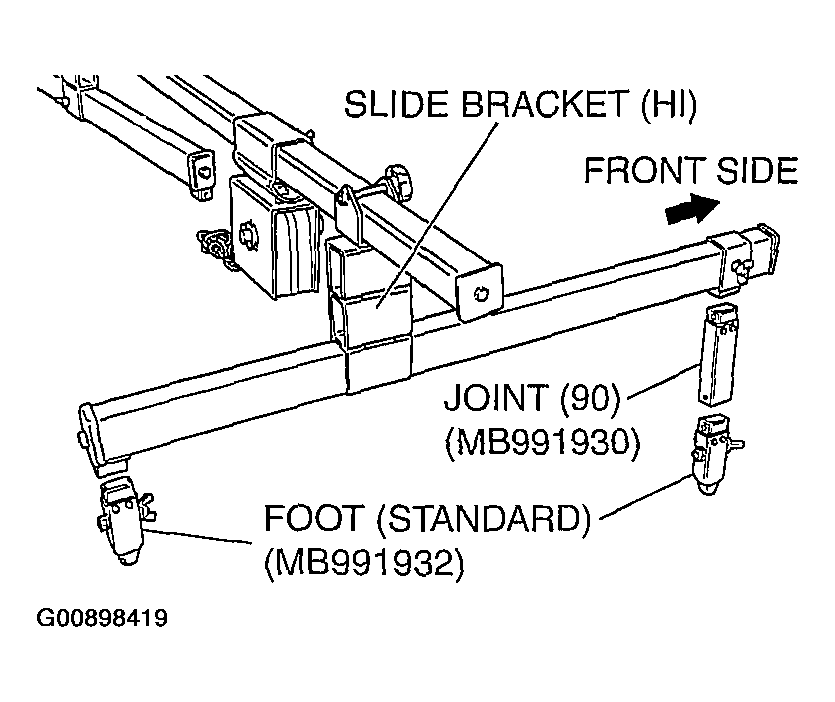

  Fig 4: Assembling Engine Hanger (Special Tool MB991928)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991928 (engine hanger) to the front fender assembling bolts (A and B) and (C and D) as shown.

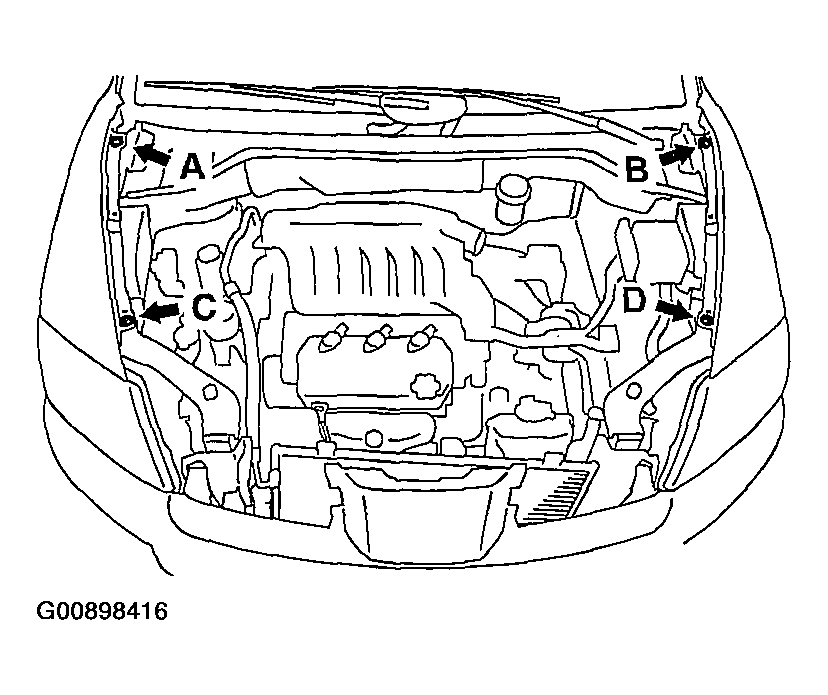

  Fig 5: Setting Special Tool MB991928 (Engine Hanger) To Front Fender Assembling Bolts
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  CAUTION: Place a thick shop towel as shown so that special tool MB991454 does not score the front deck panel.

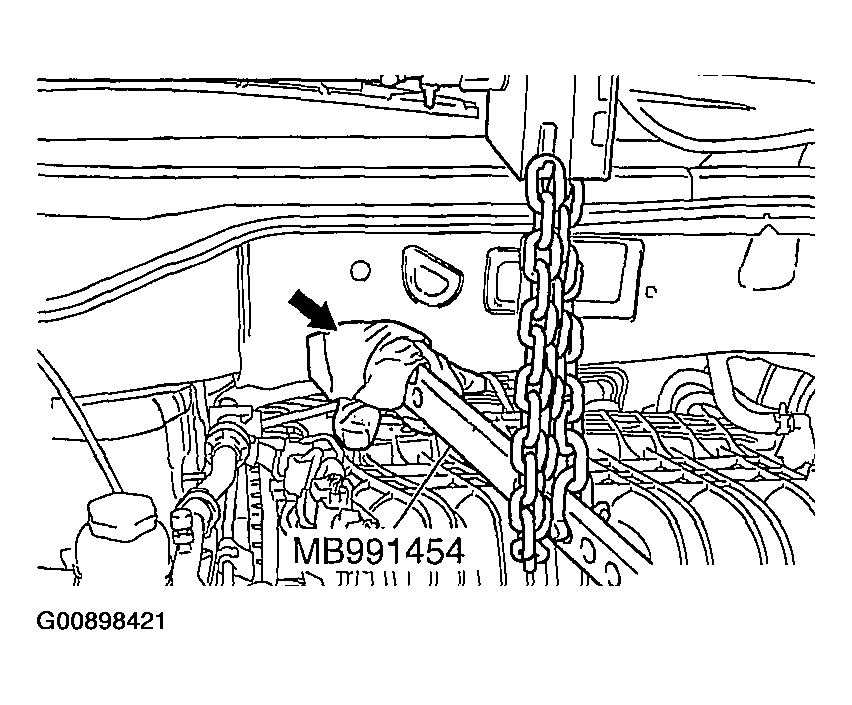

  Fig 6: Placing Thick Shop Towel
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Position special tool MB991454 to hold the engine/transaxle assembly.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

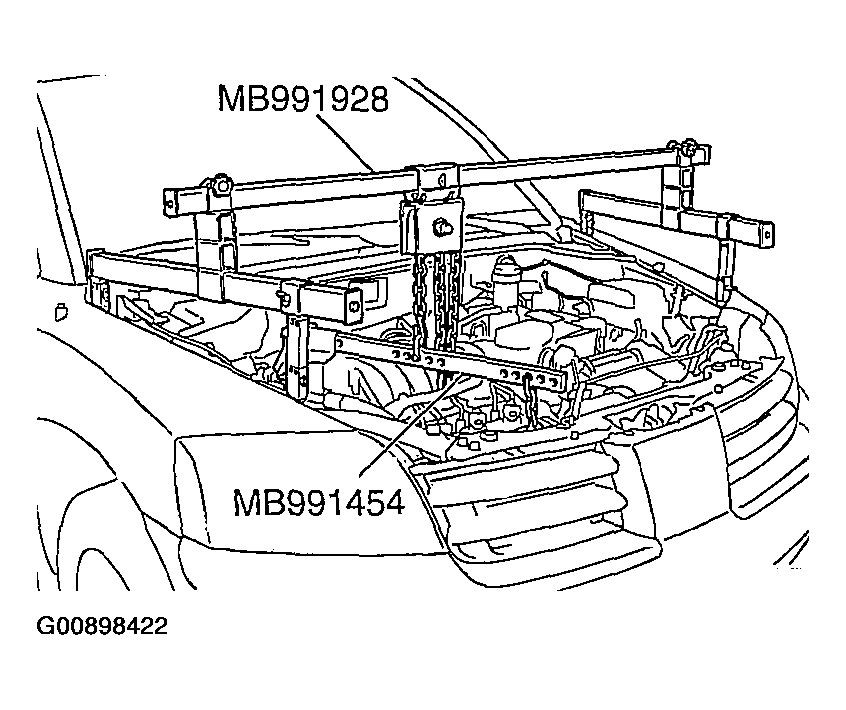

  Fig 7: Positioning Special Tool MB991454 To Hold Engine/Transaxle Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
