Function Element Table

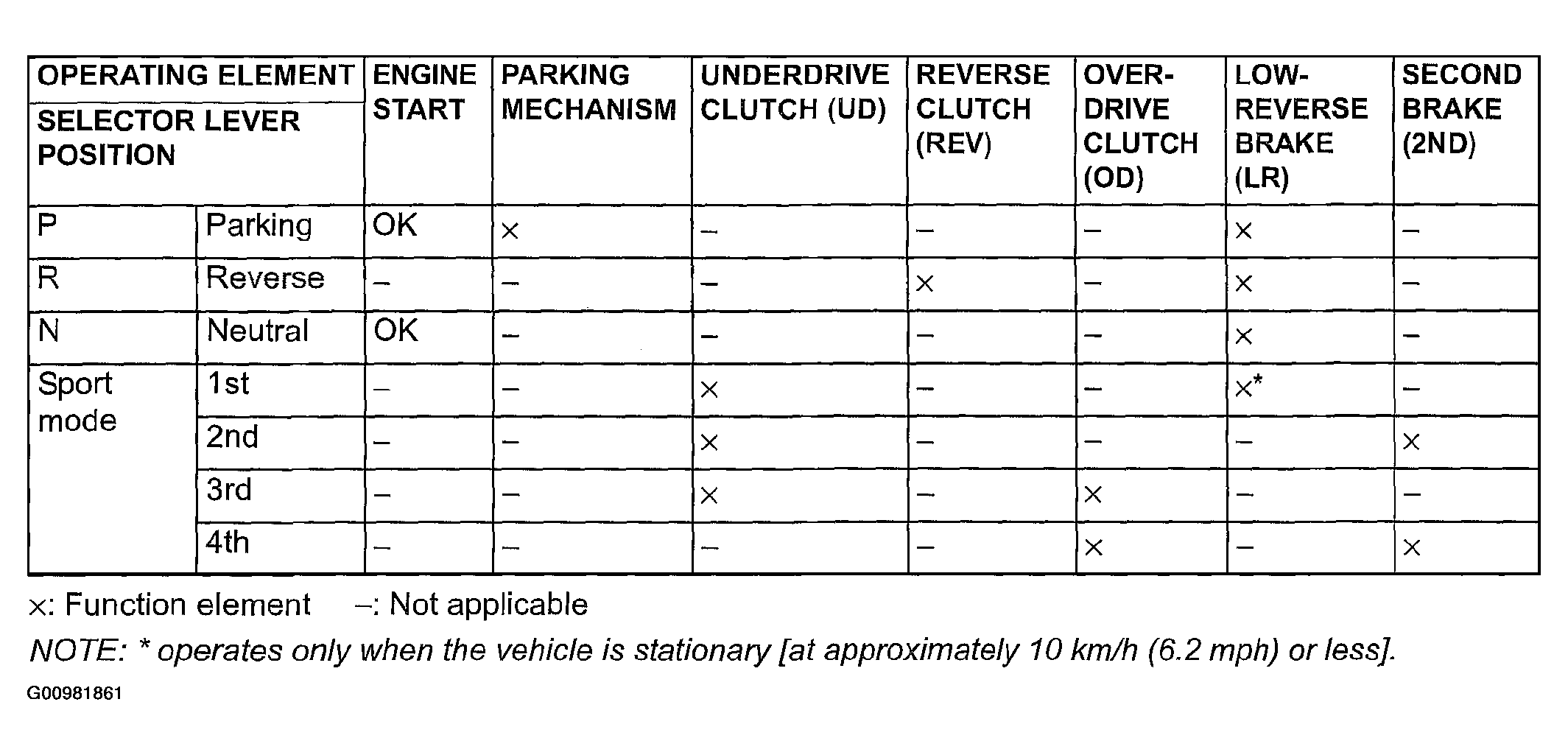

Fig 1: Automatic Transaxle Function Element Table

G00981861

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
