4TH Gear Range
4TH Gear Range

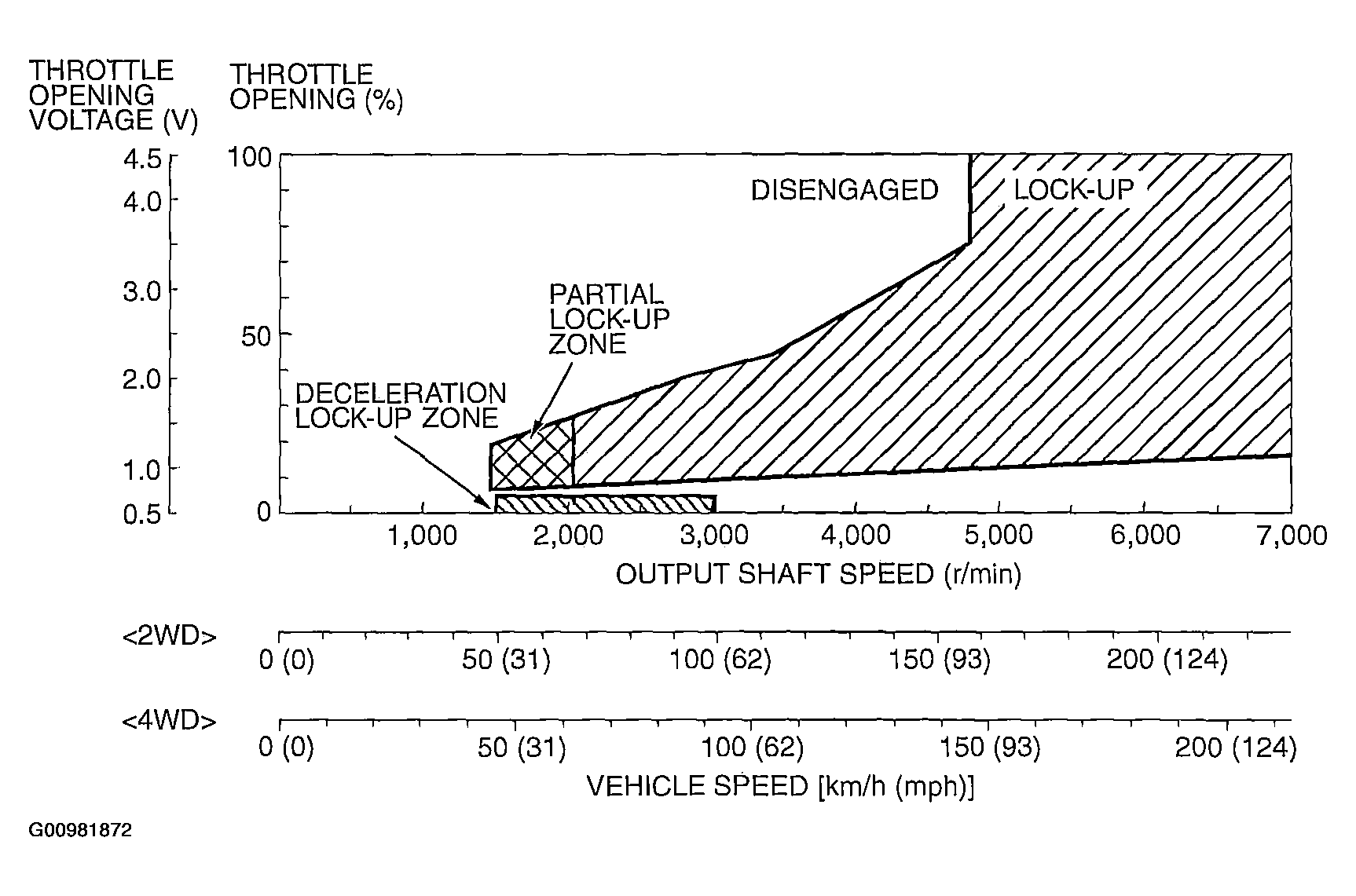

Fig 1: Torque Converter Clutch Control 4TH Gear Range Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
