INSPECTION PROCEDURE 16: Shift Position Indicator Light System: Notes

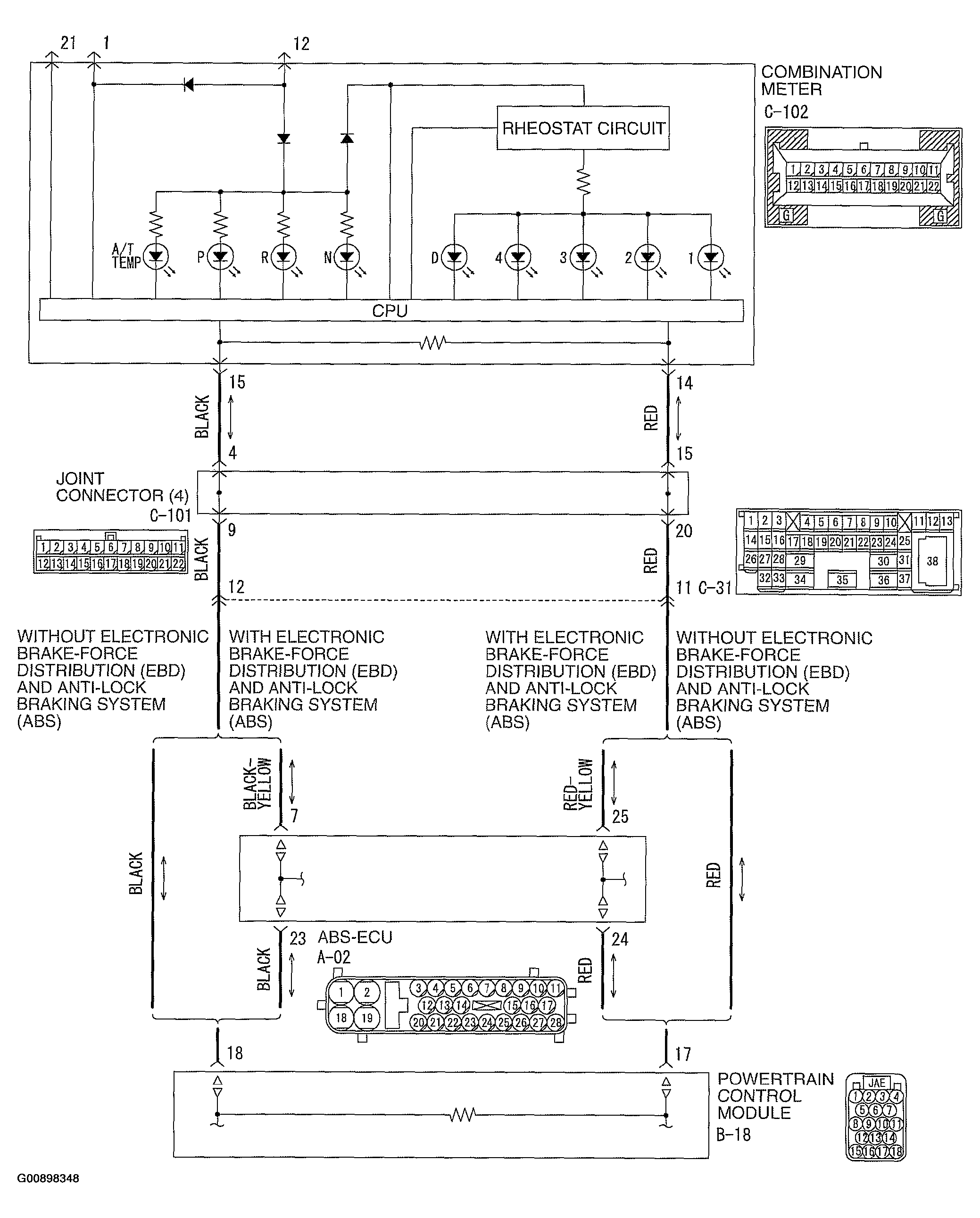

Fig 1: Communication Circuit (CAN Communication Line) Between PCM And Combination Meter
G00898348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
