Removal And Installation: Notes

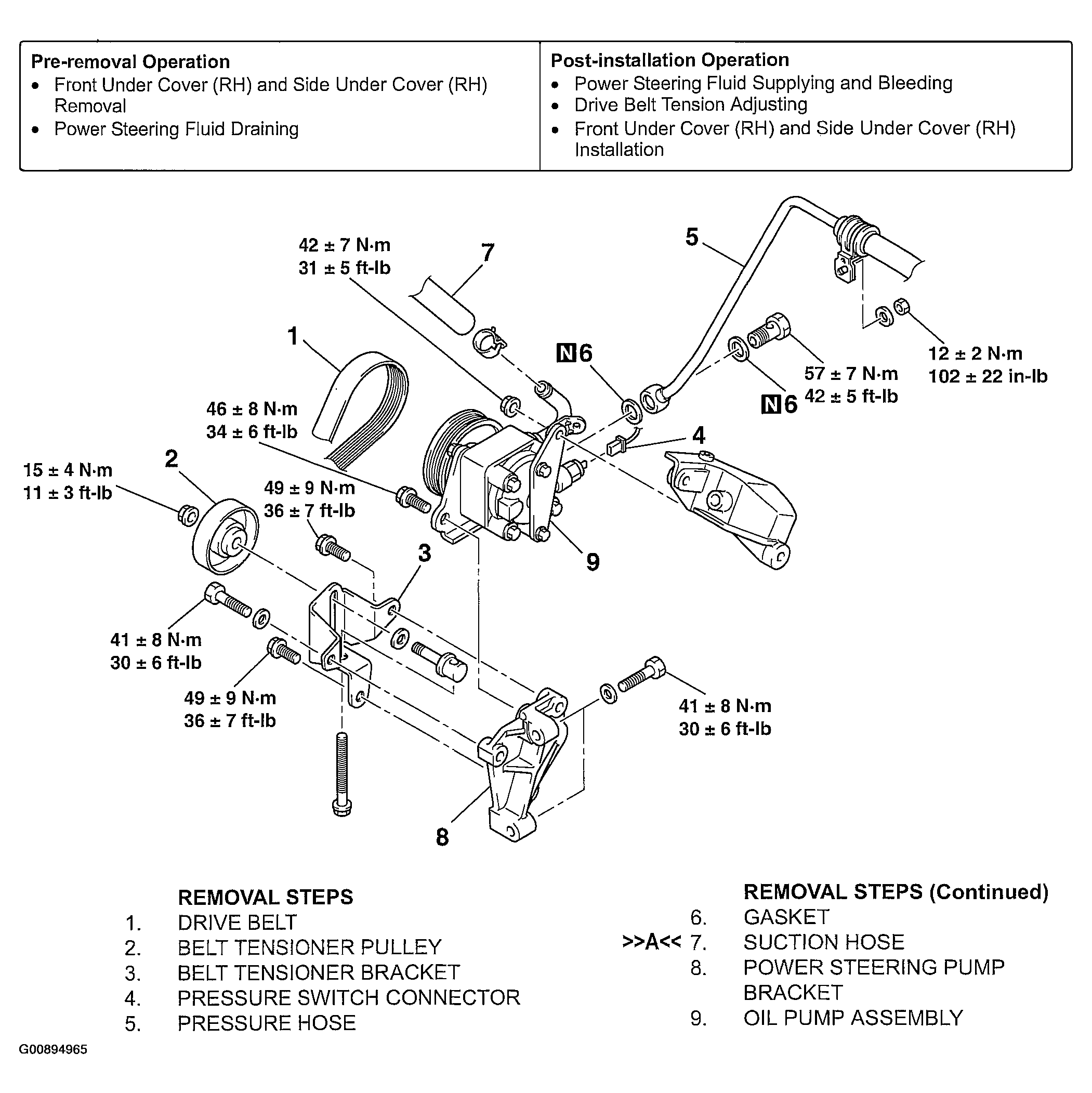

Fig 1: Removing & Installing Power Steering Oil Pump

G00894965

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
