Brake Fluid Level Switch Connector A-04 Connector End View

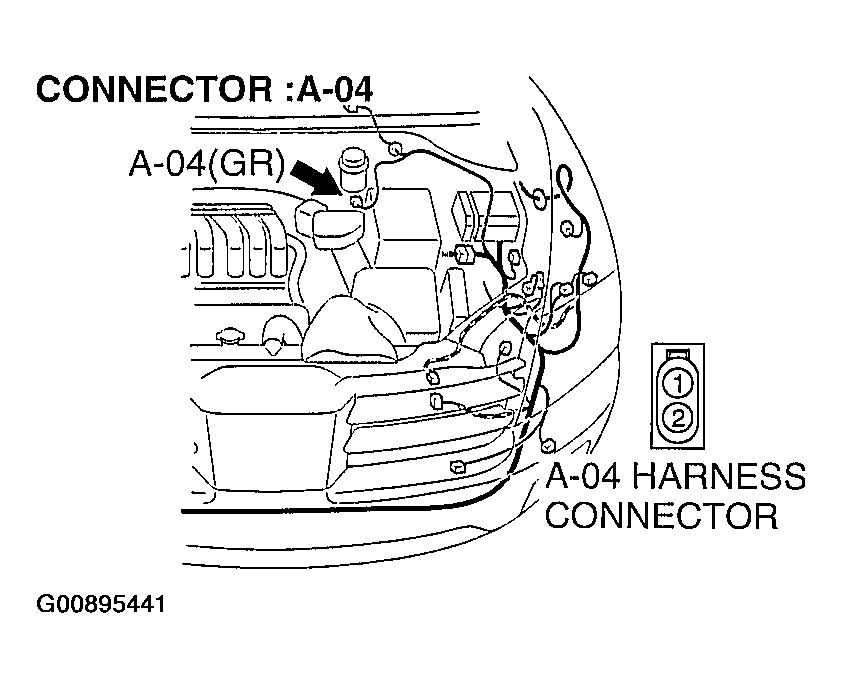

Fig 1: Brake Fluid Level Switch Connector A-04 Connector End View

G00895441

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
