Traction Control System (TCL)
>>
General Description
>>
Construction Diagram
Construction Diagram

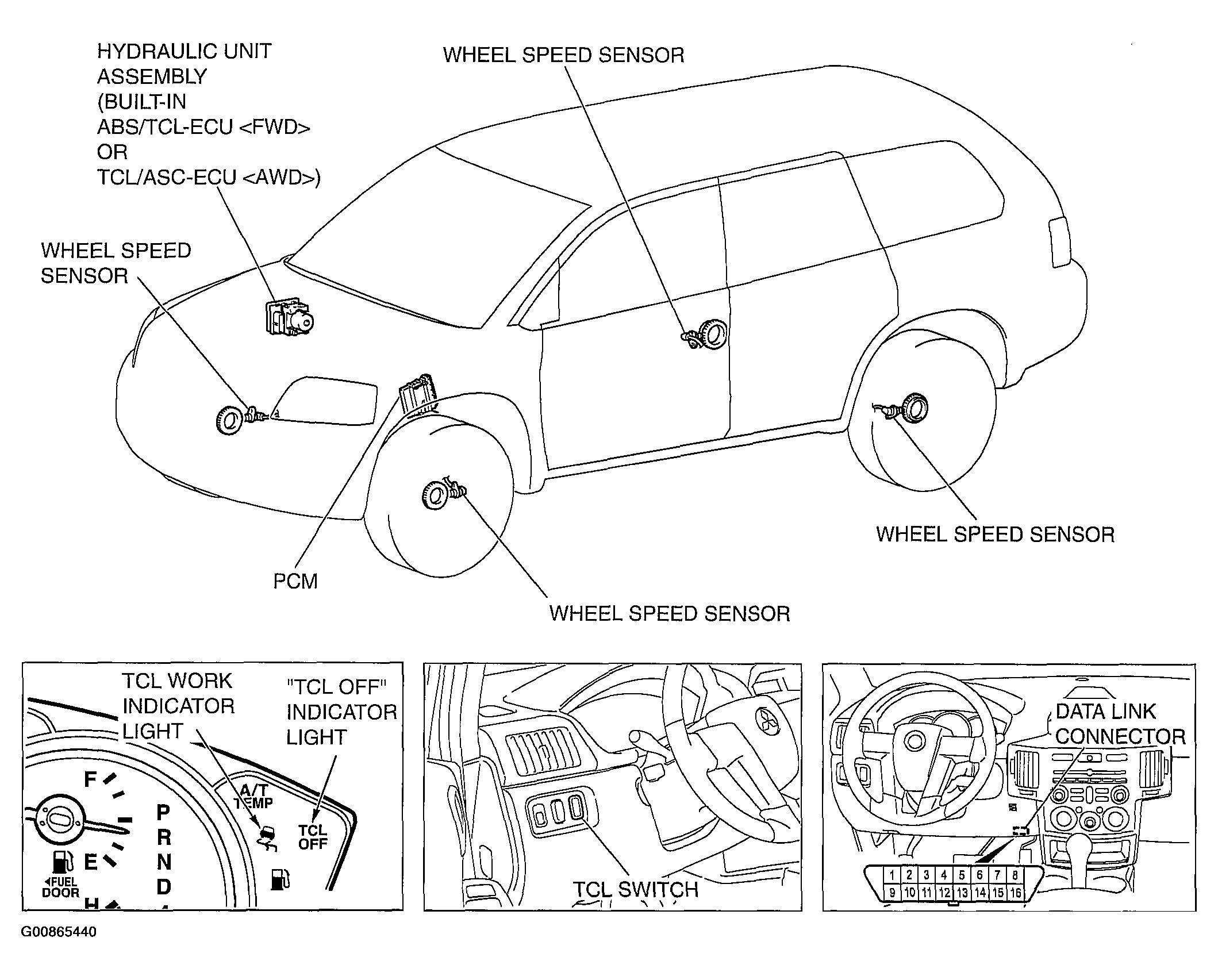

Fig 1: Identifying Traction Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
