Service Specifications

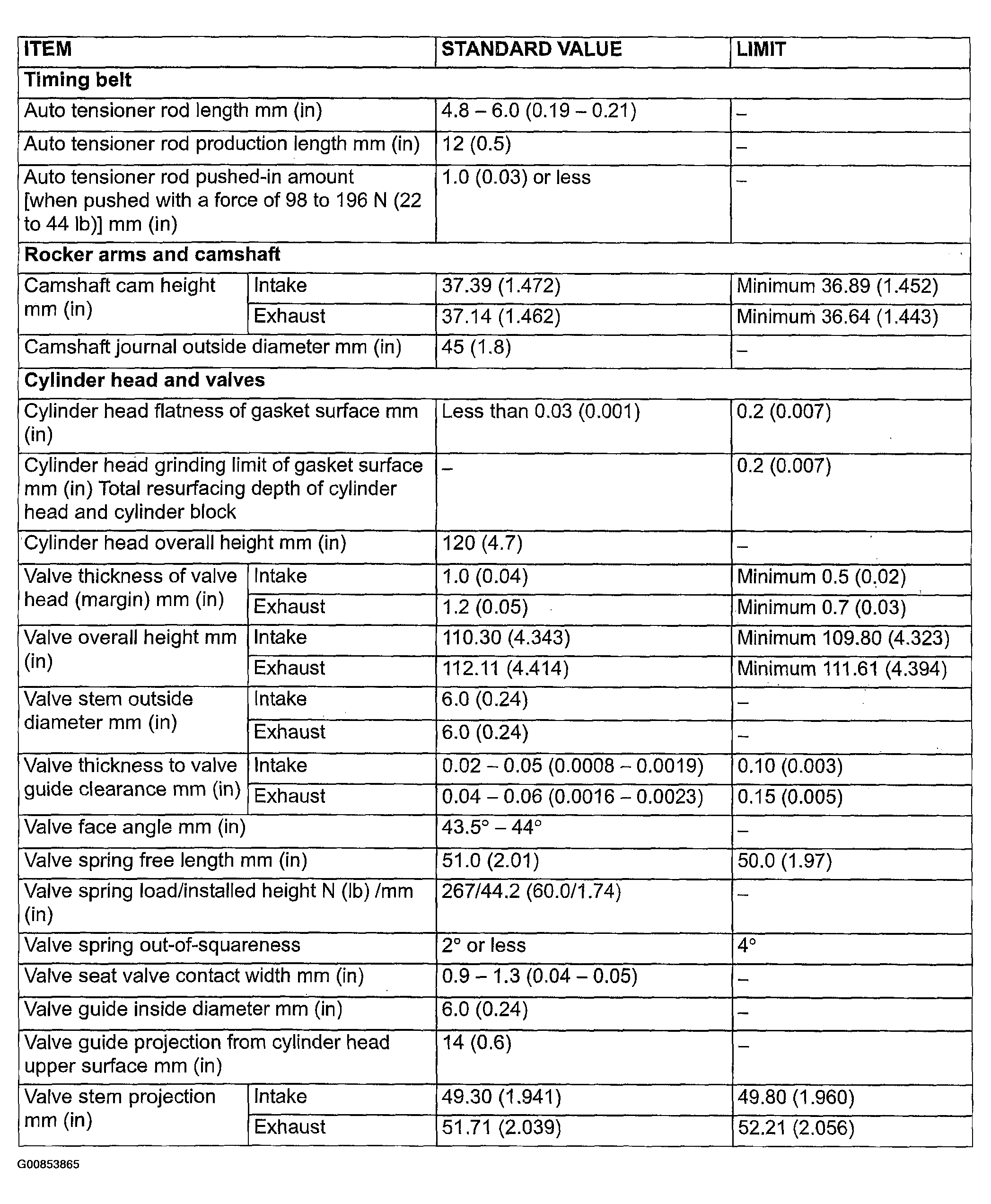

Fig 1: Service Specifications Chart (1 Of 3)
G00853865Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

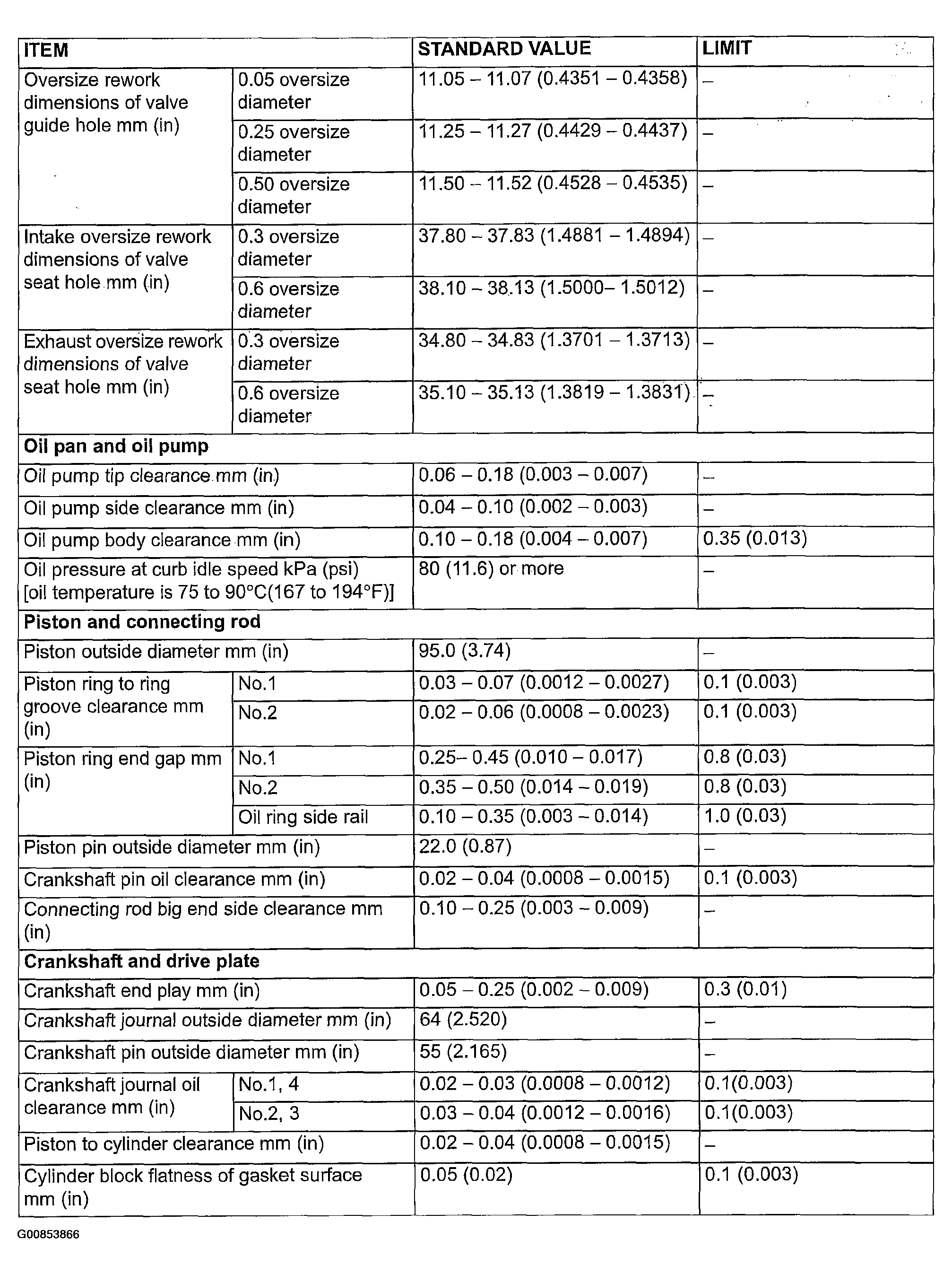

Fig 2: Service Specifications Chart (2 Of 3)
G00853866Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

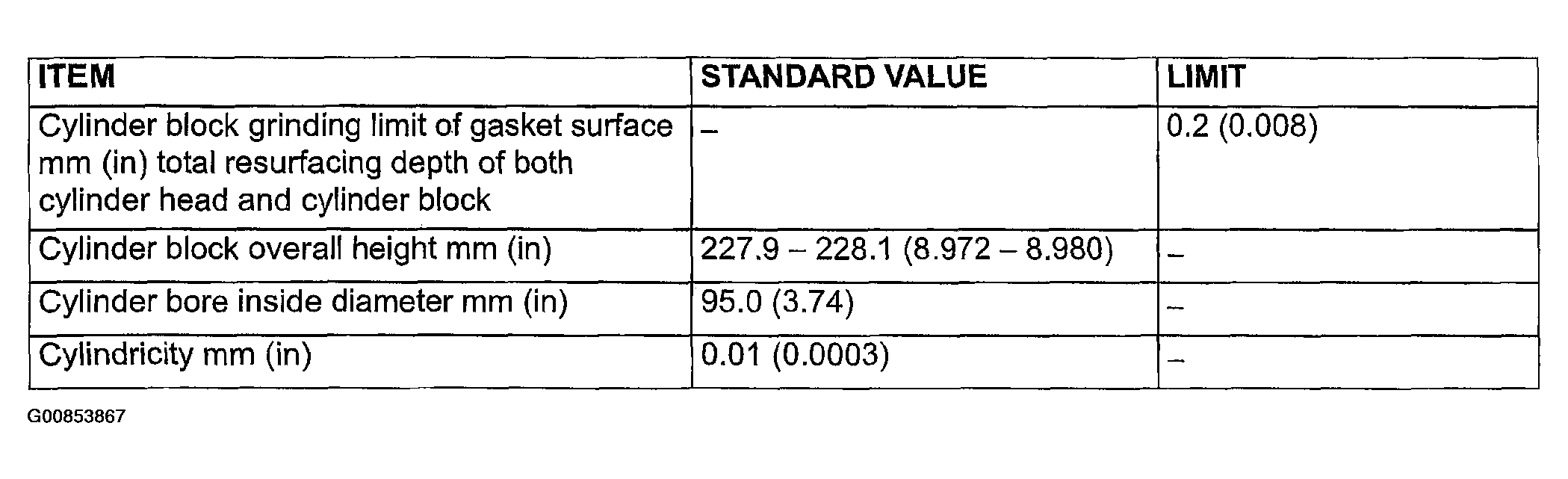

Fig 3: Service Specifications Chart (3 Of 3)
G00853867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
