Fuel Level Sensor Check

  1. Remove the rear seats. (Refer to FRONT & REAR SEAT ASSEMBLY .)
  2. Remove service holes and remove the fuel pump module and fuel level sensor (sub).

    Tightening torque: 1.5 +/- 0.5 N m (14 +/- 0.5 in-lb)

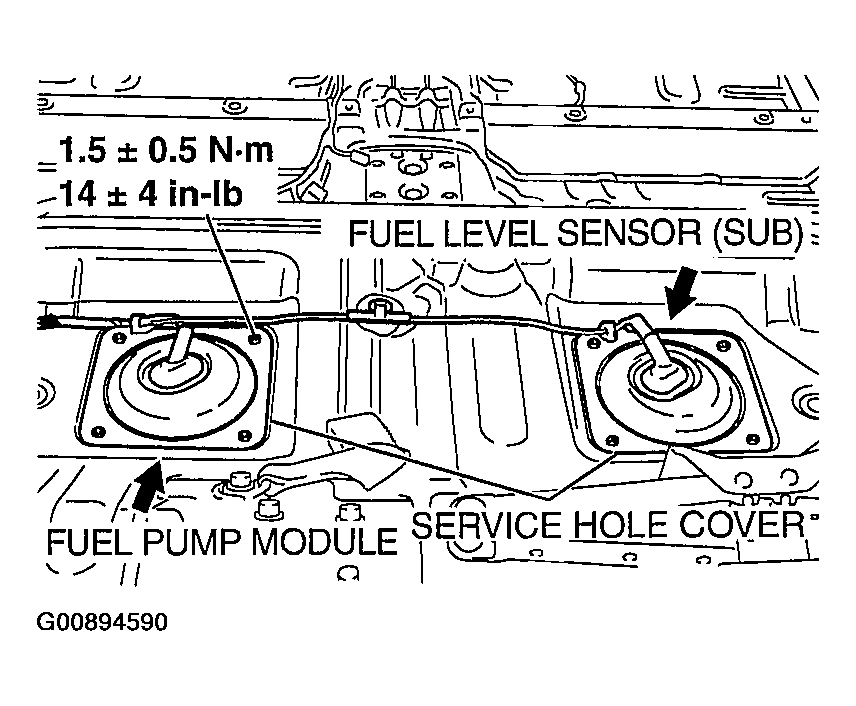

    Fig 1: Removing Service Holes, Fuel Pump Module And Fuel Level Sensor
    G00894590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
