INSPECTION PROCEDURE 3: TCL/ASC-ECU power supply system: Notes

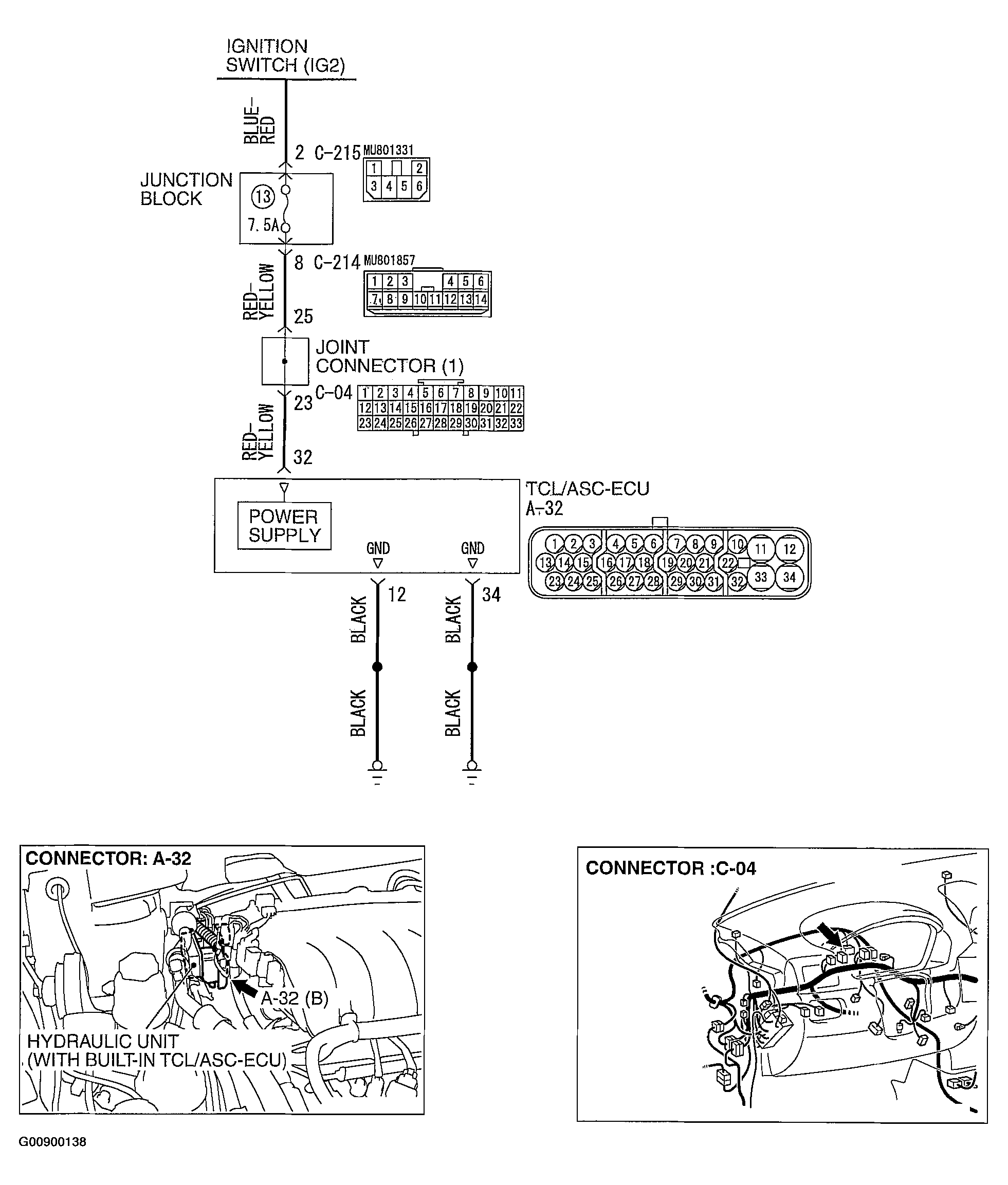

Fig 1: TCL/ASC-ECU Power Supply and Ground Circuit Diagram & Connector Identification
G00900138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

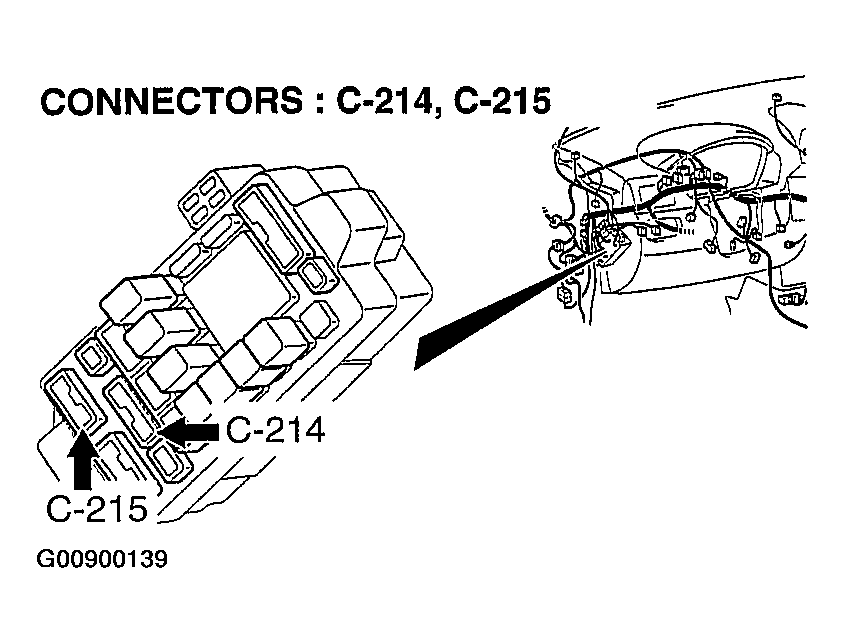

Fig 2: Identifying Connectors: C-214, C-215
G00900139Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
