< Abs/TCL/ASC DTC >

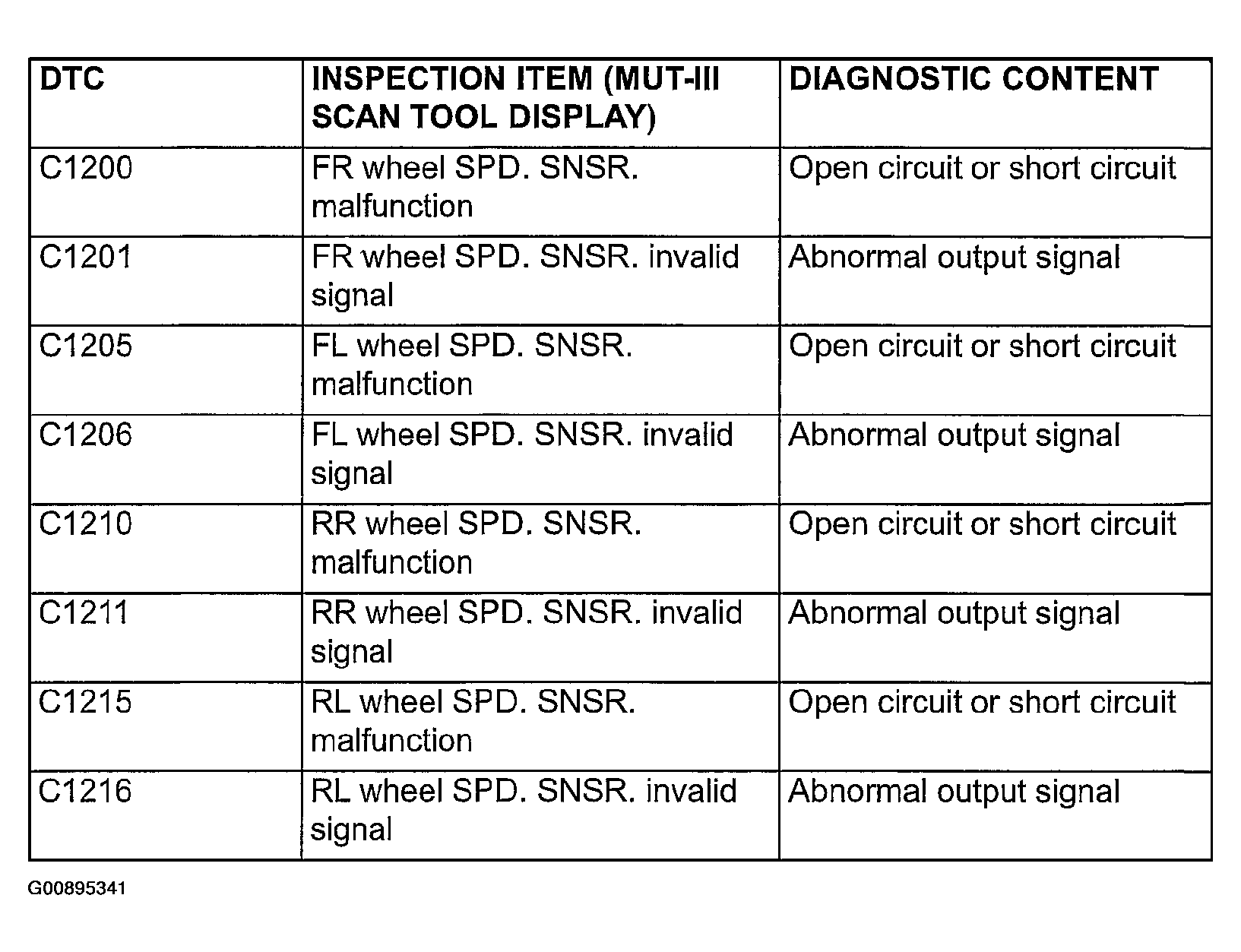

Fig 1: Diagnostic Trouble Code Chart (1 Of 3)
G00895341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

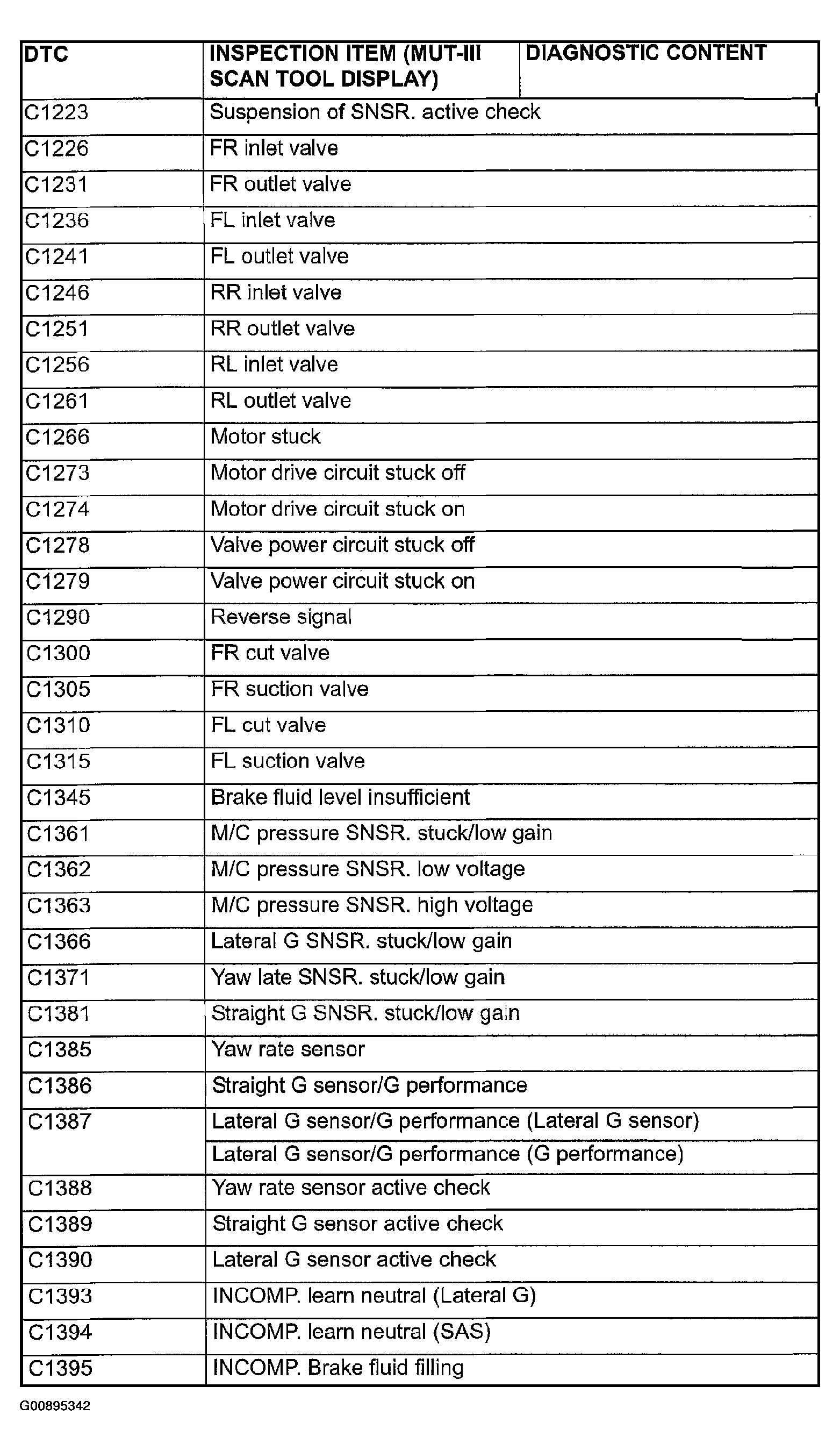

Fig 2: Diagnostic Trouble Code Chart (2 Of 3)
G00895342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

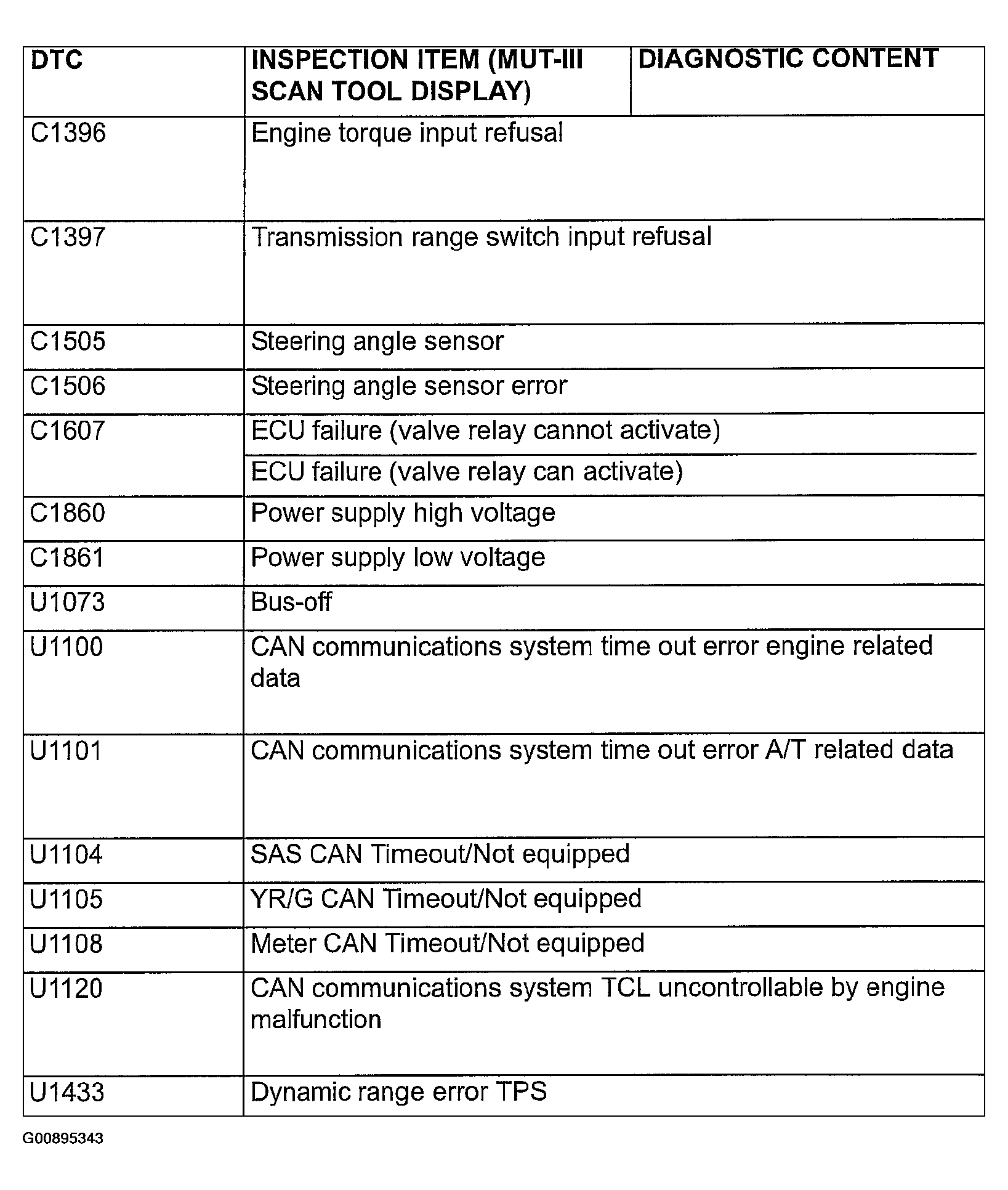

Fig 3: Diagnostic Trouble Code Chart (3 Of 3)
G00895343Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
