Actuator Test Specifications

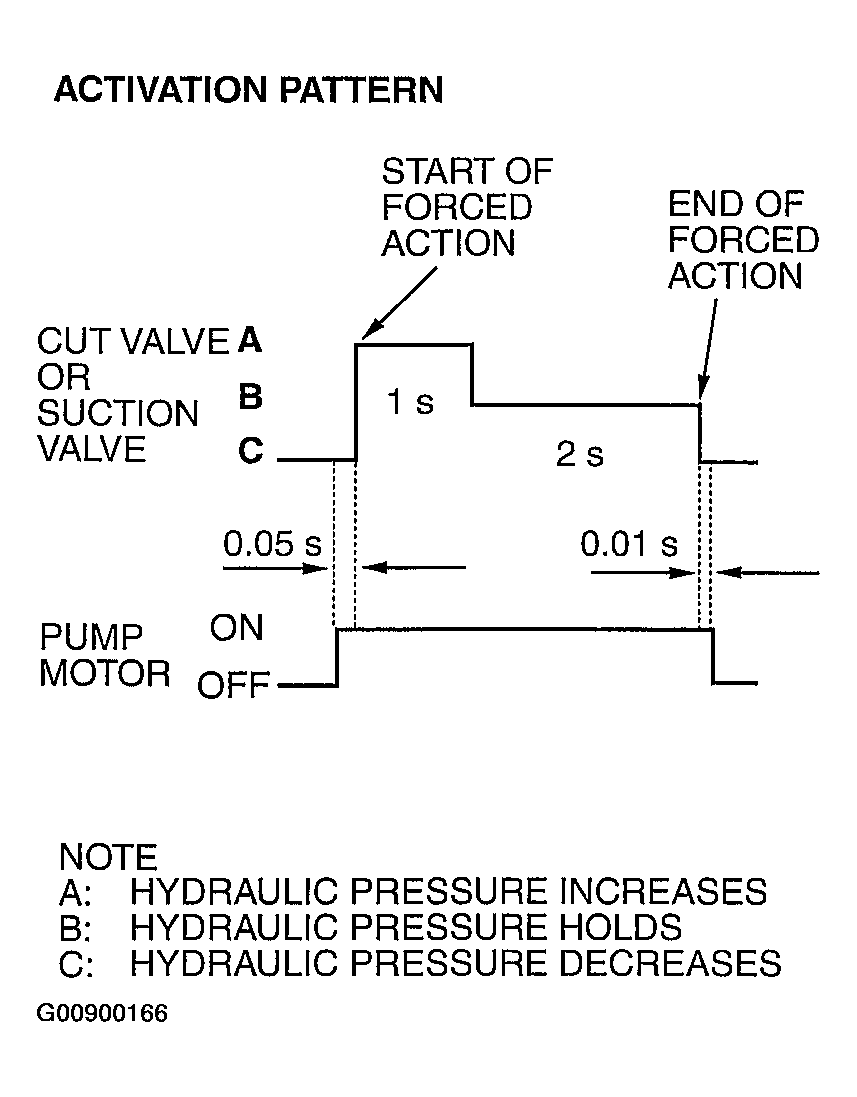

Fig 1: Actuator Test Specifications

G00900166

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
