Indicator Light Operation Pattern
Indicator Light Operation Pattern

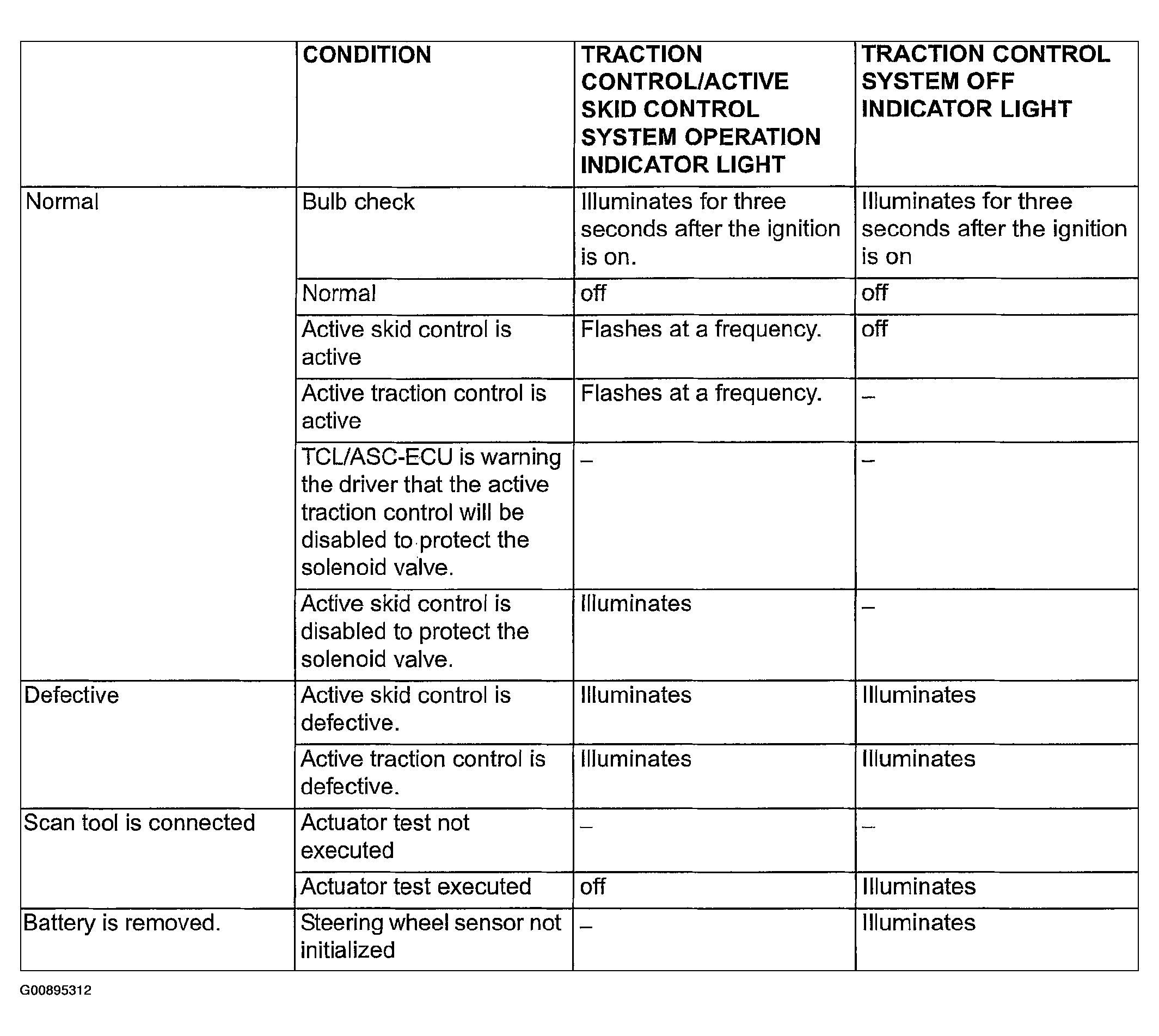

Fig 1: Traction Control System Off Indicator Light Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
