When The Abs Fluid Pressure Is Holding

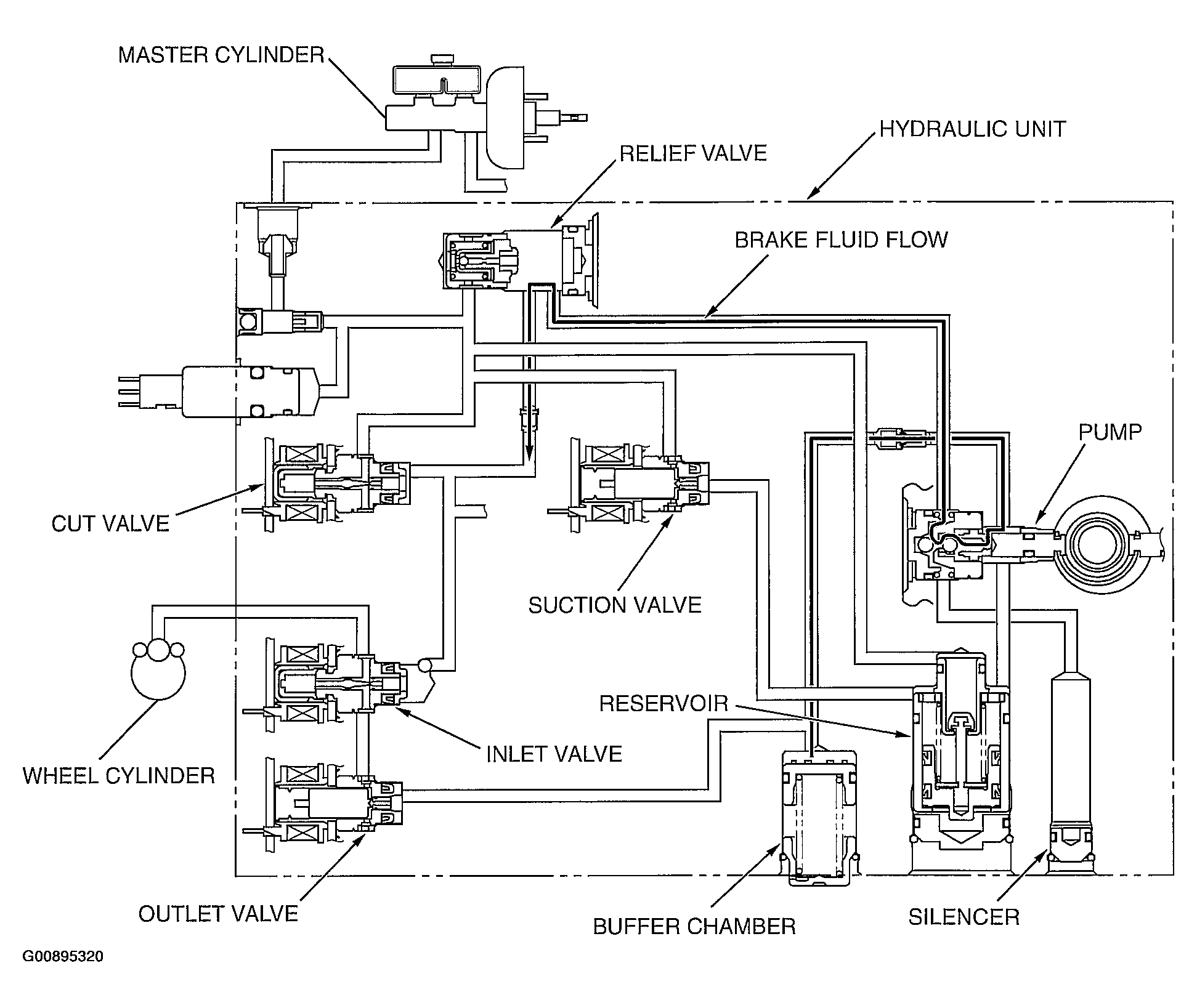

Fig 1: ABS Fluid Pressure Is Holding Diagram
G00895320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The system closes the inlet solenoid valve and the outlet solenoid valve to hold the brake fluid pressure in the wheel cylinders.

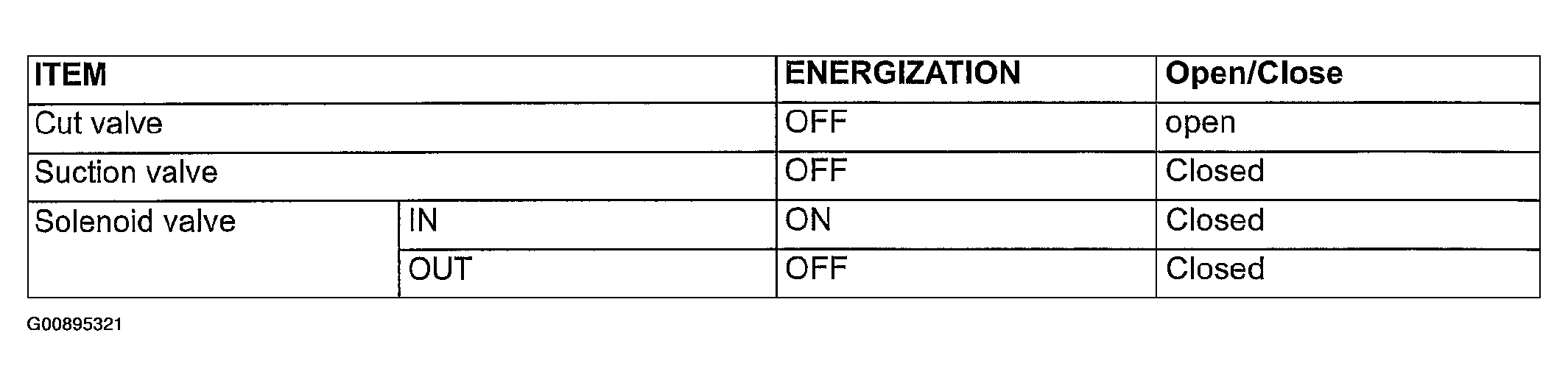

Fig 2: Status Of Operation Valve Specification
G00895321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
