Removal And Installation: Notes

NOTE:
  • The ABS-ECU is integrated in the hydraulic unit.
  • For vehicles with ASC, refer to  HYDRAULIC UNIT  .

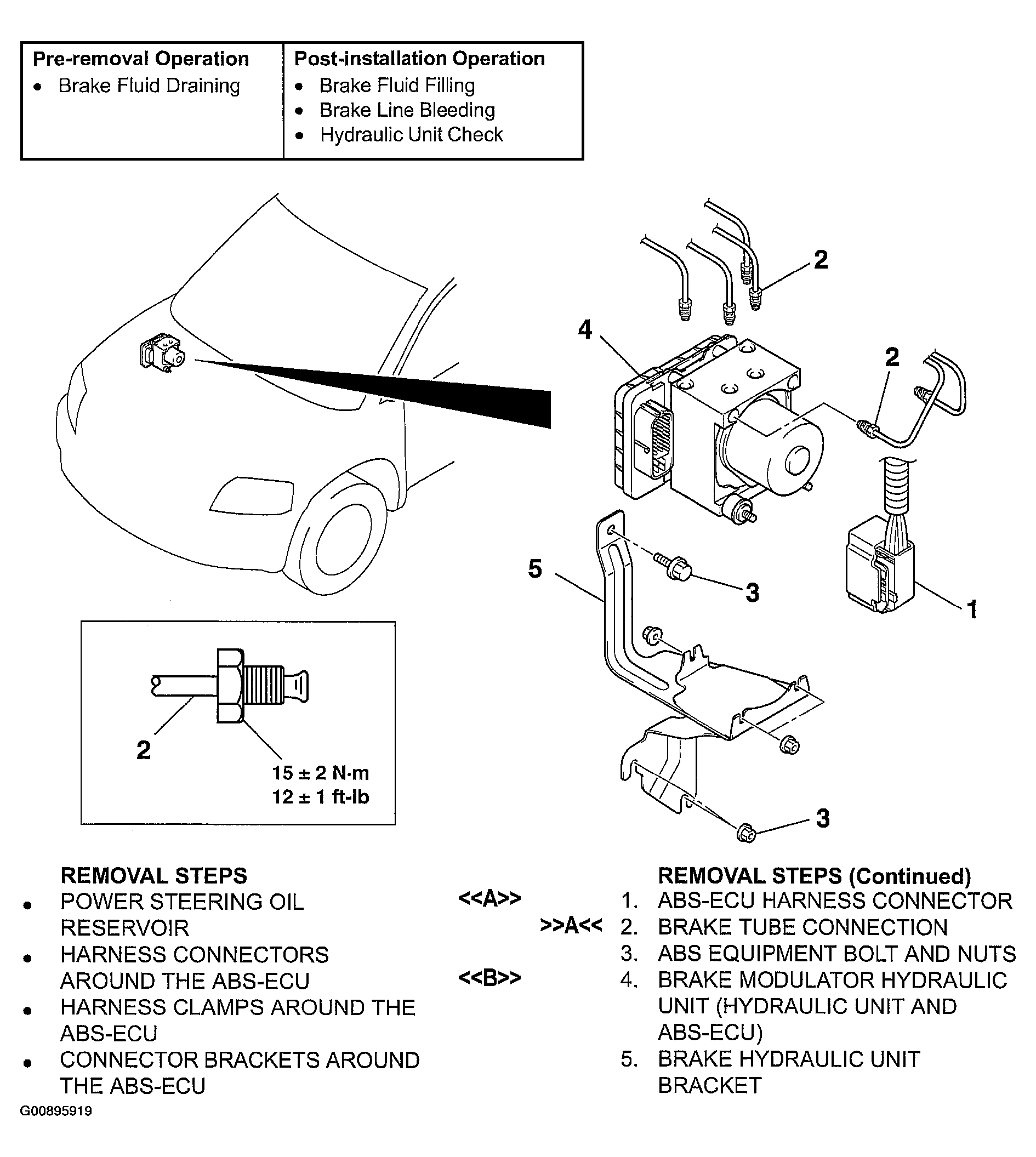

Fig 1: Removing & Installing Hydraulic Unit
G00895919Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
