Engine Control Module (ECM) Connector C-60 Connector End View (2.4L M/T)

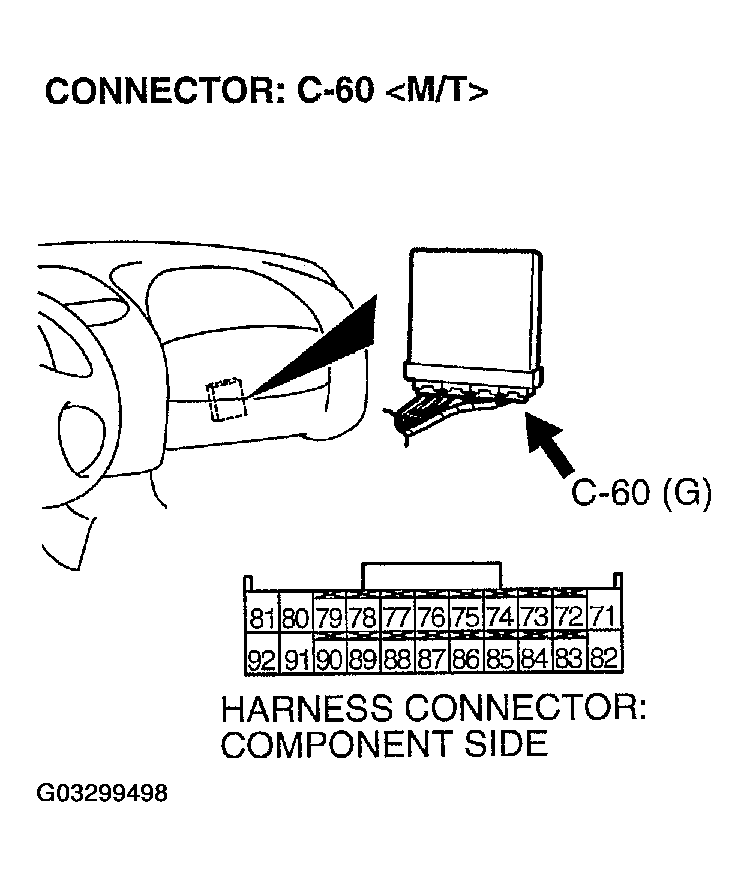

Fig 1: Engine Control Module (ECM) Connector C-60 Connector End View (2.4L M/T)

G03299498

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
