DTC 38: Stoplight Switch System: Notes

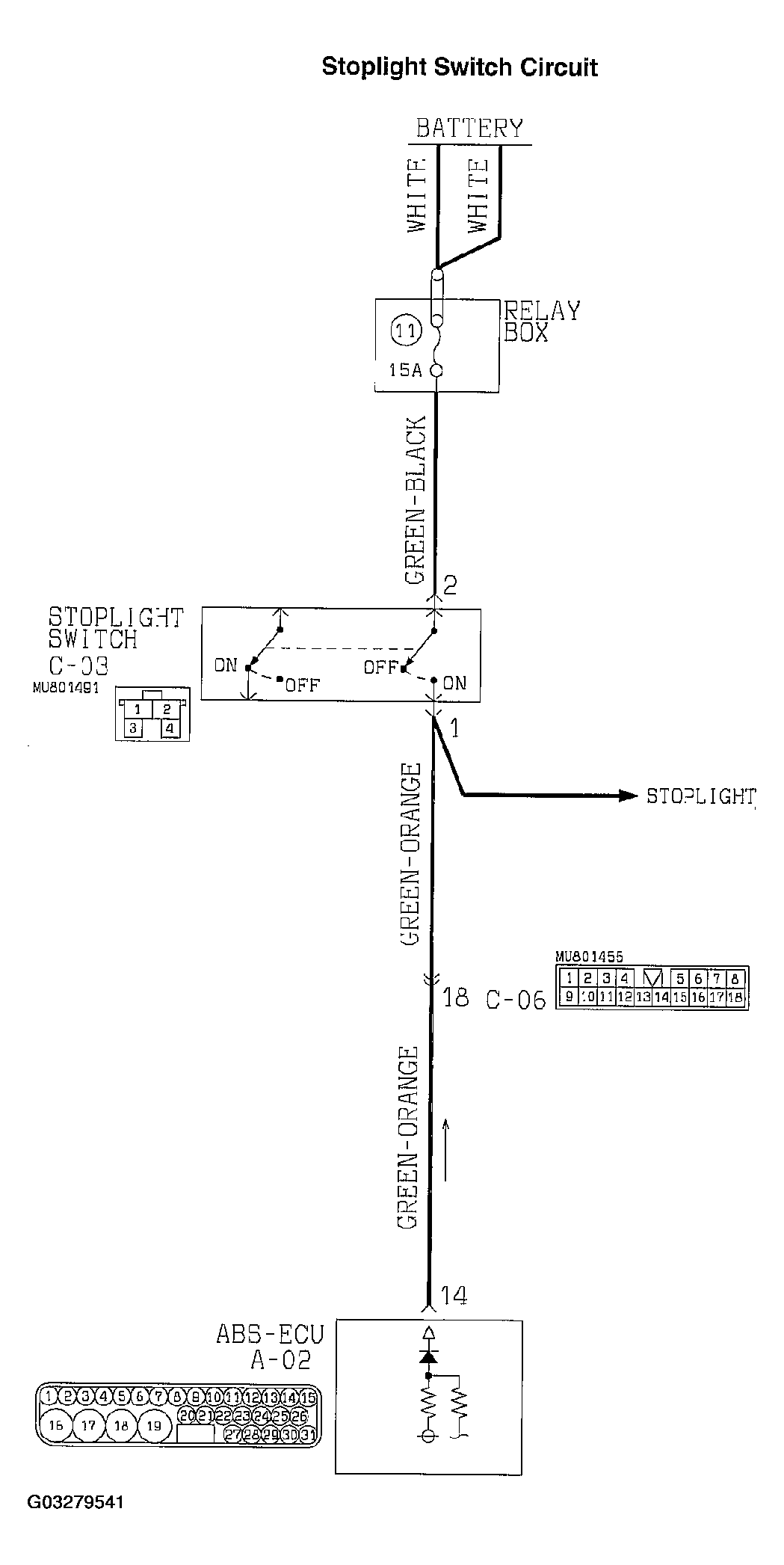

Fig 1: Stoplight Switch Circuit
G03279541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

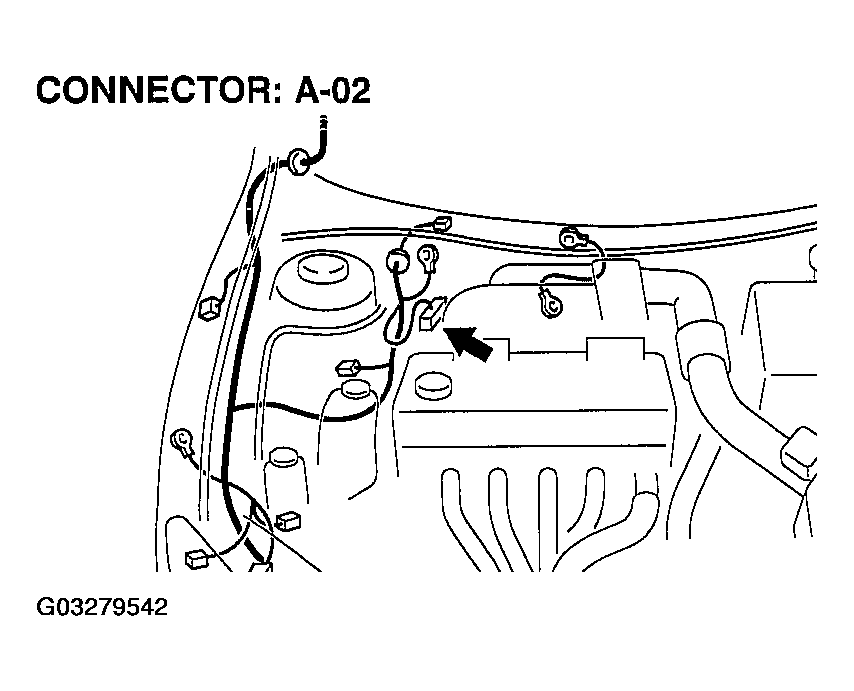

Fig 2: Identifying Connector A-02
G03279542Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

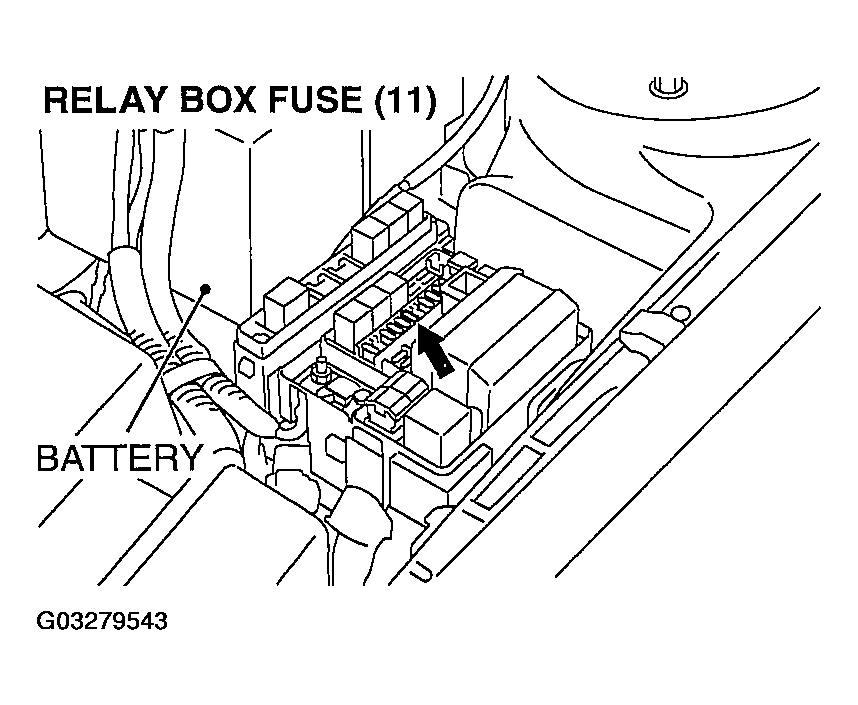

Fig 3: Identifying Relay Box Fuse
G03279543Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

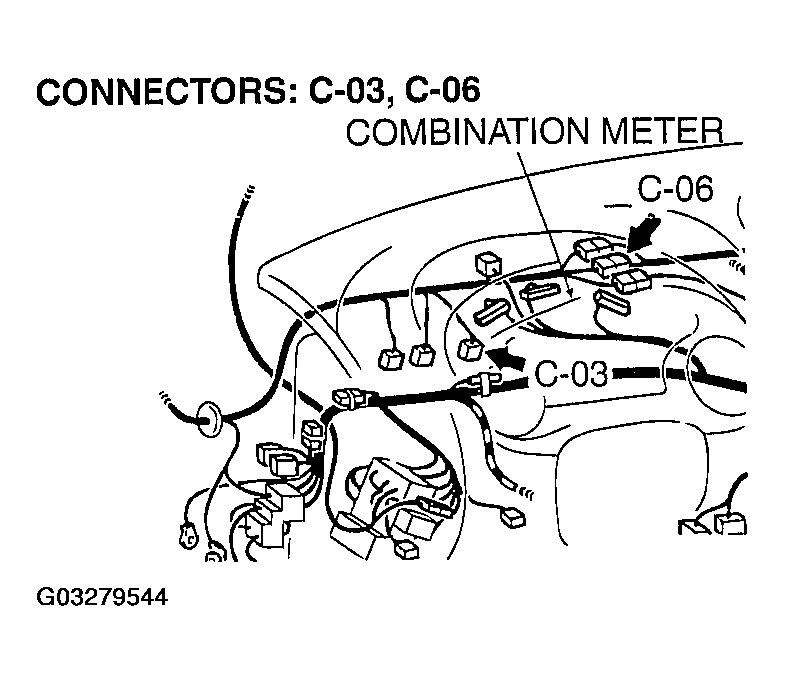

Fig 4: Identifying Connector C-03 And C-06
G03279544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
