Power Seat Switch Continuity Check

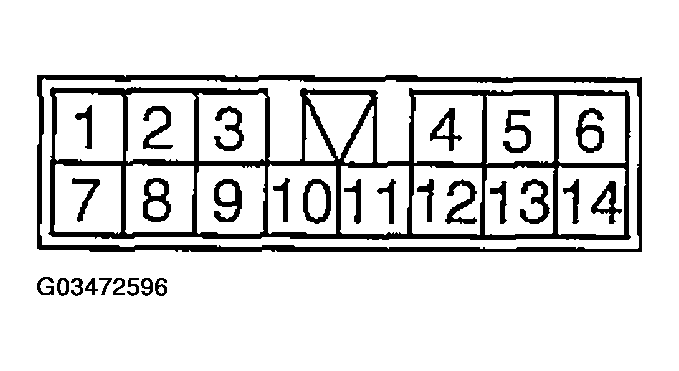

Fig 1: Identifying Connector Terminal
G03472596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SWITCH CONNECTION SPECIFICATION

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
Slide switch Forward 7-14, 8-13 Less than 2 ohms
Back ward 8-14, 7-13 Less than 2 ohms
Reclining switch Forward 4-14, 3-13 Less than 2 ohms
Back ward 3-14, 4-13 Less than 2 ohms
Front height switch Up 5-14, 6-13 Less than 2 ohms
Down 6-14, 5-13 Less than 2 ohms
Rear height switch Up 2-14, 1-13 Less than 2 ohms
Down 1-14, 2-13 Less than 2 ohms
