Home >> Mitsubishi >> 2004 >> Eclipse RS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle On-Vehicle Service >> Transaxle Control >> Disassembly And Assembly >> < Vehicles Without Sport Mode>

< Vehicles Without Sport Mode>

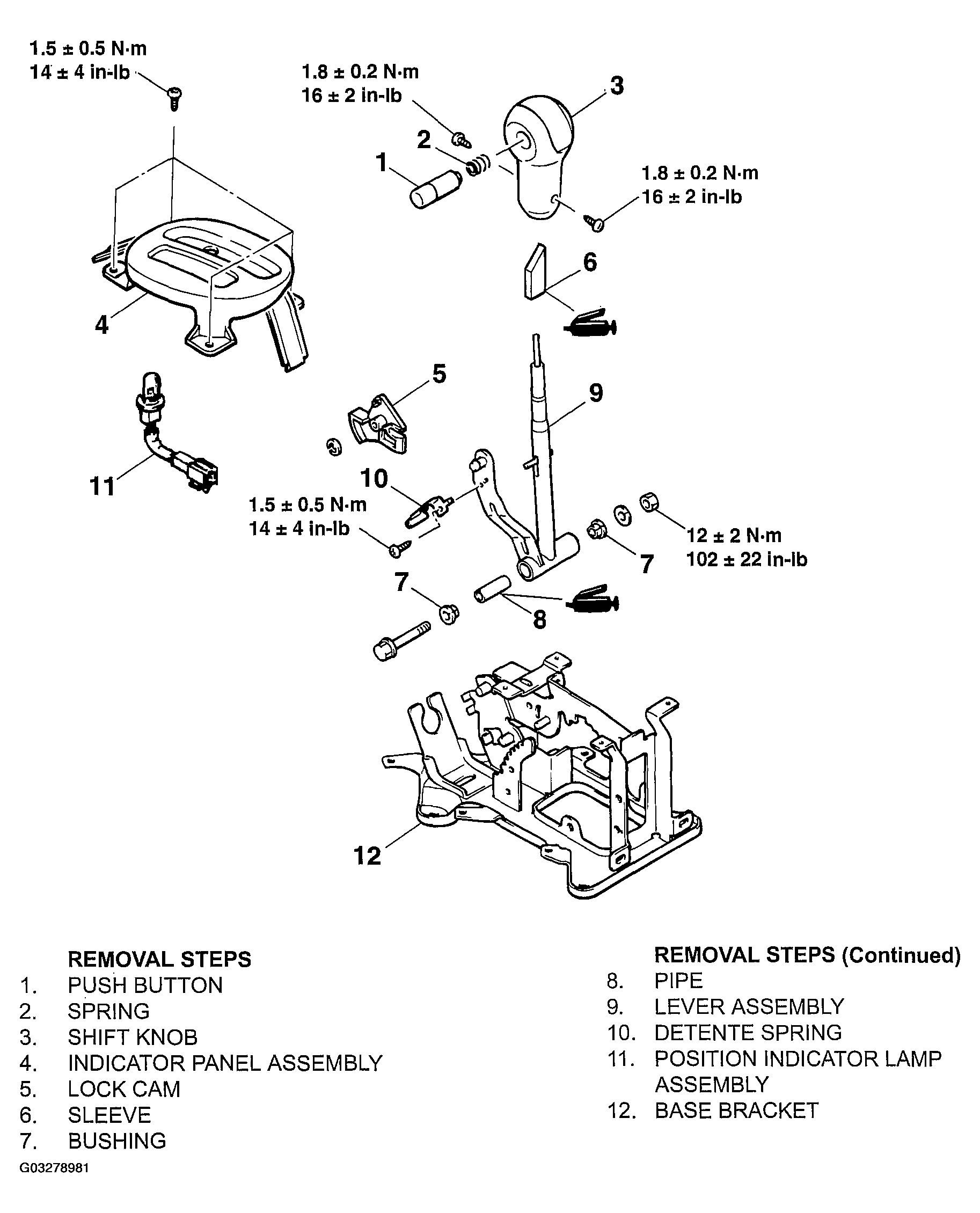

Fig 1: Disassembly And Assembly Of Selector Lever (Vehicles Without Sport Mode)

G03278981

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
