< Vehicles With Sport Mode>

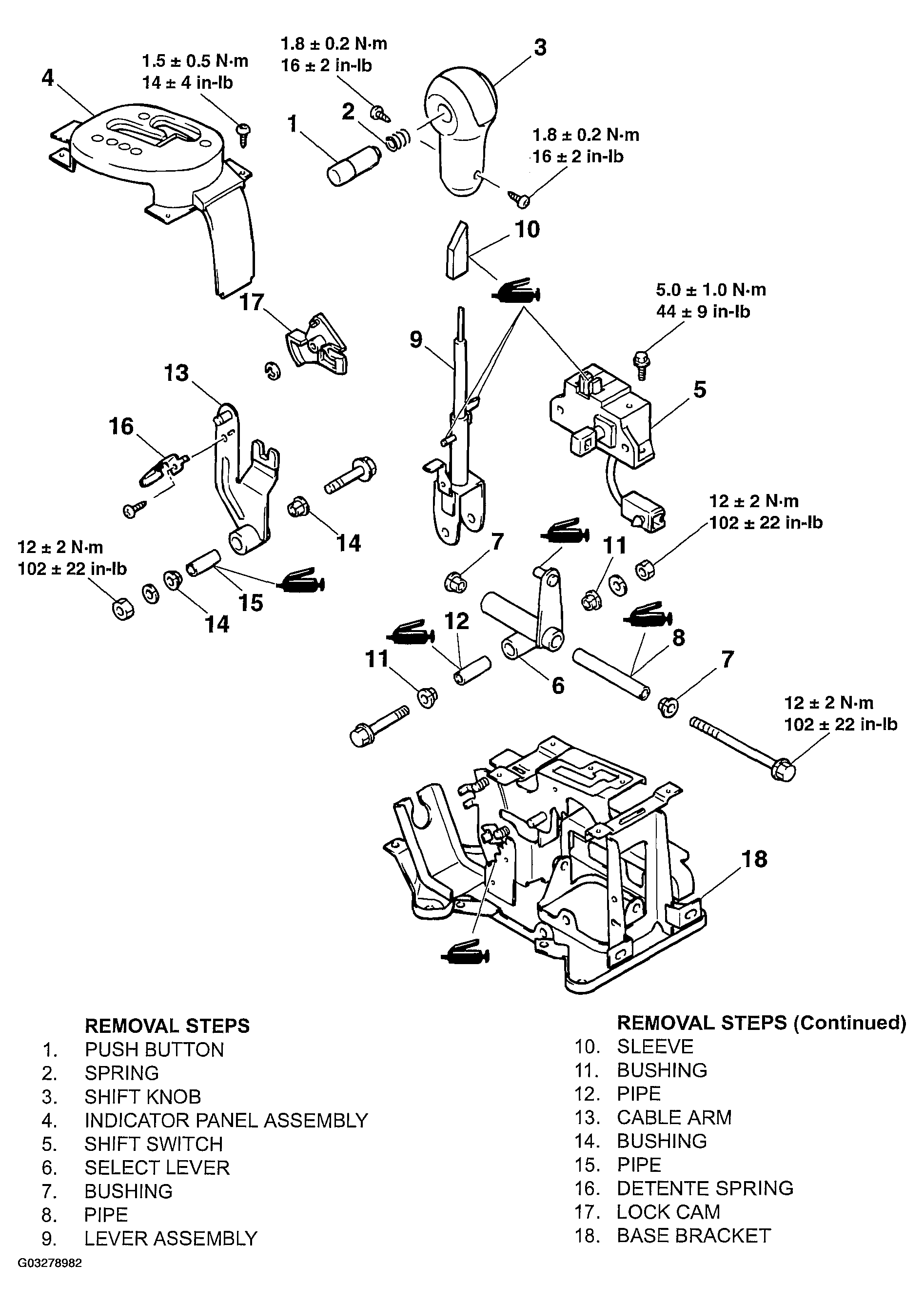

Fig 1: Disassembly And Assembly Of Selector Lever (Vehicles With Sport Mode)

G03278982

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
