< Vehicles without sport mode>

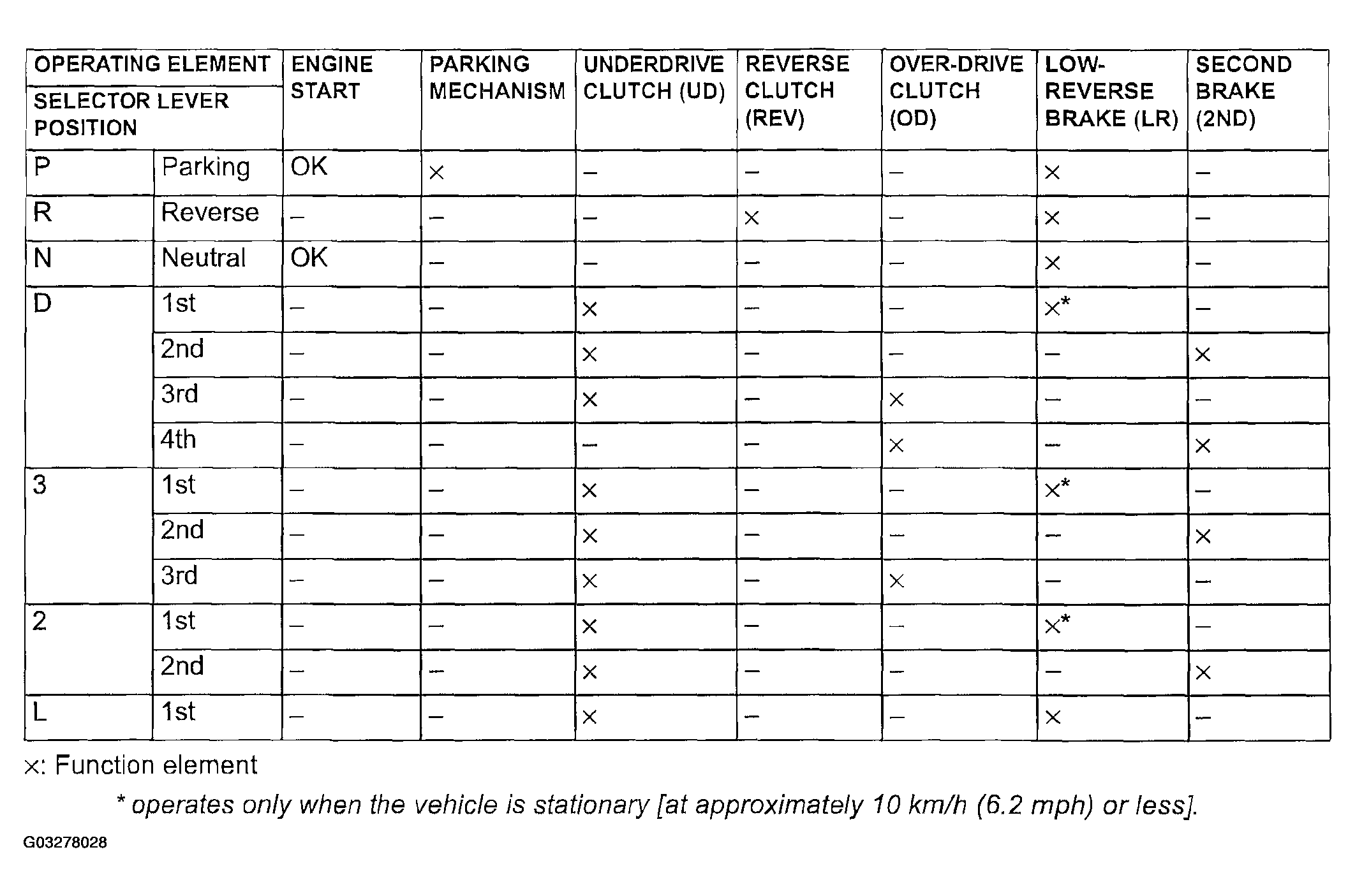

Fig 1: Transaxle Function Element chart (Vehicles without sport mode>)
G03278028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

x: Function element

NOTE: * operates only when the vehicle is stationary [at approximately 10 km/h (6.2 mph) or less].
