Inspection Procedure Using An Oscilloscope

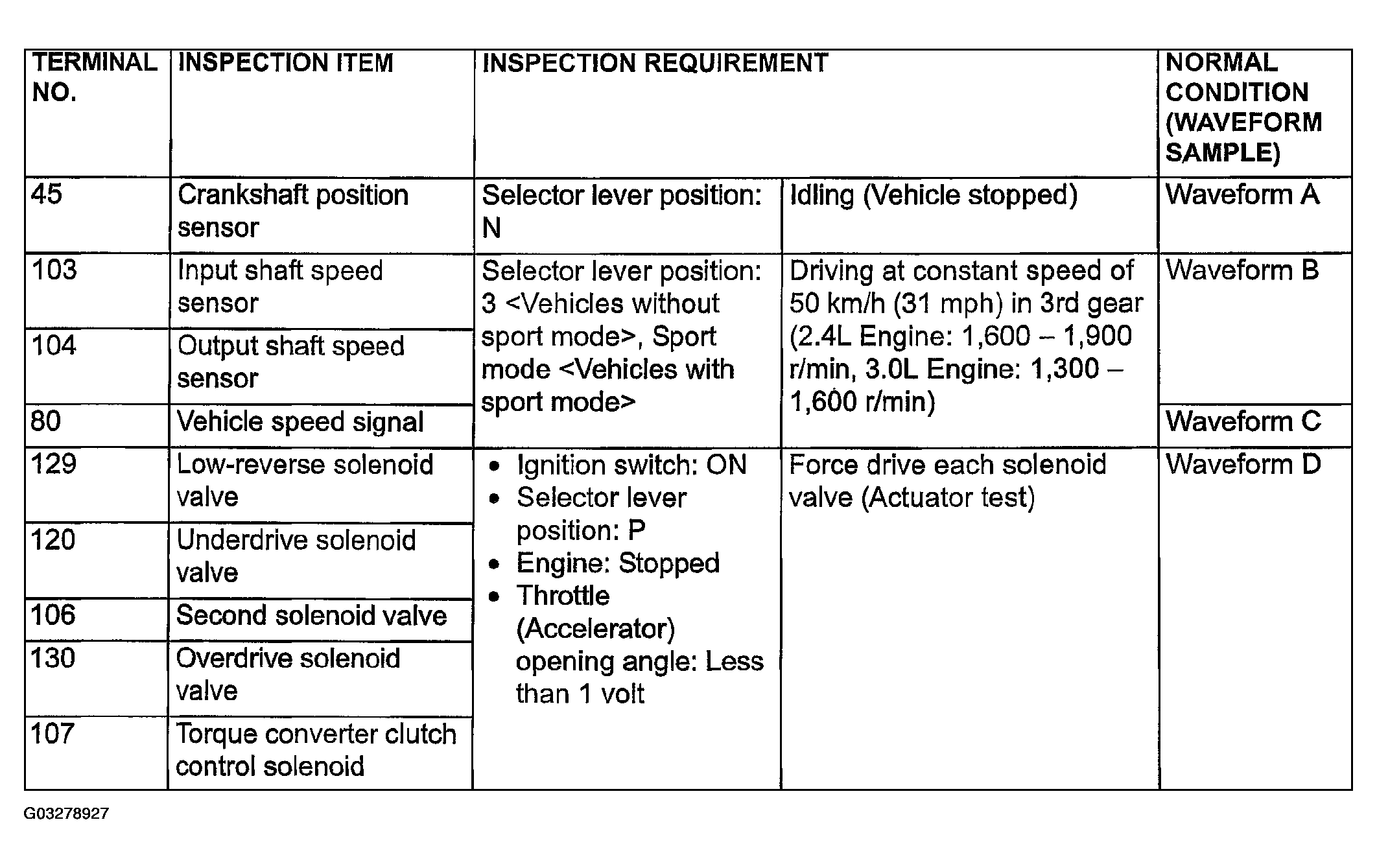

Fig 1: Oscilloscope Inspection Procedure Chart
G03278927Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

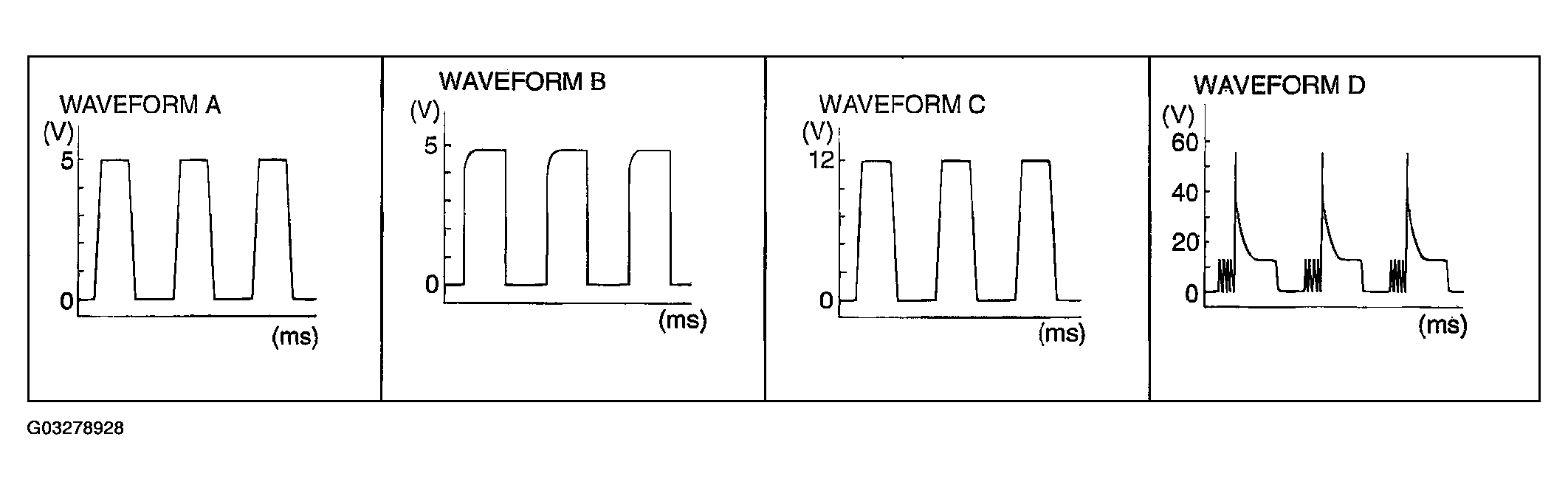

Fig 2: Waveform Samples
G03278928Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
