TP Sensor System Circuit

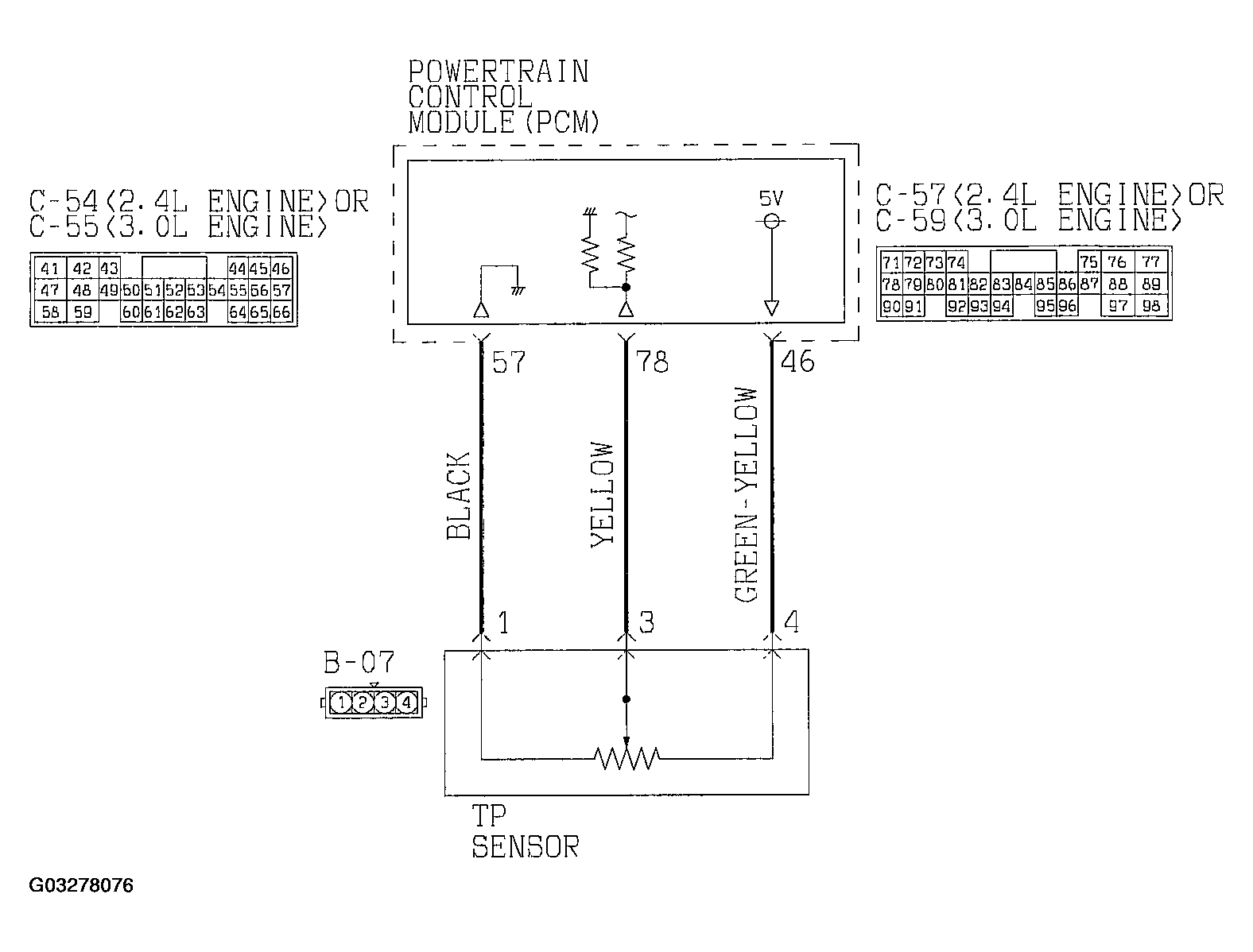

Fig 1: TP Sensor System Circuit
G03278076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

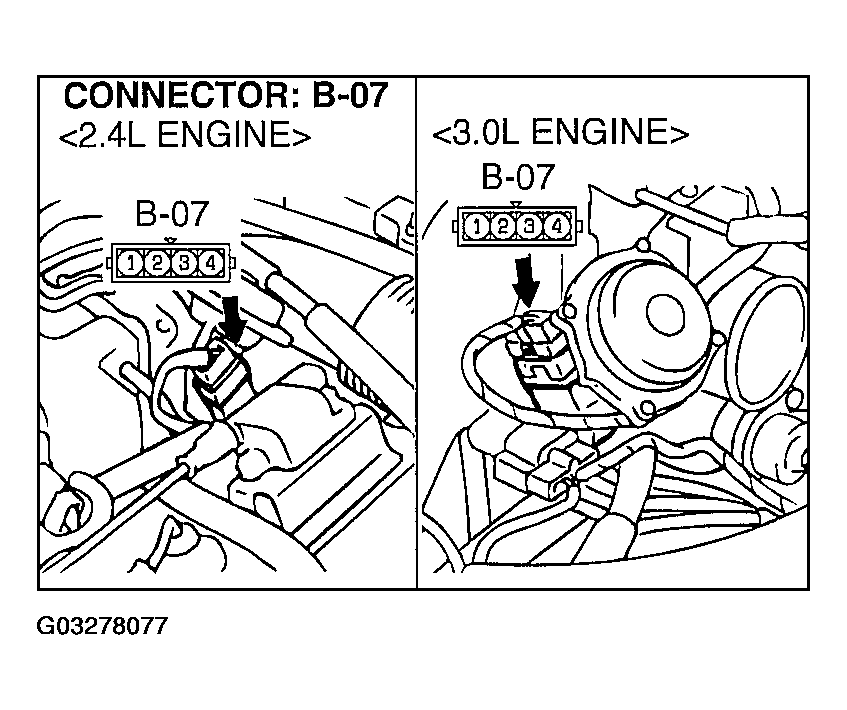

Fig 2: Identifying Connector Of TP Sensor System Circuit (1 Of 2)
G03278077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

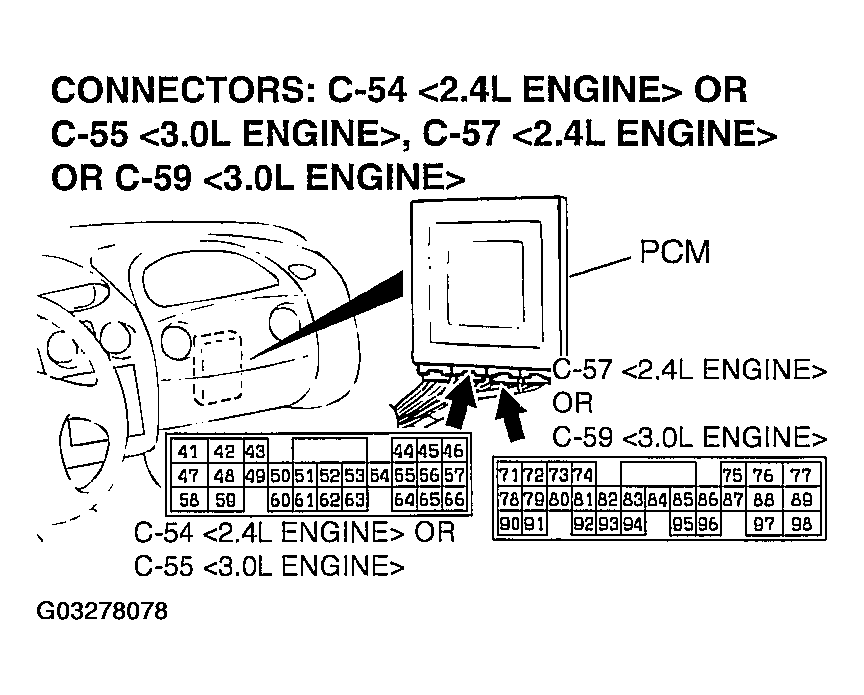

Fig 3: Identifying Connector Of TP Sensor System Circuit (2 Of 2)
G03278078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
