Actuator Test Reference Table

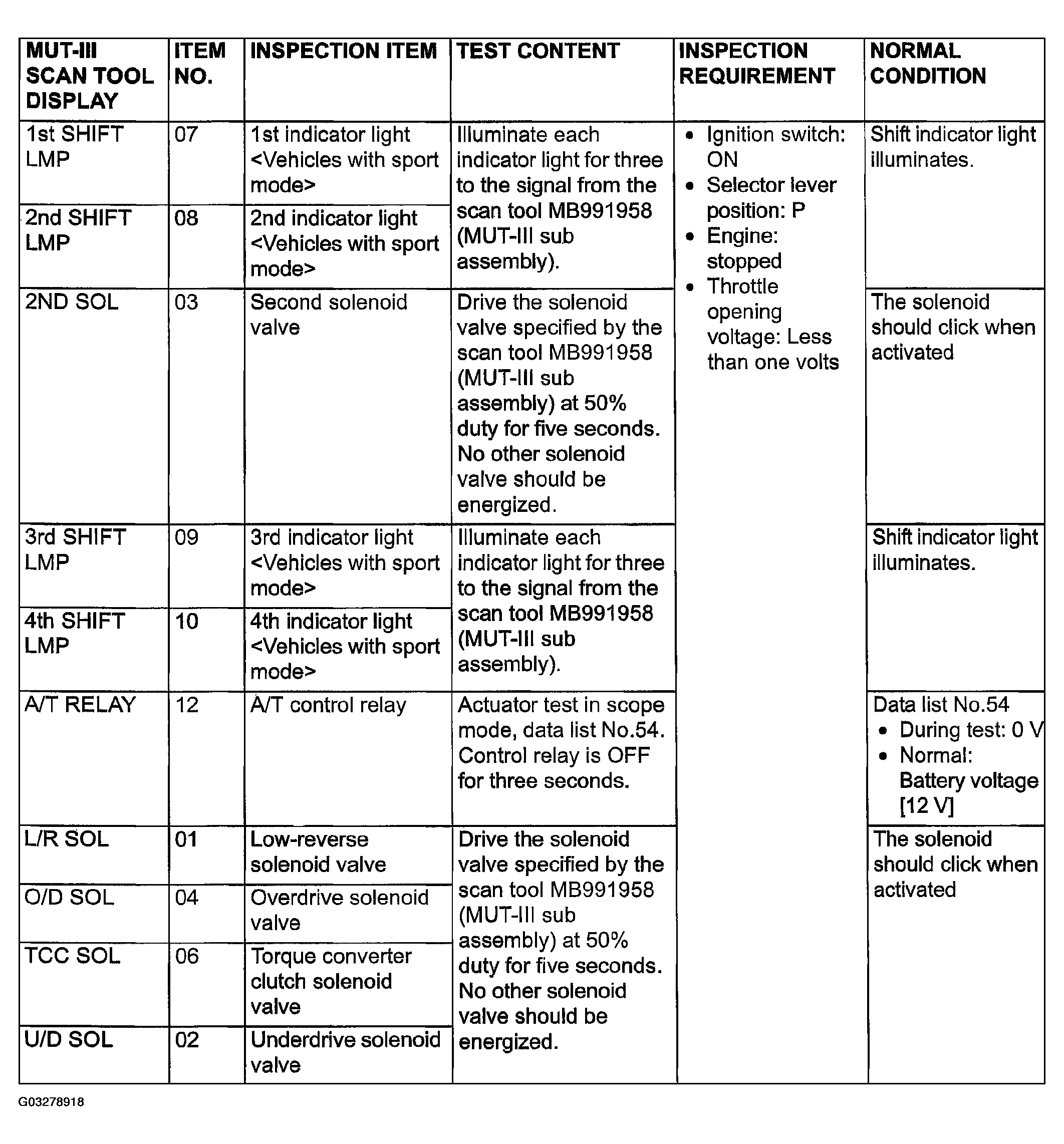

Fig 1: Actuator Test Reference Chart

G03278918

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
