Disassembly And Assembly: Notes

NUMBER OF CLUTCH DISCS AND PLATES

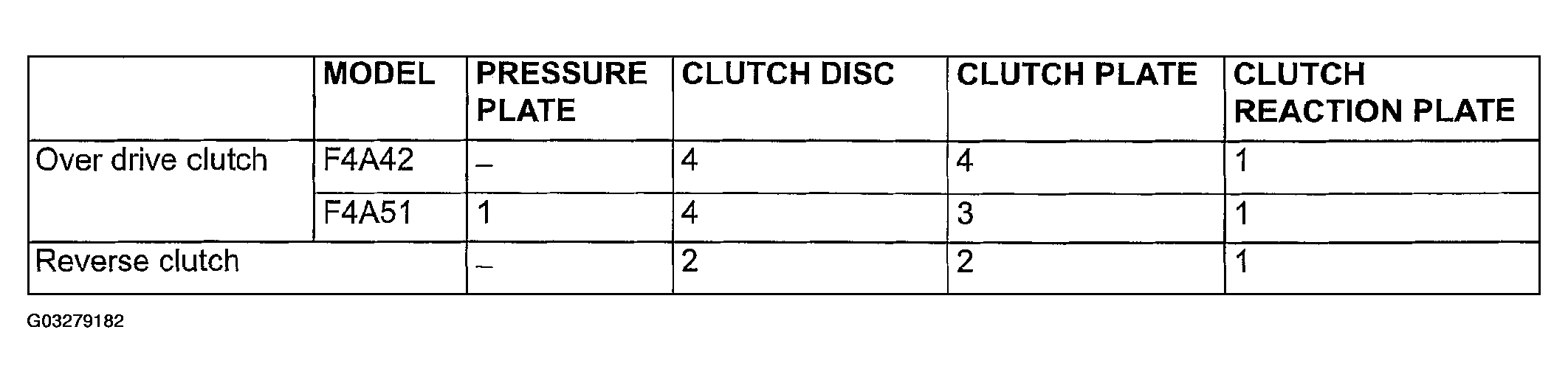

Fig 1: Clutch Discs And Plates Number Chart
G03279182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

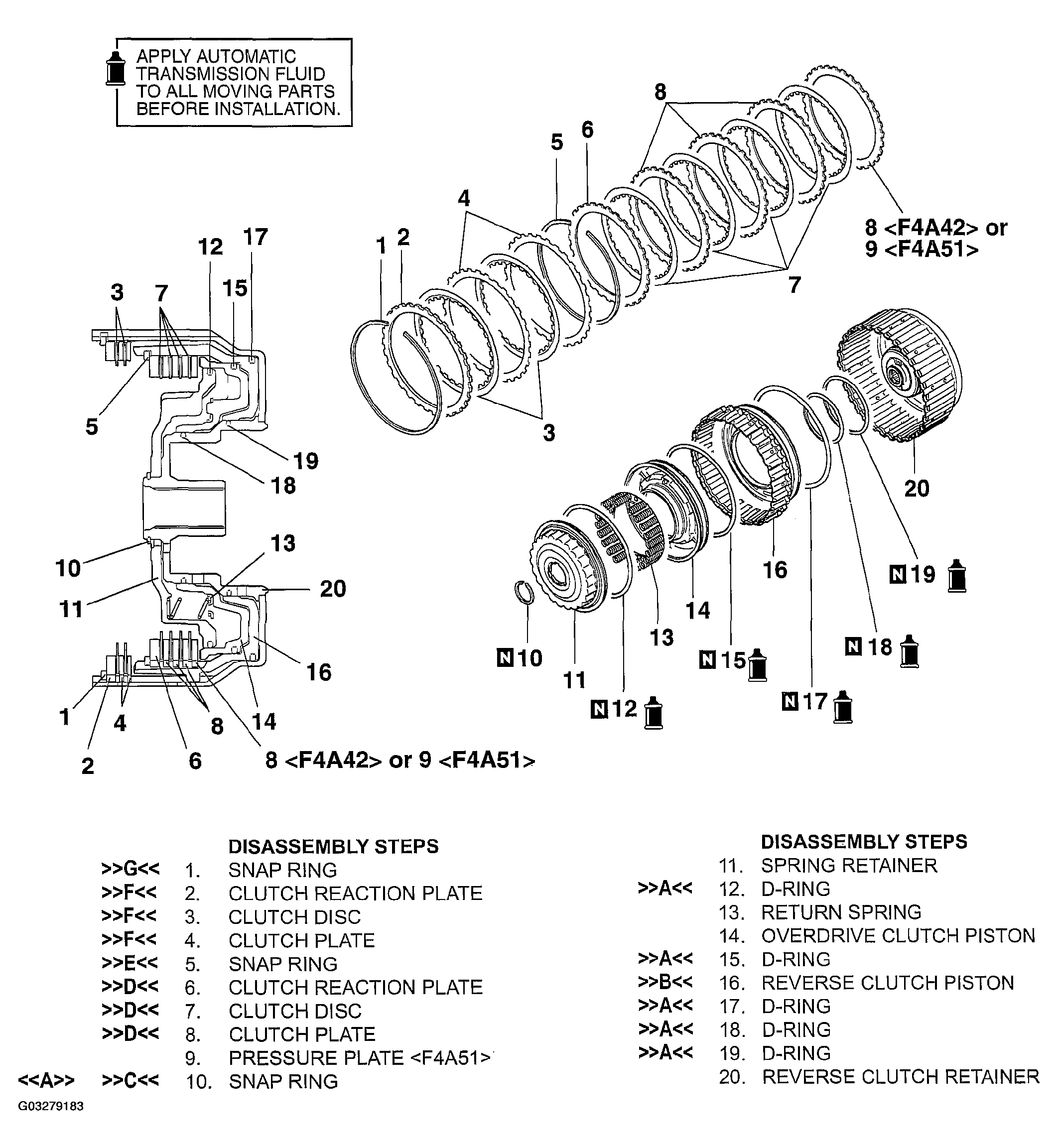

Fig 2: Disassembly And Assembly Of Reverse And Overdrive Clutch
G03279183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
