>>A<< Shift Lock Cable (Selector Lever Side) Installation

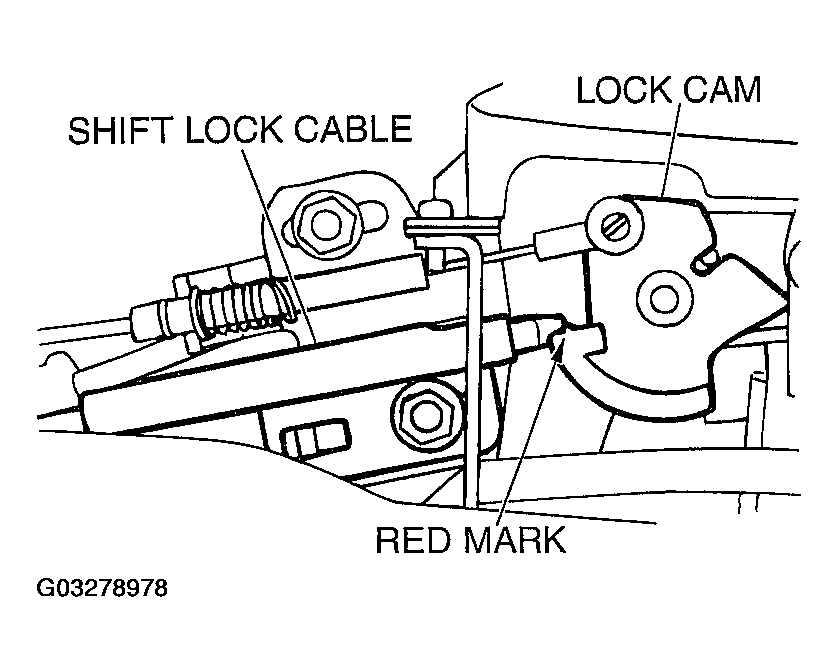

Fig 1: Installing Shift Lock Cable (Selector Lever Side)
G03278978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Shift the selector lever to the "P" position.
  2. Fasten the shift lock cable at the position where the end of the shift lock cable is above the red line on the lock cam.
