>> A << Shift Lock Cable Unit Installation

  1. Selector lever to"P" position.
  2. Turn the ignition key to "LOCK" (OFF) position.
  3. Install the shift lock cable unit rod to the selector lever assembly lock cam, and tighten the shift lock cable unit installation bolt to the specified torque.

    Tightening torque: 5.0 +/- 1.0 N.m (44 +/- 9 in-lb)

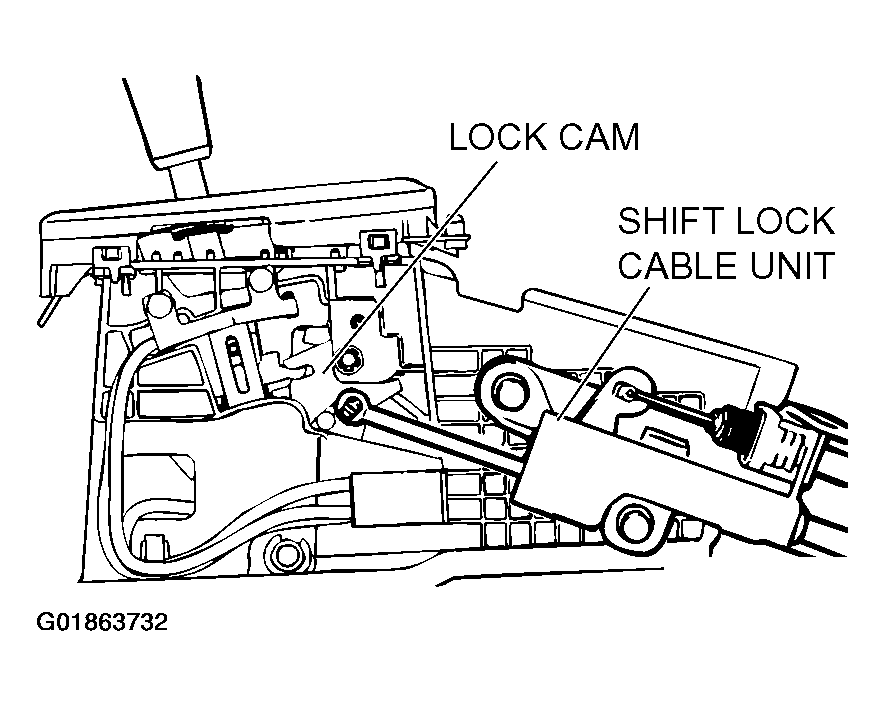

    Fig 1: Installing Shift Lock Cable Unit
    G01863732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Check the selector lever operation. (Refer to SELECTOR LEVER OPERATION CHECK )
