DTC P0622: Generator Fr Terminal Circuit Malfunction: Operation

The PCM (terminal No. 54) applies a battery voltage into the generator FR (terminal No. 4) via resistance inside the unit. See Fig 1 .

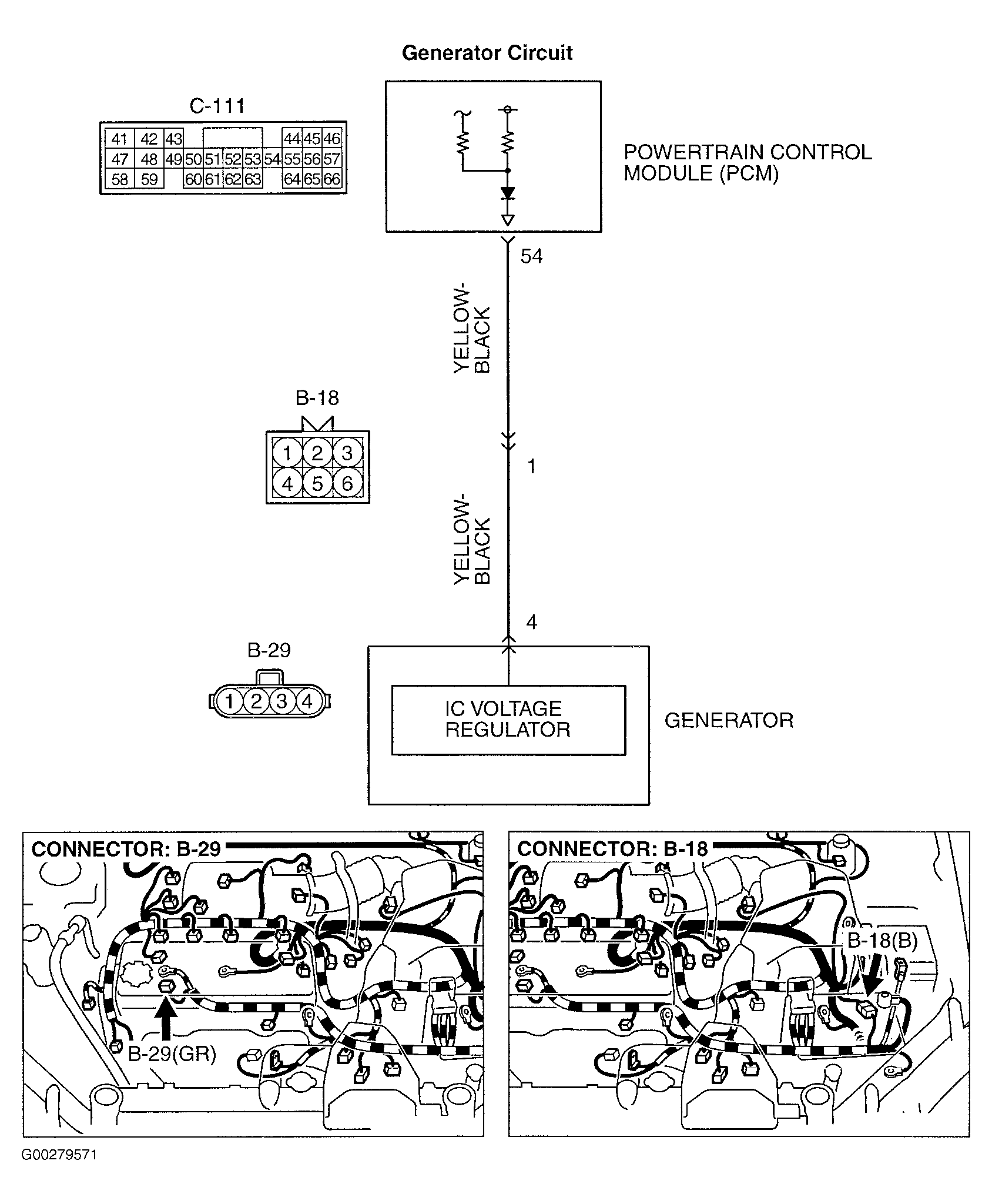

Fig 1: Generator FR Terminal Circuit Wiring Diagram
G00279571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
