Auto-Cruise Control System
>>
Auto-Cruise Control System Diagnosis
>>
Symptom Chart
Symptom Chart

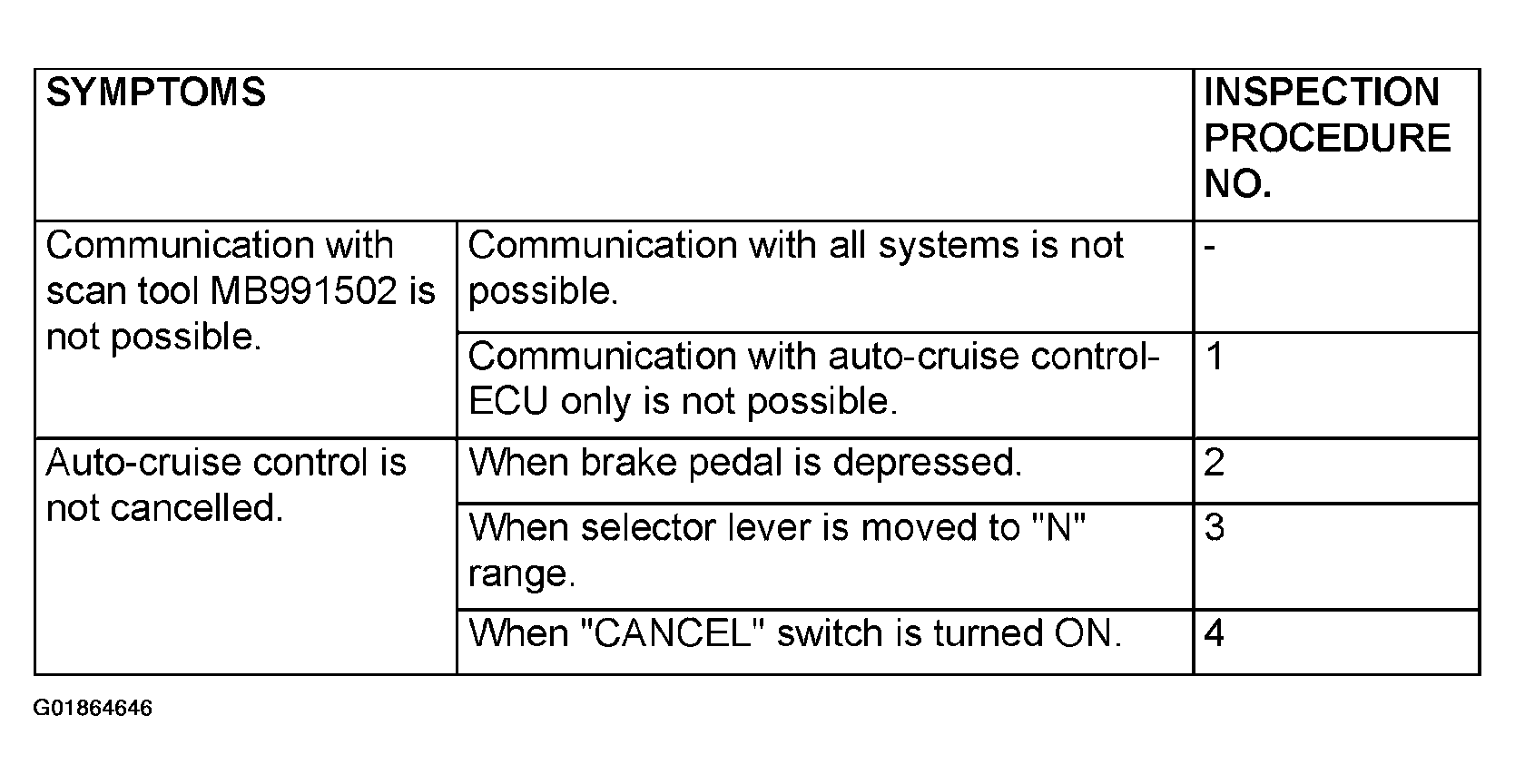

Fig 1: Symptom Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

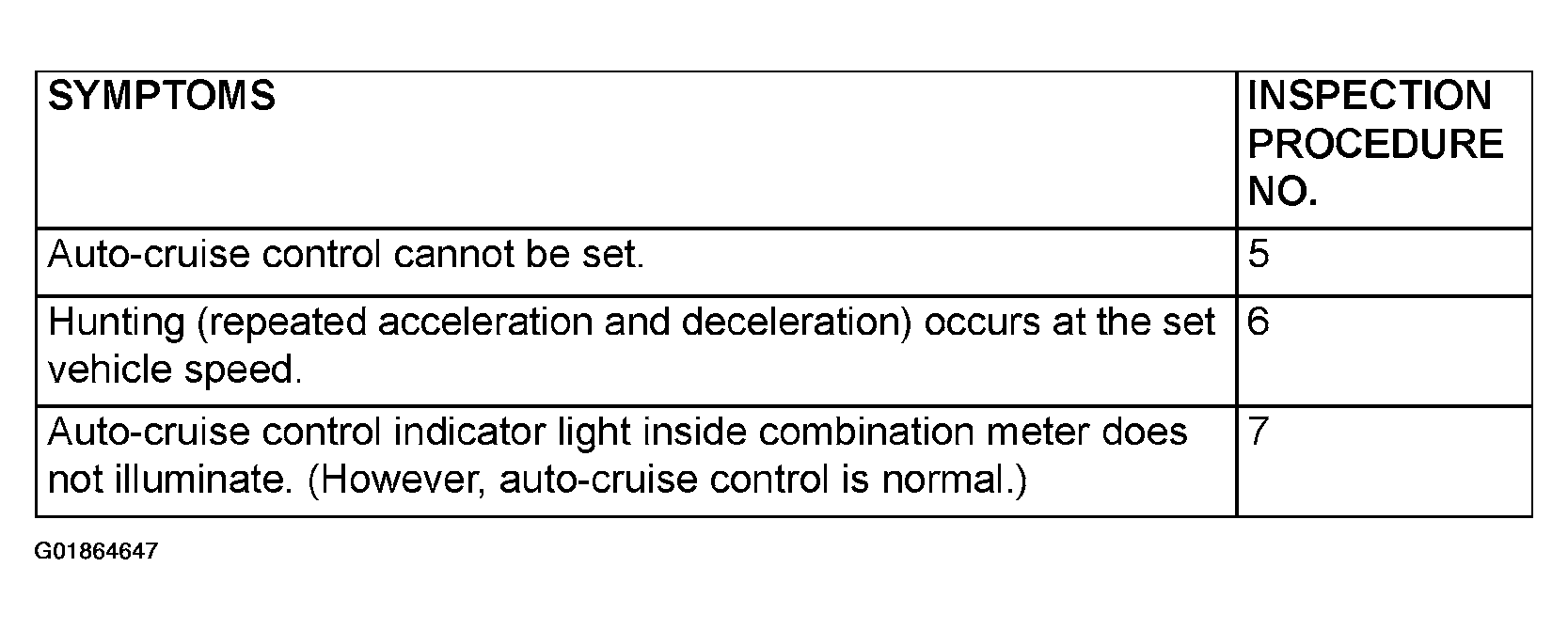

Fig 2: Symptom Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
