Circuit Diagram & Connector Identification

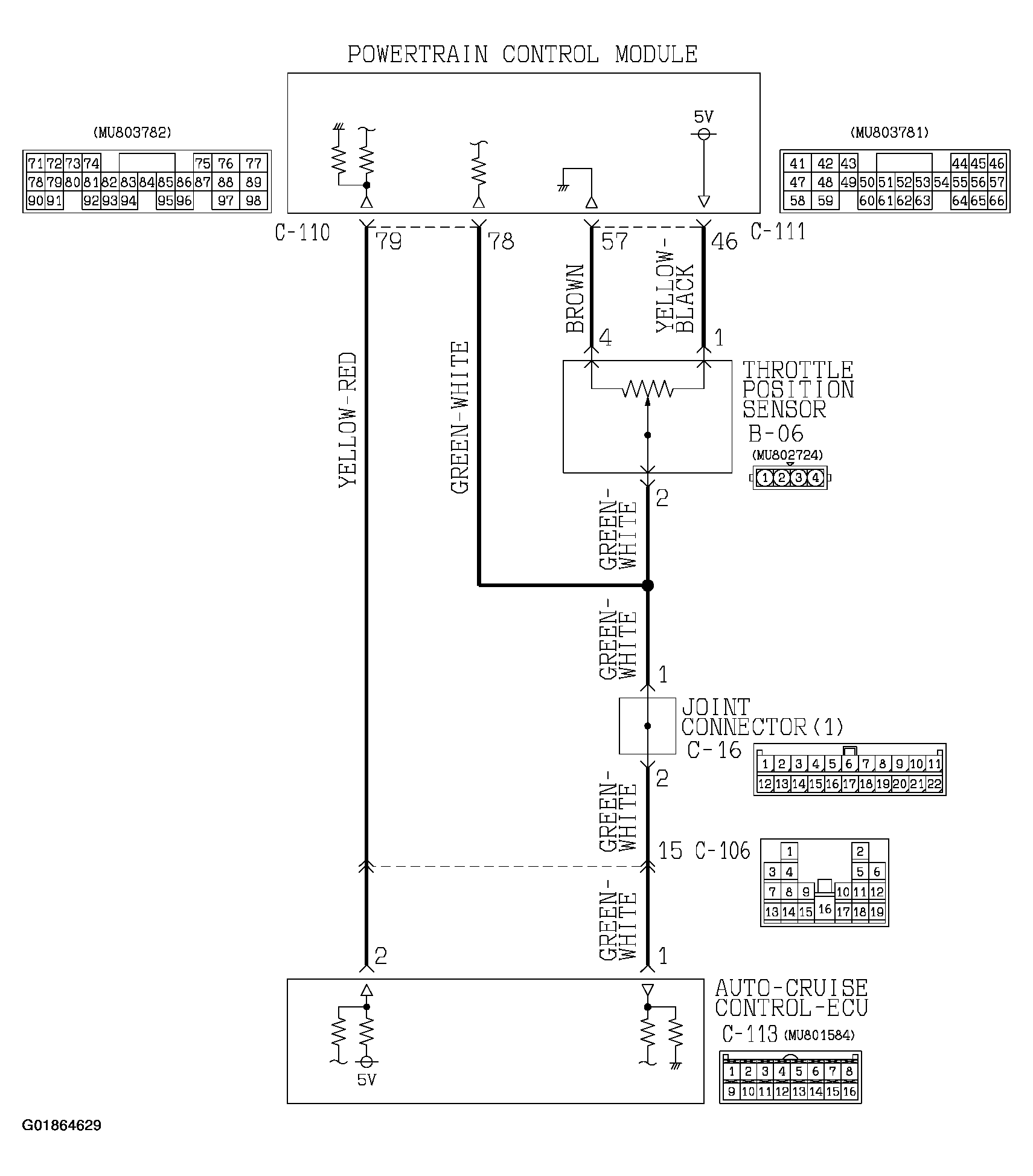

Fig 1: Throttle Position Sensor And Idle Position Signal System Circuit Diagram
G01864629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

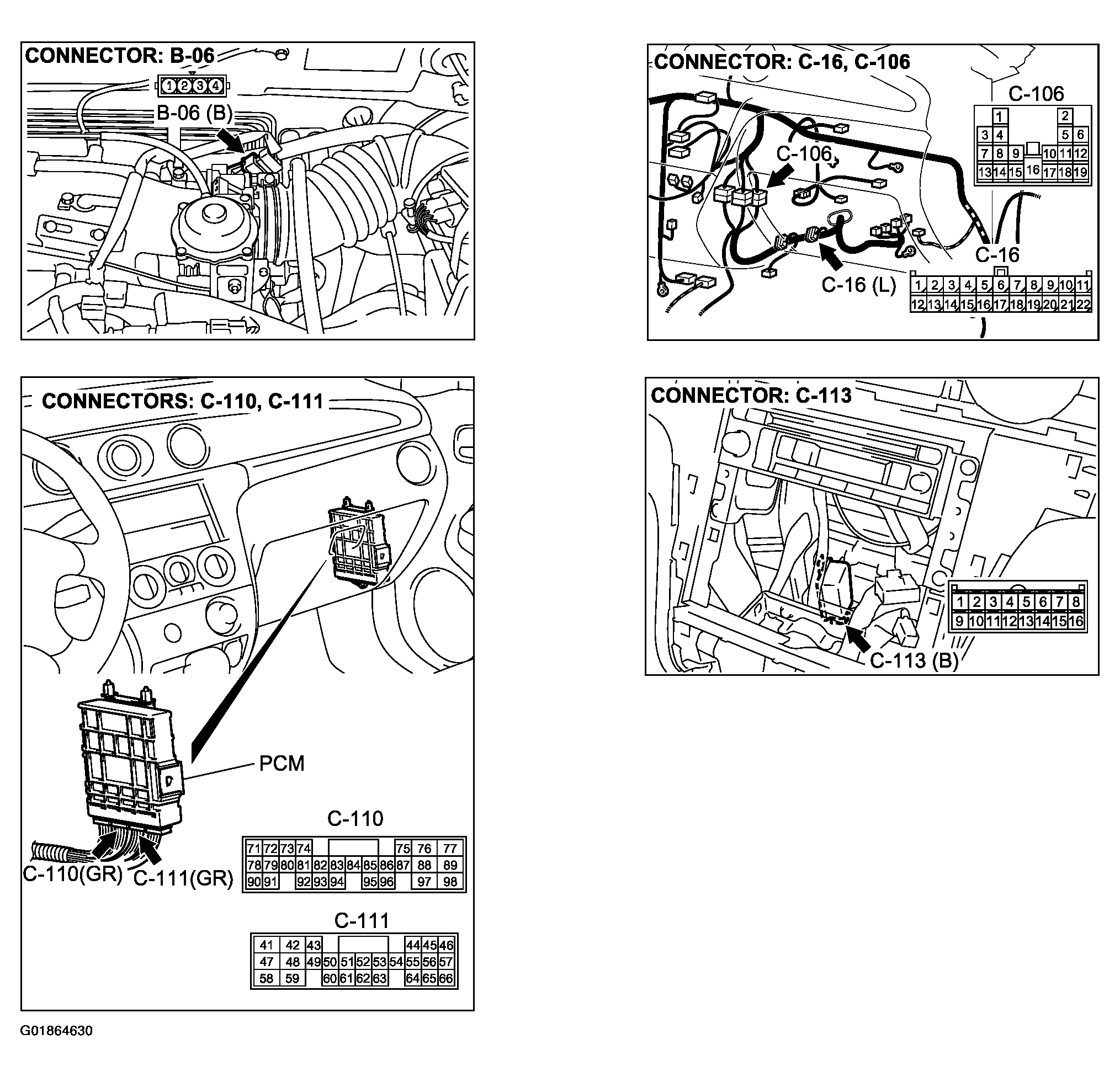

Fig 2: Identifying Connectors
G01864630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
