Circuit Diagram & Connector Identification

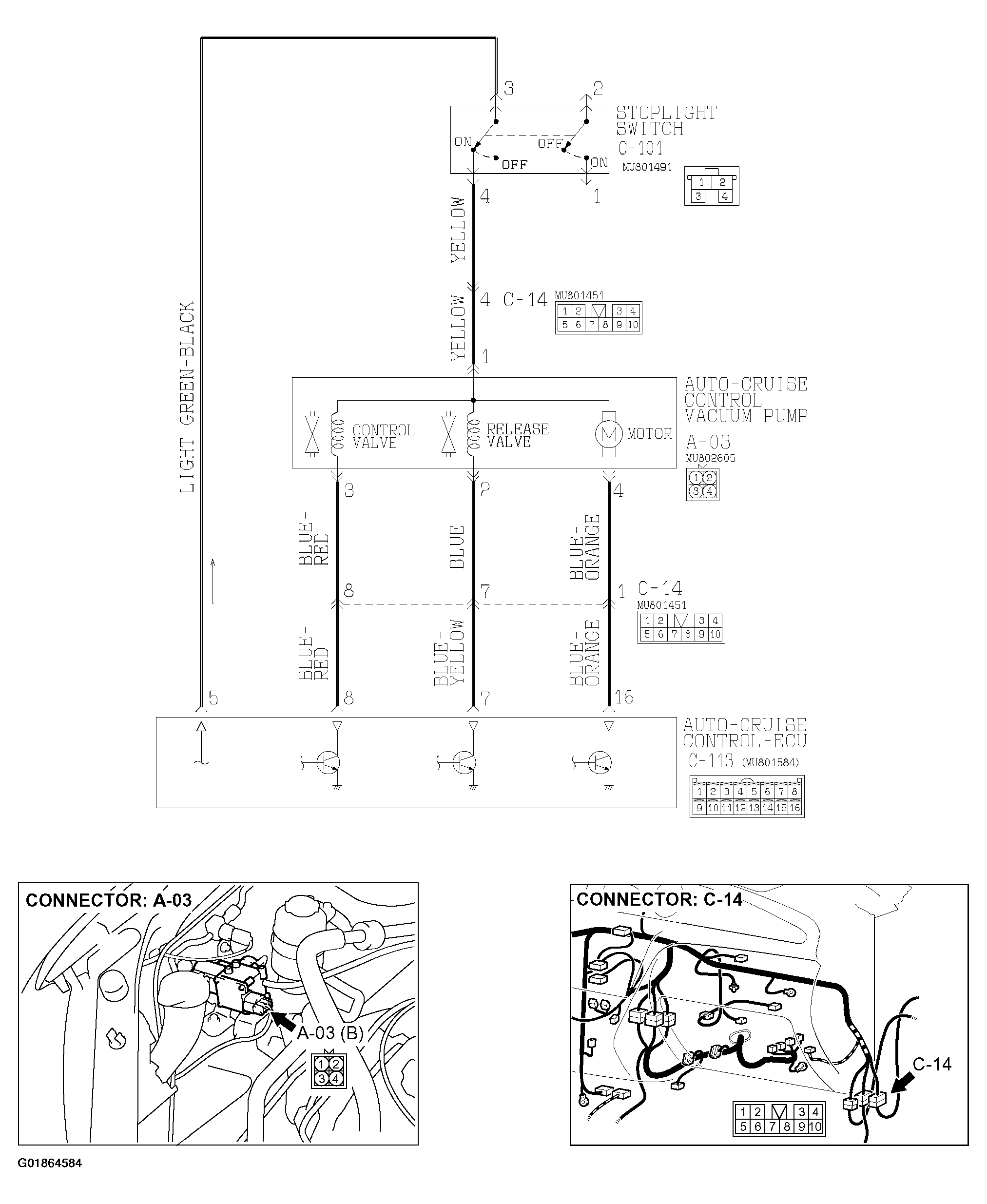

Fig 1: Stoplight Switch System Circuit Diagram & Connector Identification
G01864584Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

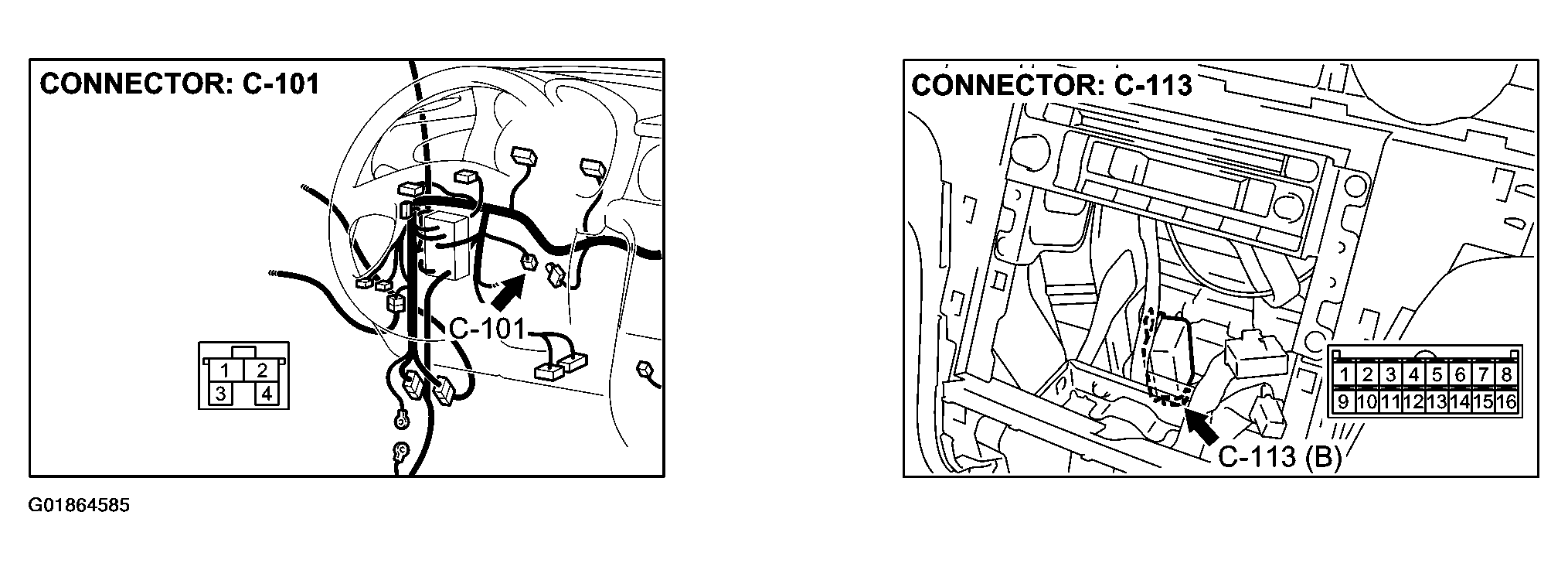

Fig 2: Identifying Connectors
G01864585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
