<< C >> Shift Lock Cable Unit Installation

  1. Temporarily install the selector lever knob, and then move the selector lever to the "P" position and turn the ignition switch to the "LOCK." (OFF) position.
  2. After installing the rod of the shift lock cable unit to the lock cam of the selector lever assembly, install the bolts of the shift lock cable unit.

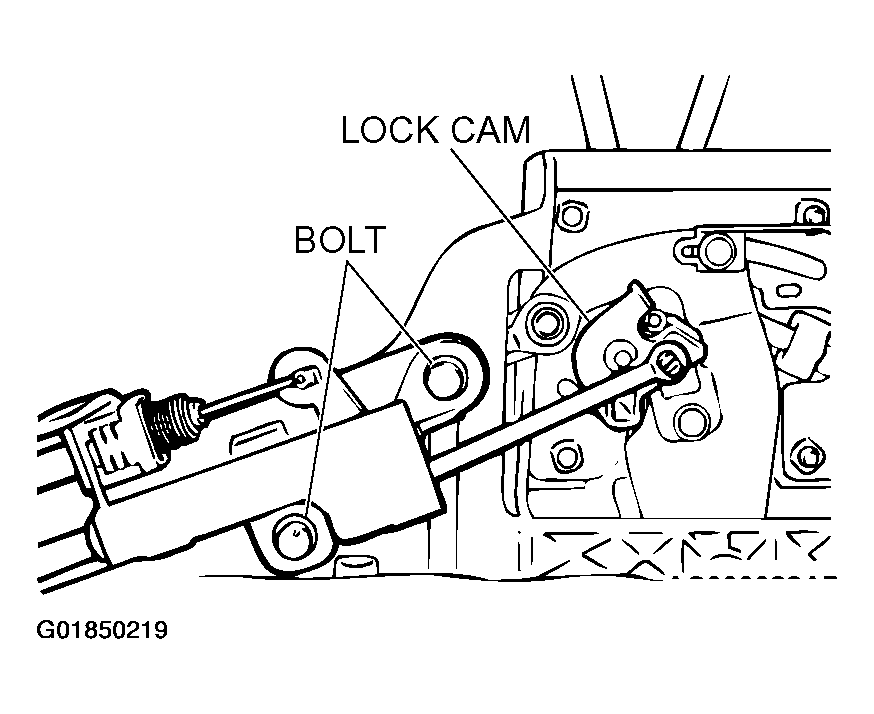

    Fig 1: Installing Shift Lock Cable Unit
    G01850219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check the operation of the selector lever assembly. (Refer to SELECTOR LEVER OPERATION CHECK  .)
