DTC 34: Defective CAN bus line: Notes

CAUTION: If the diagnostic trouble code(s), which indicate a defective CAN bus line, has been set, diagnose the CAN main bus line.

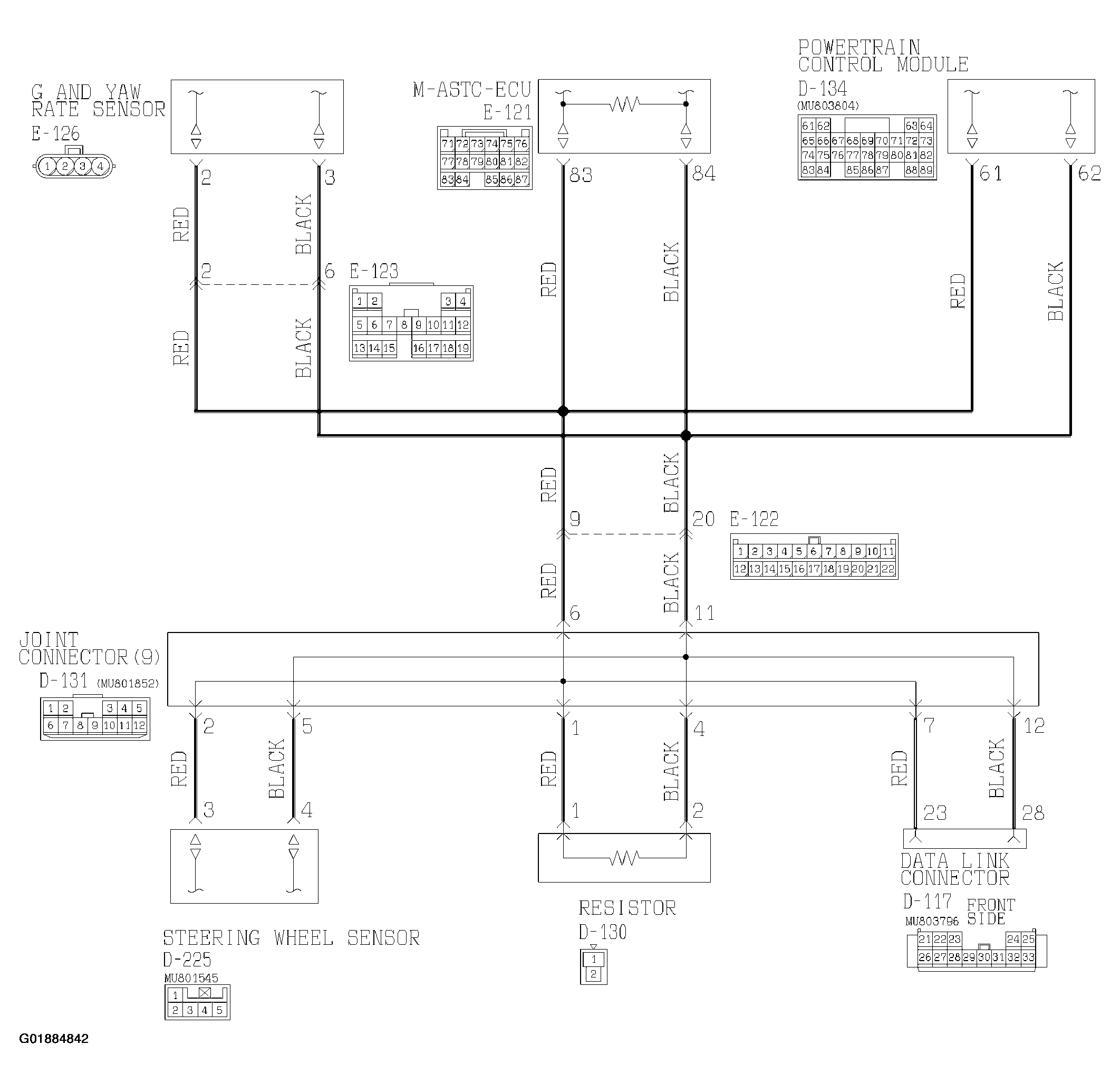

Fig 1: CAN Bus Communication Circuit Diagram
G01884842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
