>> C << Transaxle Control Cable (Transaxle Side) Installation

  1. Place the transaxle manual control lever in the "N" position.
  2. Place the selector lever in the "N" position.
  3. Place the cable stud into the manual control lever slot and install the nut loosely. Gently pull the transaxle control cable into the manual control lever slot until the cable is taut. Tighten the nut to the specified torque.
    1. Tightening torque: 12+/-2 N.m (107+/-17 in-lb)

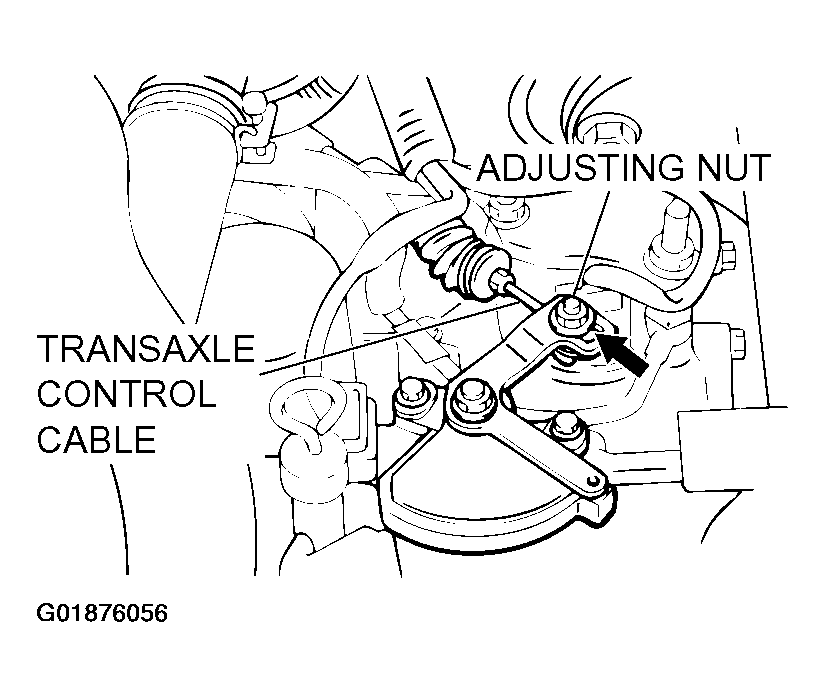

    Fig 1: Installing Transaxle Control Cable (Transaxle Side)
    G01876056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
