Anti-Lock Braking System (Abs) - Except Evolution
>>
General Description
>>
Construction Diagram
>>
Notes
Construction Diagram: Notes

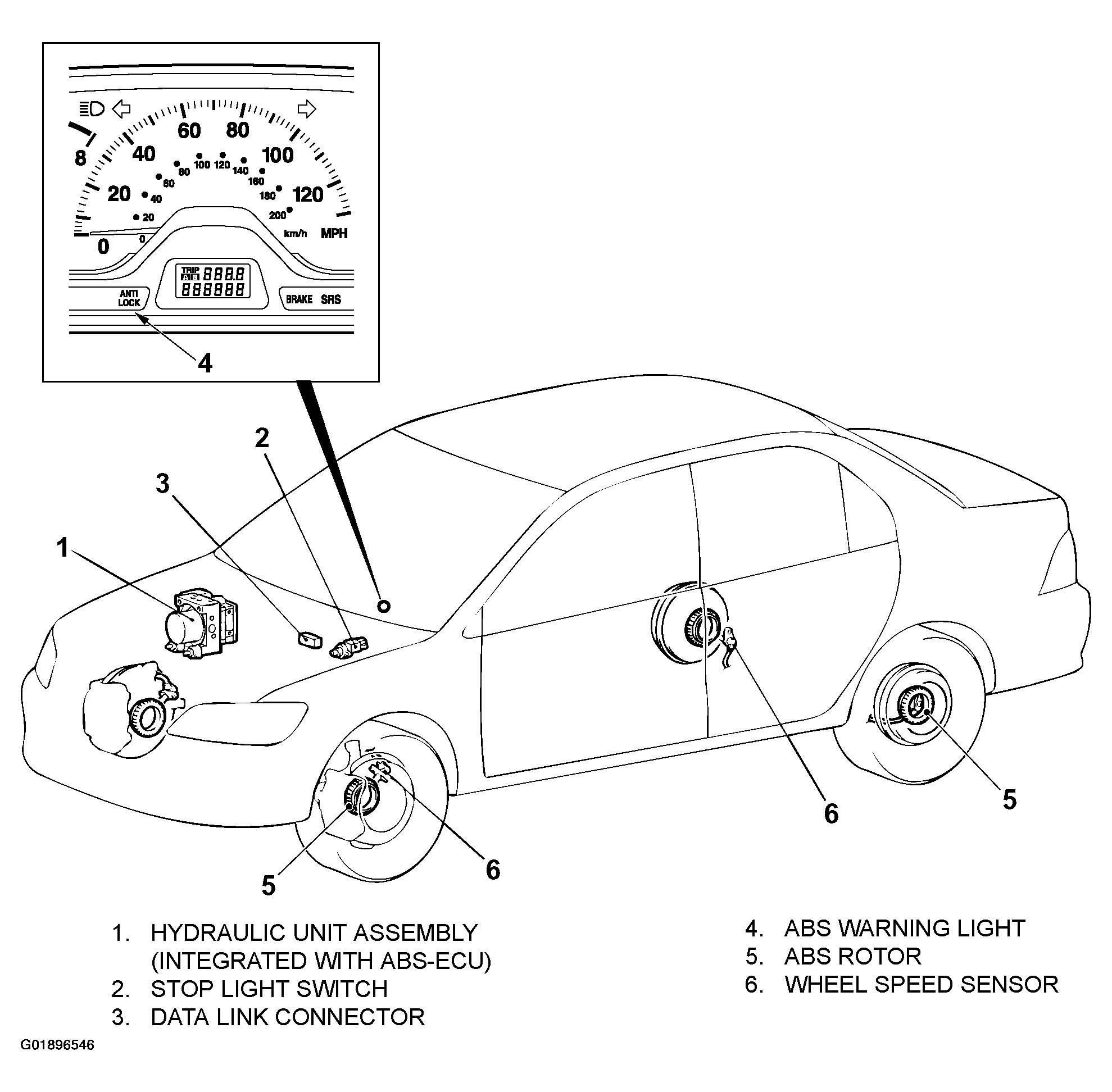

Fig 1: Construction Diagram - Anti-lock Brake System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
