Step 8: Check The Auto-Cruise Control Switch

1. Remove the auto-cruise control switch.
2. Measure the resistance between the terminals when each of the SET, RESUME, CANCEL and MAIN switch is pressed. See Fig 1 and Fig 2 .

Do the measured values correspond?

• YES

  Check that diagnostic trouble code 15 is not output. If diagnostic trouble code 15 is output, replace the auto-cruise control-ECU. Then check that diagnostic trouble code 15 is not output.
• NO

  Replace the auto-cruise control switch. Then check that diagnostic trouble code 15 is not output.

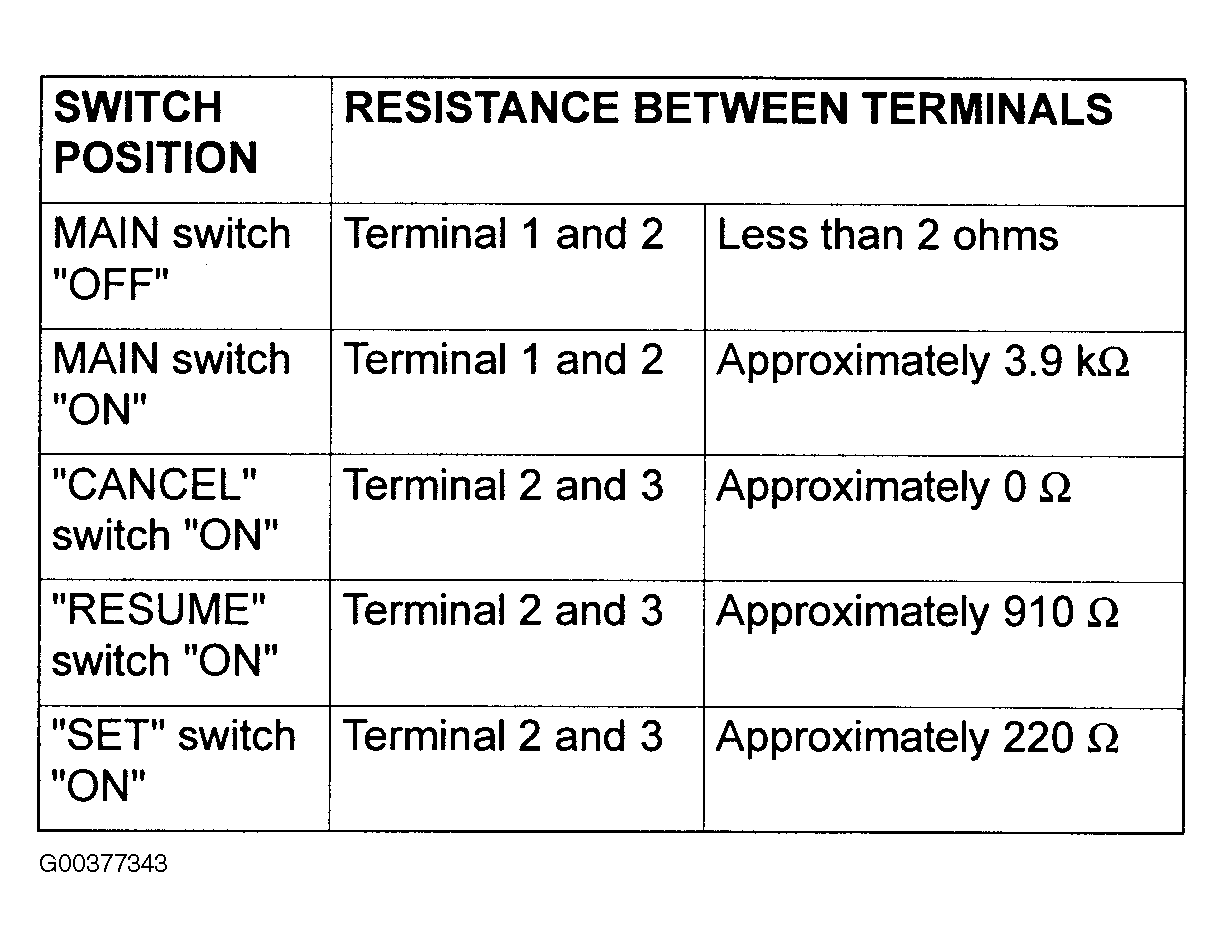

Fig 1: Checking Auto-Cruise Control Switches

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

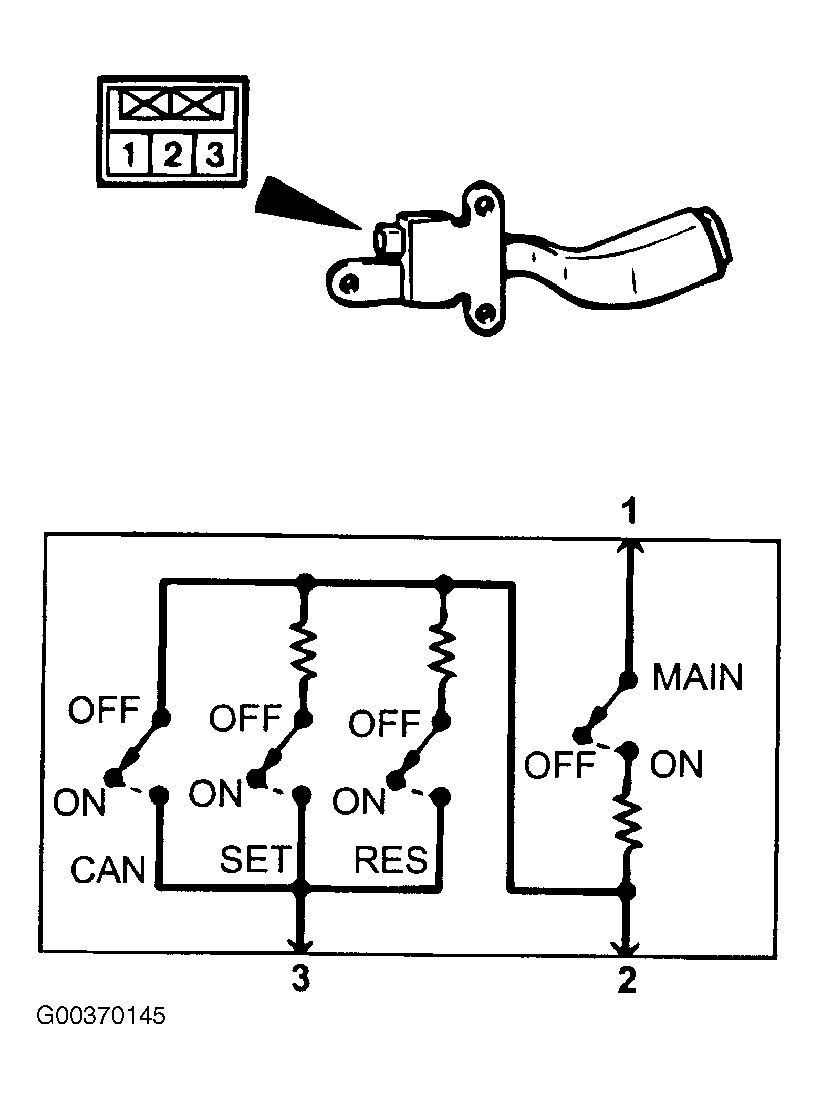

Fig 2: Measuring Resistance Between Auto-Cruise Control Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
