Circuit Diagram

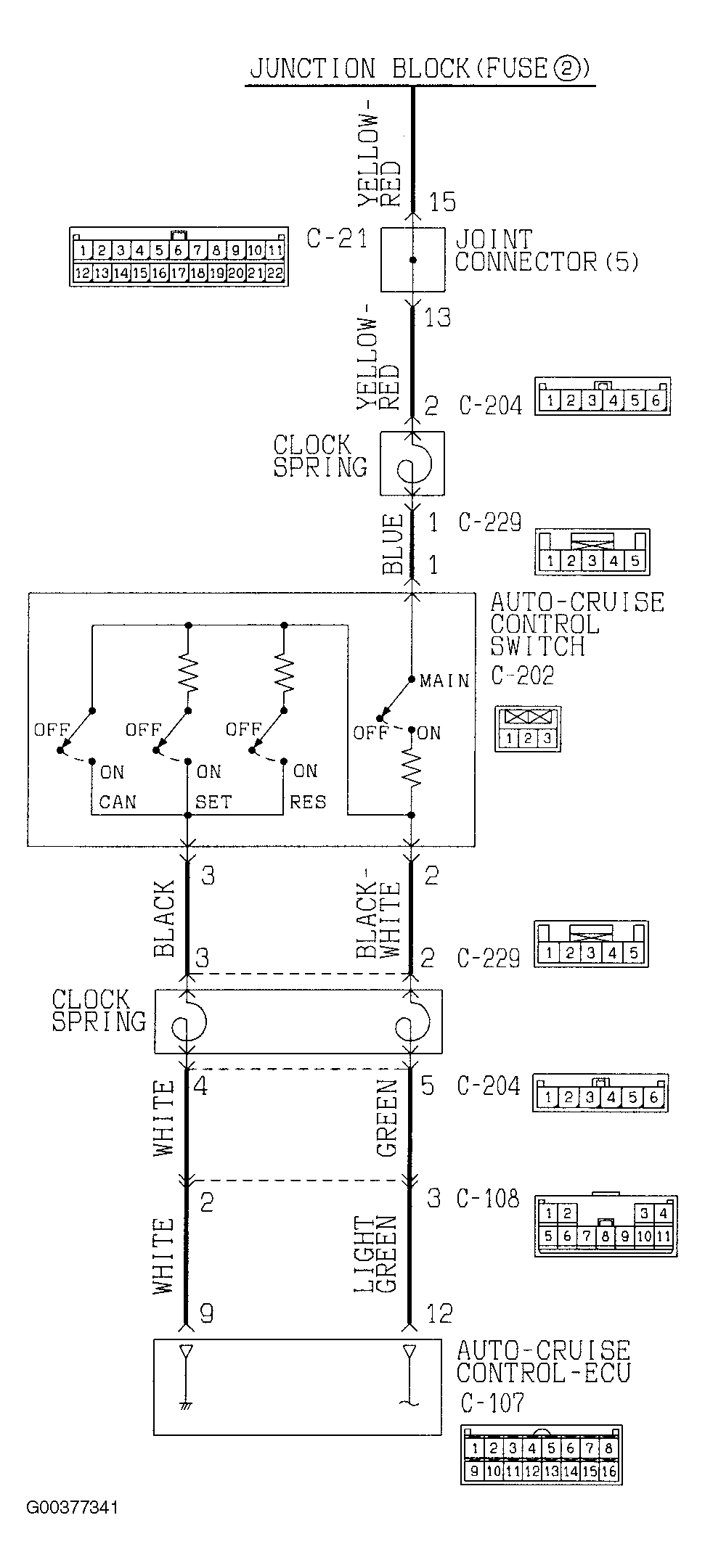

Fig 1: Auto-Cruise Control Switch System Circuit
G00377341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

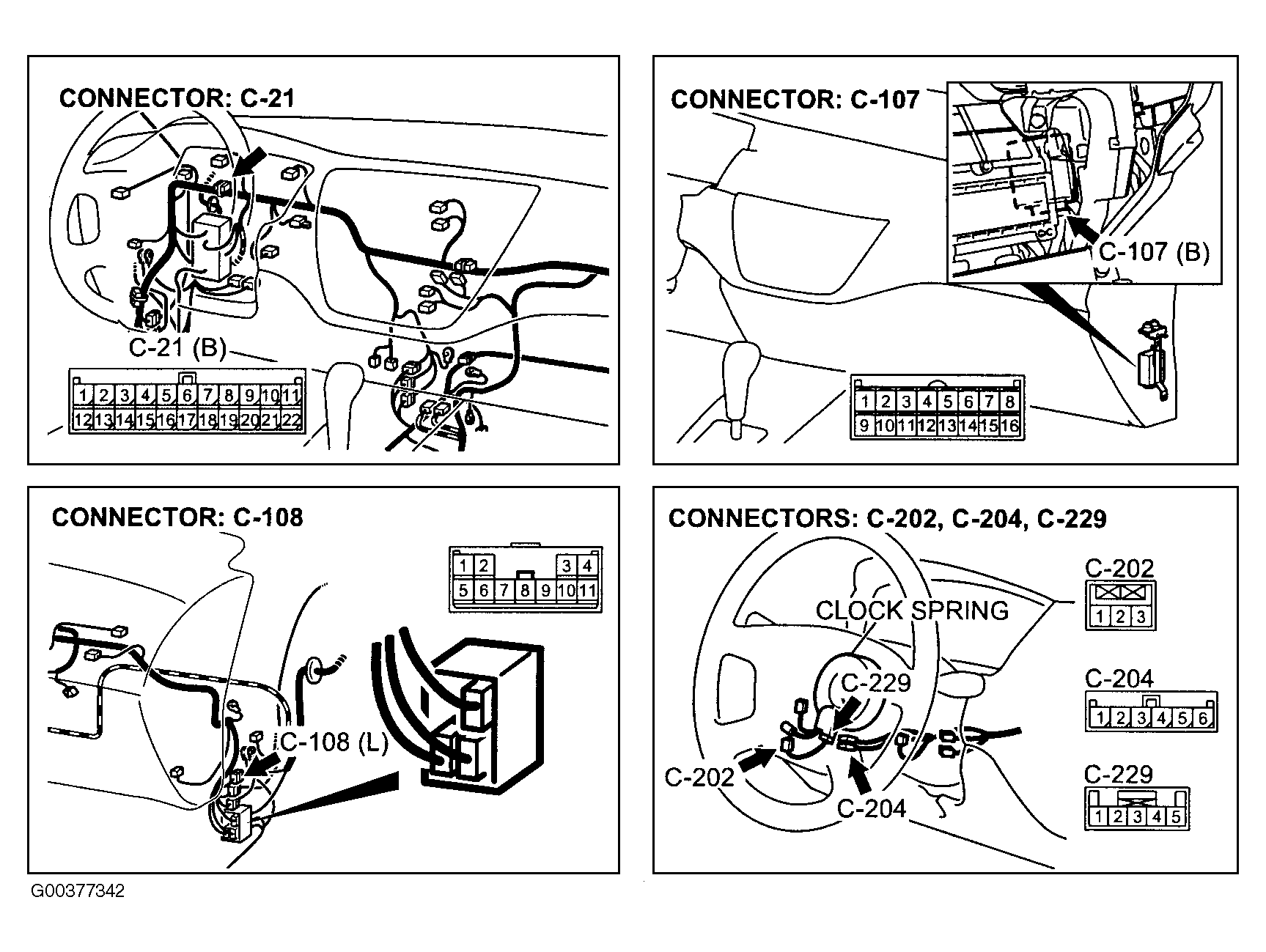

Fig 2: Identifying Connectors Related To Auto-Cruise Control Switch
G00377342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
