Using Auto-Cruise Control Indicator Light

1. Turn the ignition switch to the ON position while holding the auto-cruise control switch in the SET position (down). Then, within one second, move the cruise control switch up to the RES position. See Fig 1 .
2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter. See Fig 2 .

Fig 1: Identifying SET & RES Positions On The Auto-Cruise Control Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

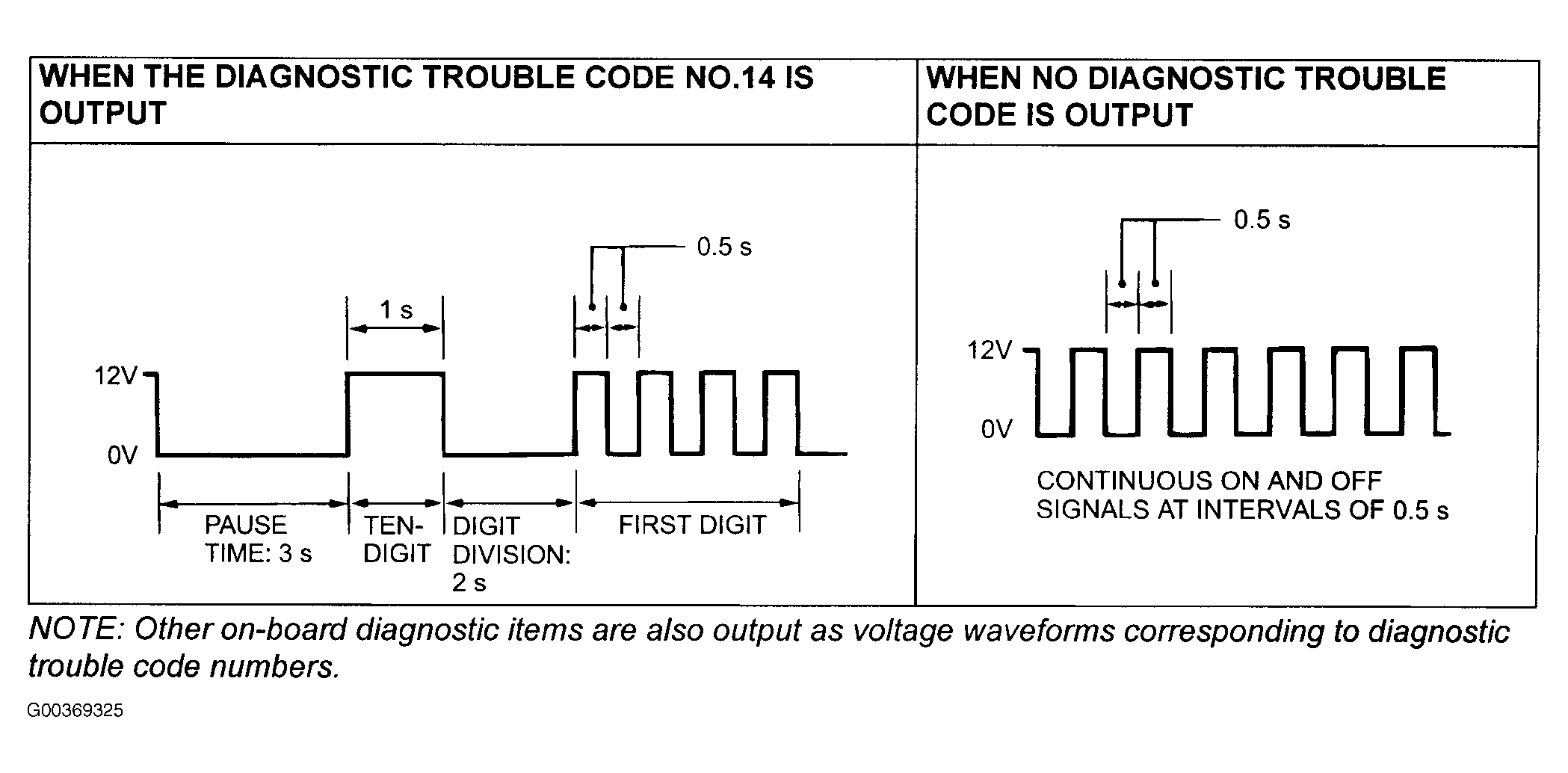

Fig 2: Identifying Diagnostic Results When Using The Auto-Cruise Control Indicator Light

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
