Connector C-01 Connector End View (Evolution)

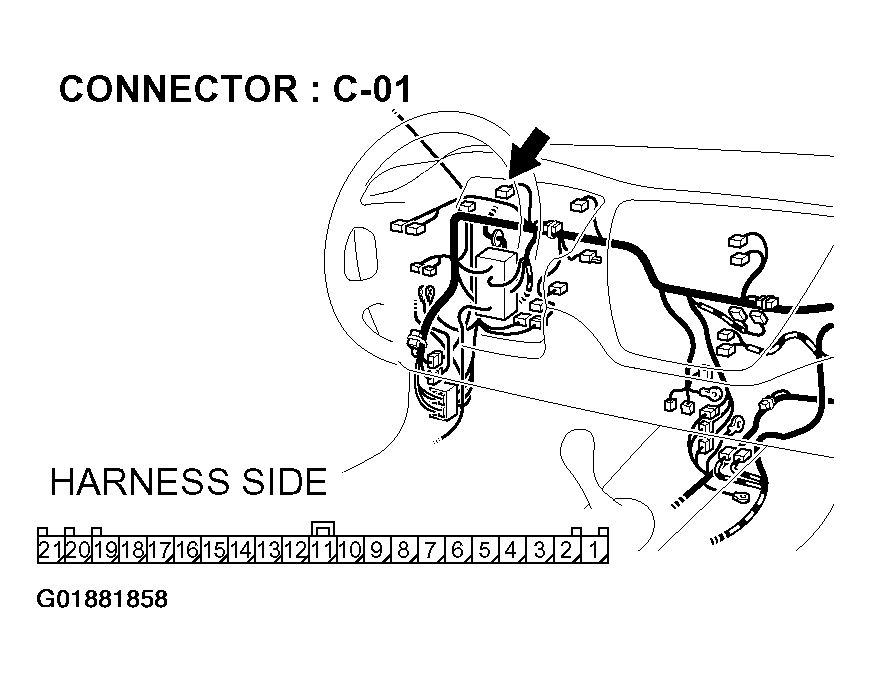

Fig 1: Connector C-01 Connector End View (Evolution)

G01881858

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
