Section 12 (On-Vehicle Service- Except Evolution)
>>
Timing Belt
>>
Removal And Installation
Removal And Installation
WARNING:
This page is about a different variant/trim than selected.

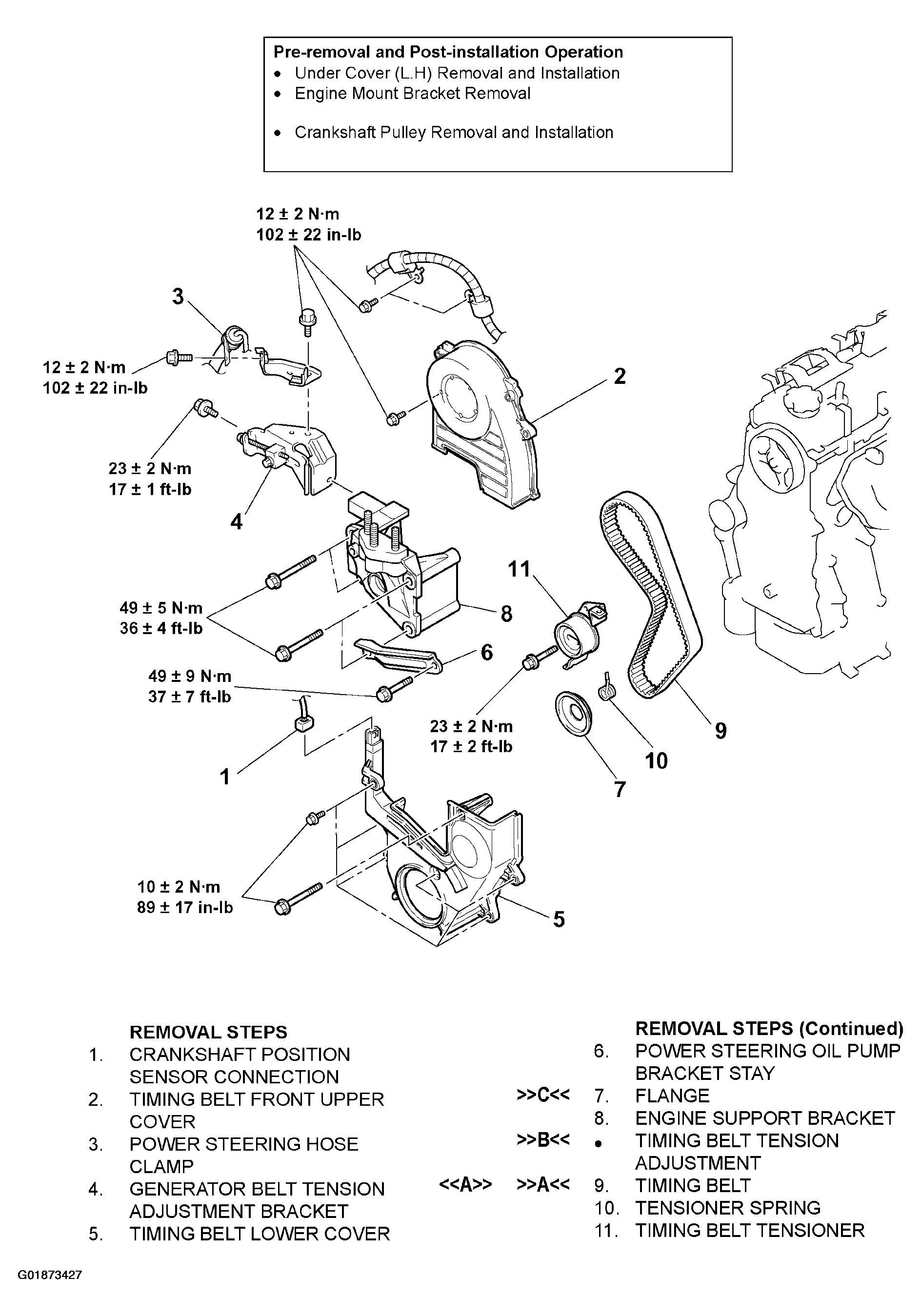

Fig 1: Removing & Installing Timing Belt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
