Section 11 (Simplified Wiring System (SWS) - Except Evolution)
>>
Symptom Procedures
>>
Inspection Procedure D-1: Power Windows: Power Windows Do Not Work At All
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

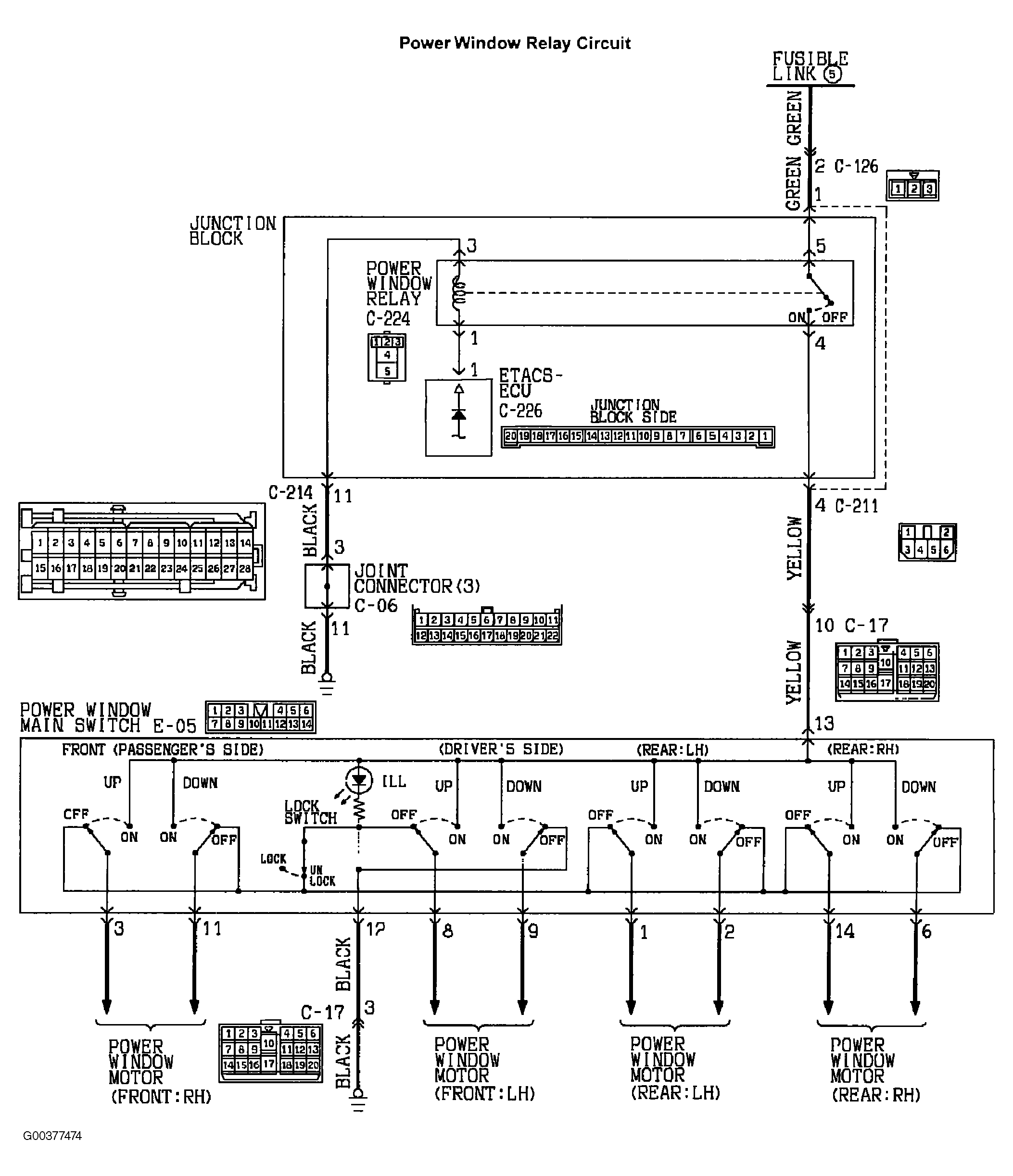

Fig 1: Power Window Relay Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

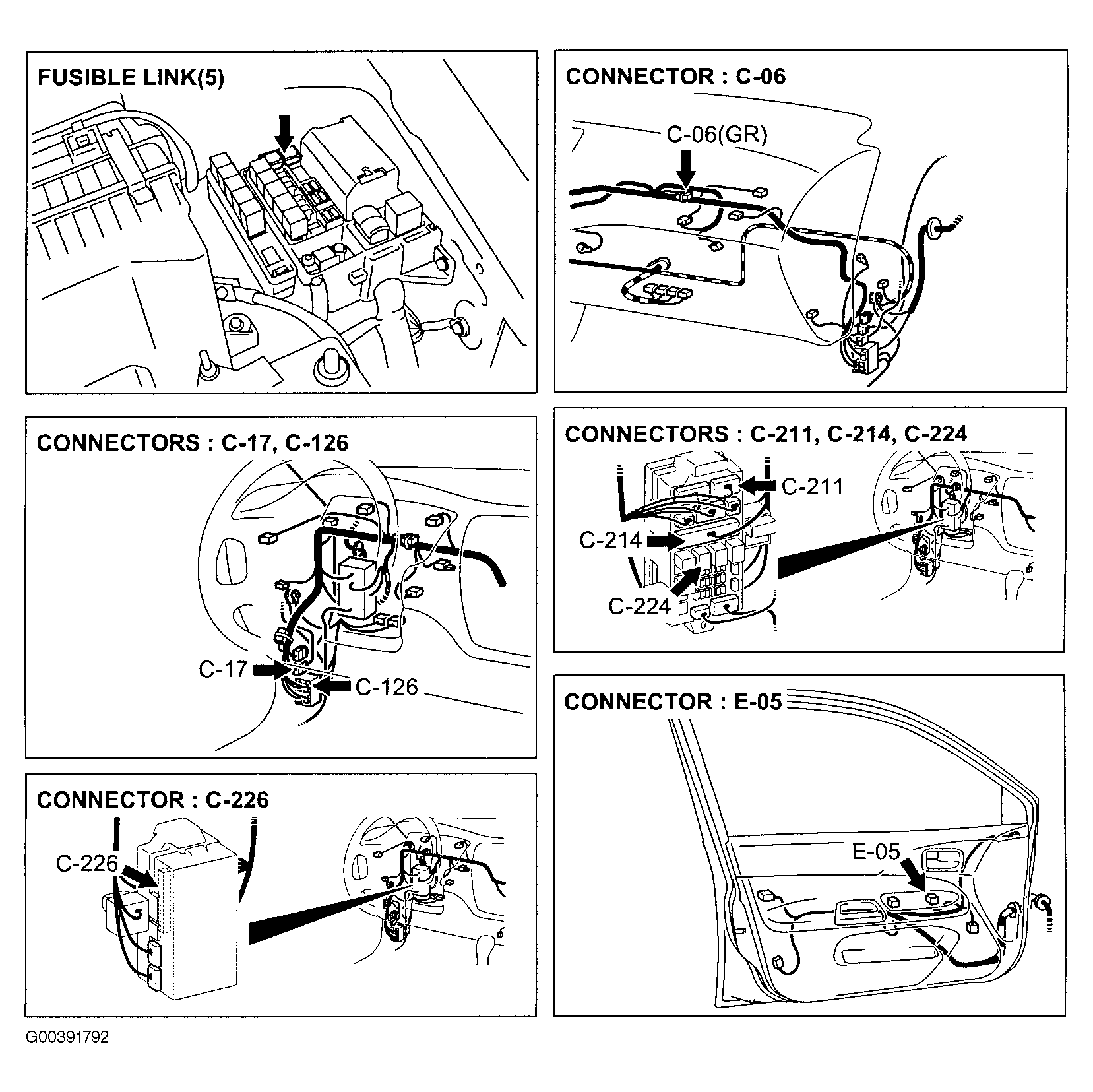

Fig 2: Identifying Connectors Related To Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
