How To Check ECU'S

WARNING: This page is about a different variant/trim than selected.

Use the scan tool and the SWS monitor kit to check ECUs.

NOTE: The "ECU COMM CHK" function checks a communication status of ECUs "NG" does not always mean ECU malfunction. If a malfunction is found by the "ECU COMM CHK", see SYMPTOM CHARTS .

The following ECUs can be checked by using the scan tool and the SWS monitor kit. See Fig 1.

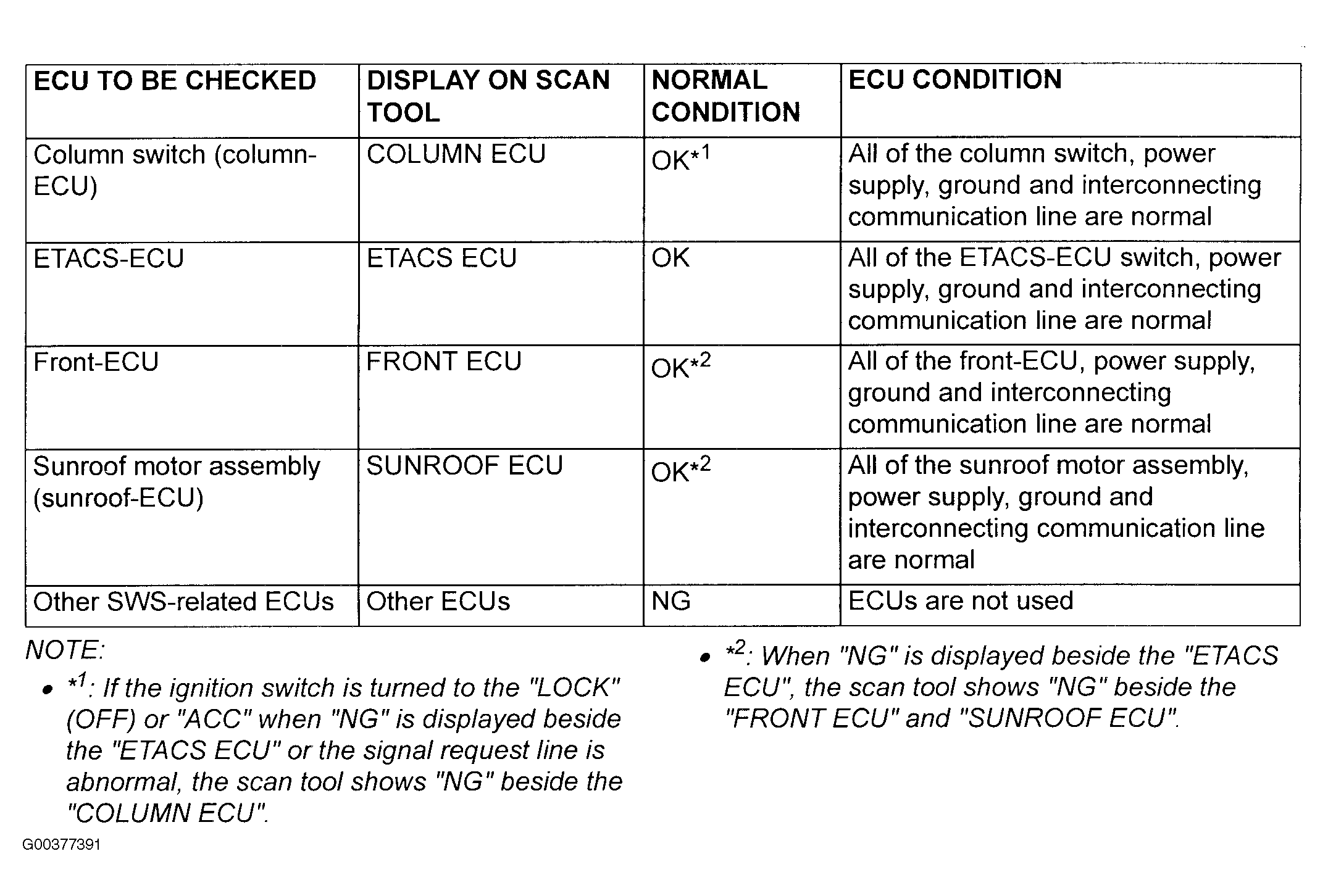

Fig 1: Identifying SWS Monitor Kit-Compatible ECU's & Their Conditions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
