Headlight And Taillight

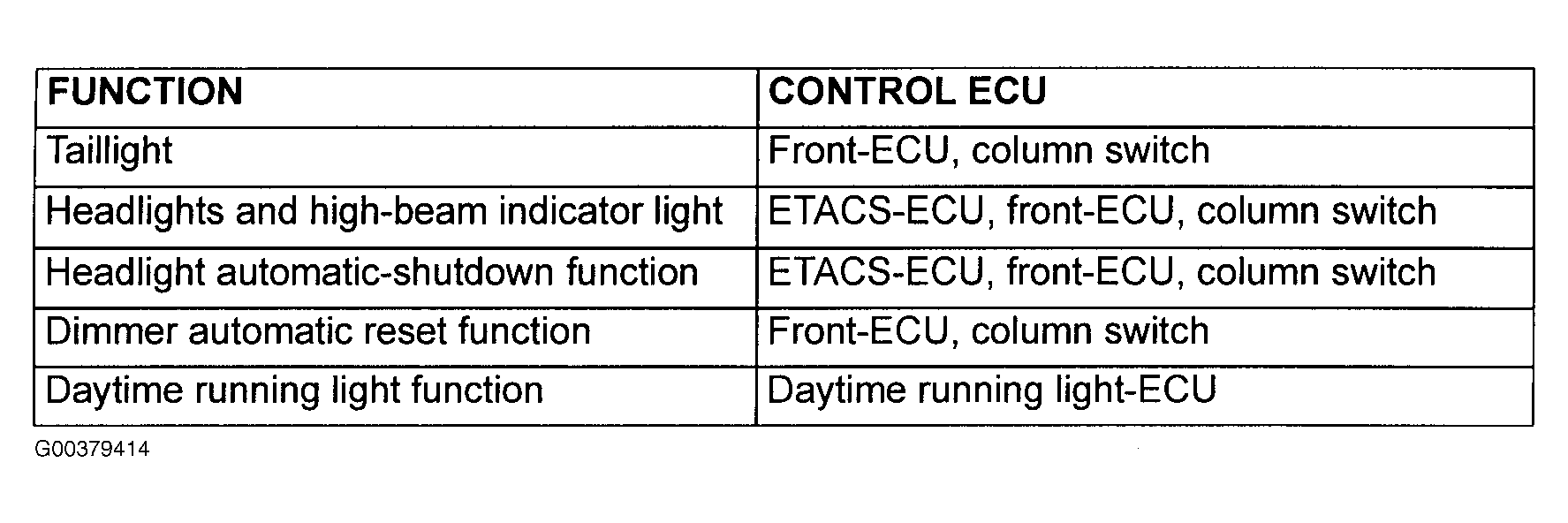

The ECU related to the headlight and taillight types and various control functions are as follows. See Fig 1.

Fig 1: Identifying Headlight & Taillight Functions & Control-ECU's

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

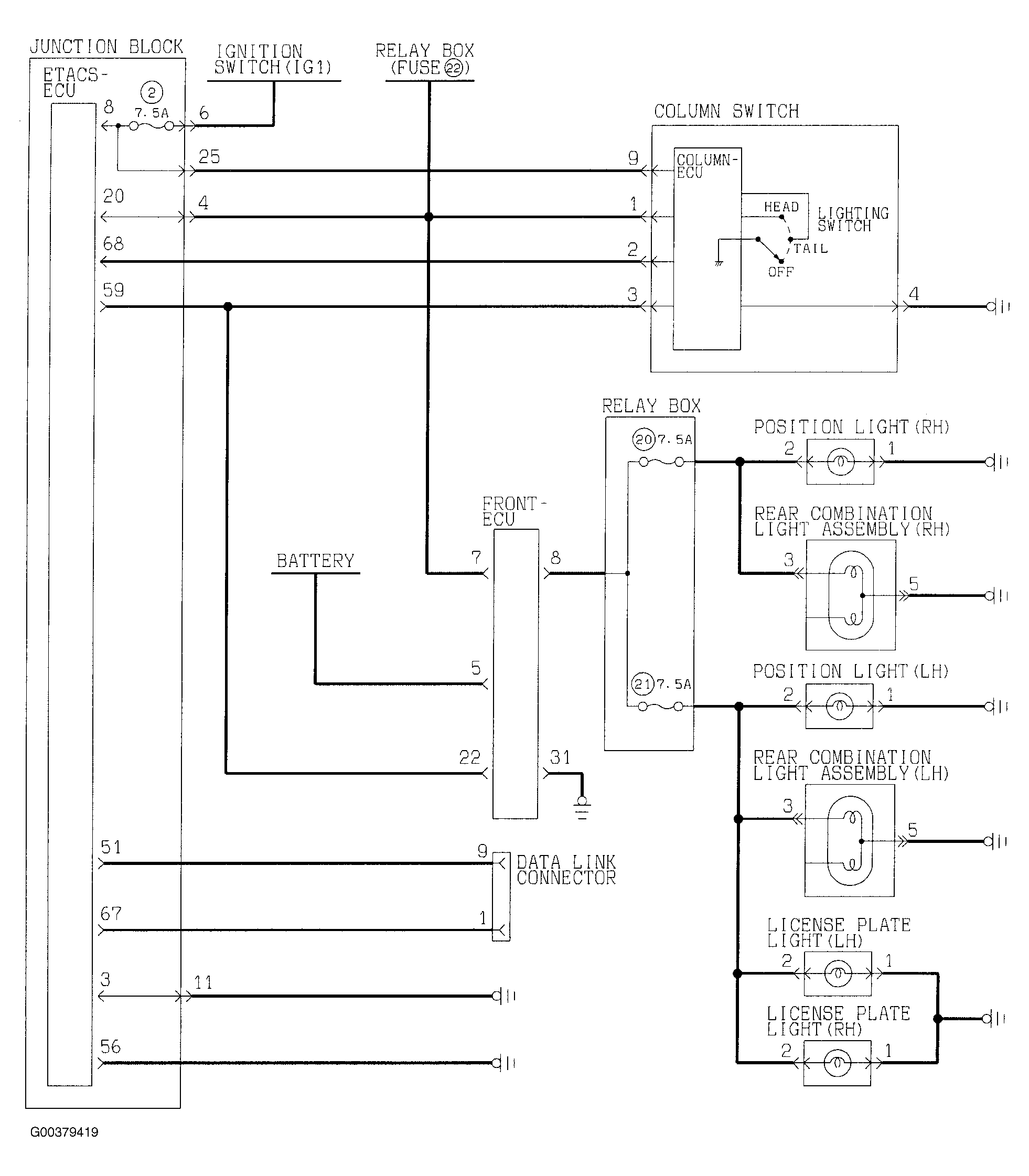

Fig 2: Taillight Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

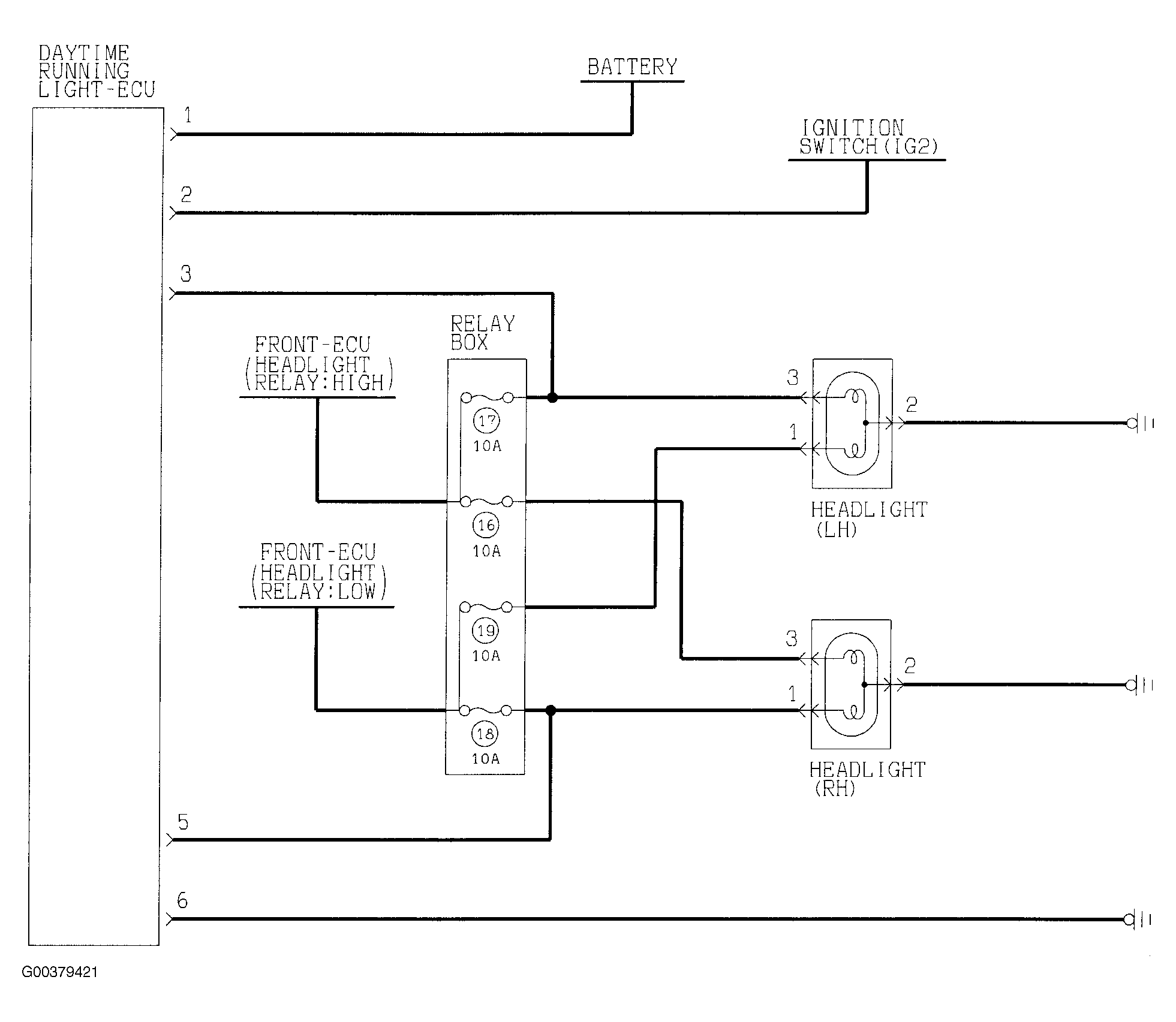

Fig 3: Daytime Running Light Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

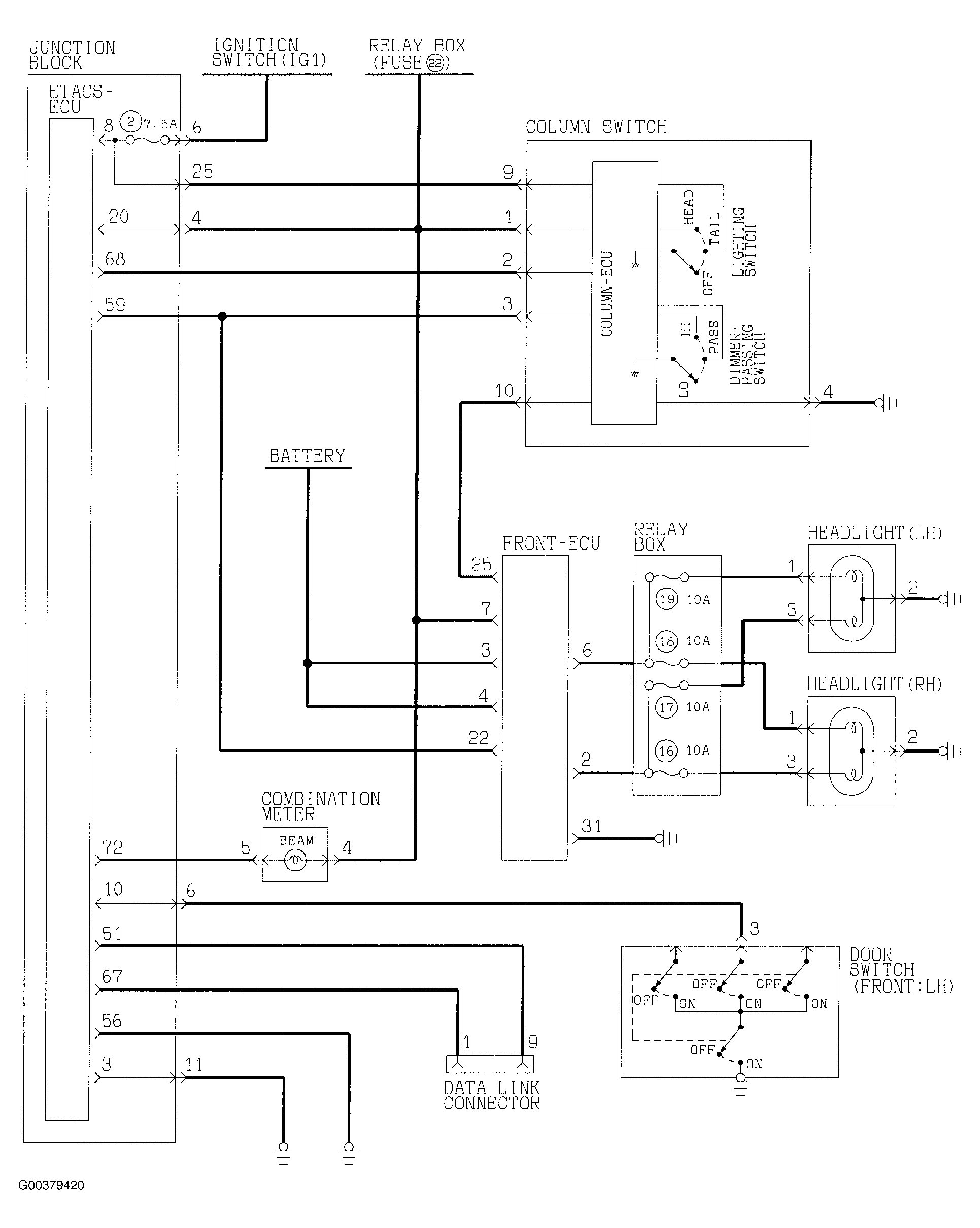

Fig 4: Headlight Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
