Inspection Procedure 2: Communication With Scan Tool Is Not Possible (Communication With ECM Only Is Not Possible): Notes

For data link connector location, related circuit and terminal identification, see Fig 1 .

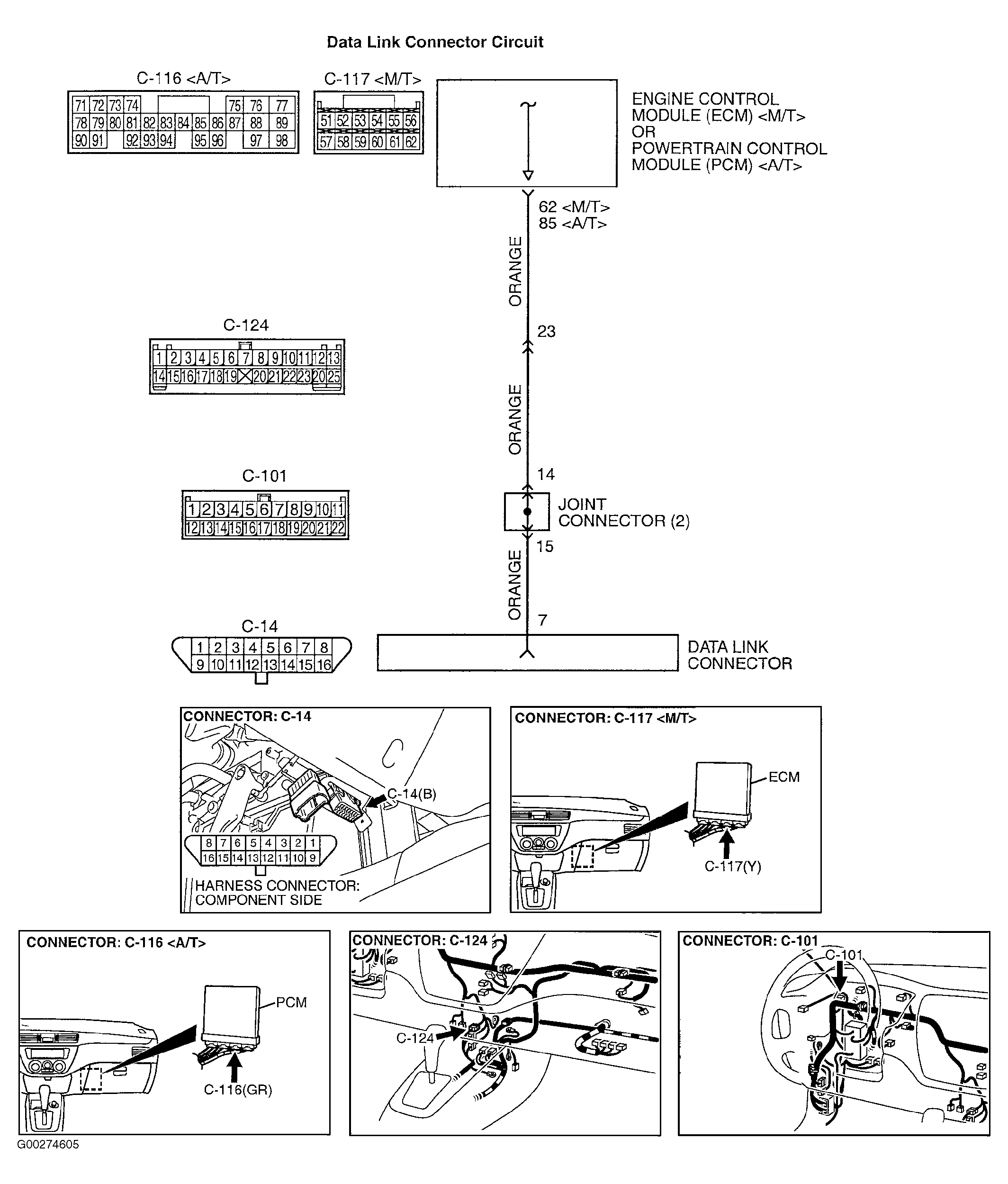

Fig 1: Identifying Data Link Connector Location, Related Circuits & Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
