General Circuit Diagram For The Keyless Entry System

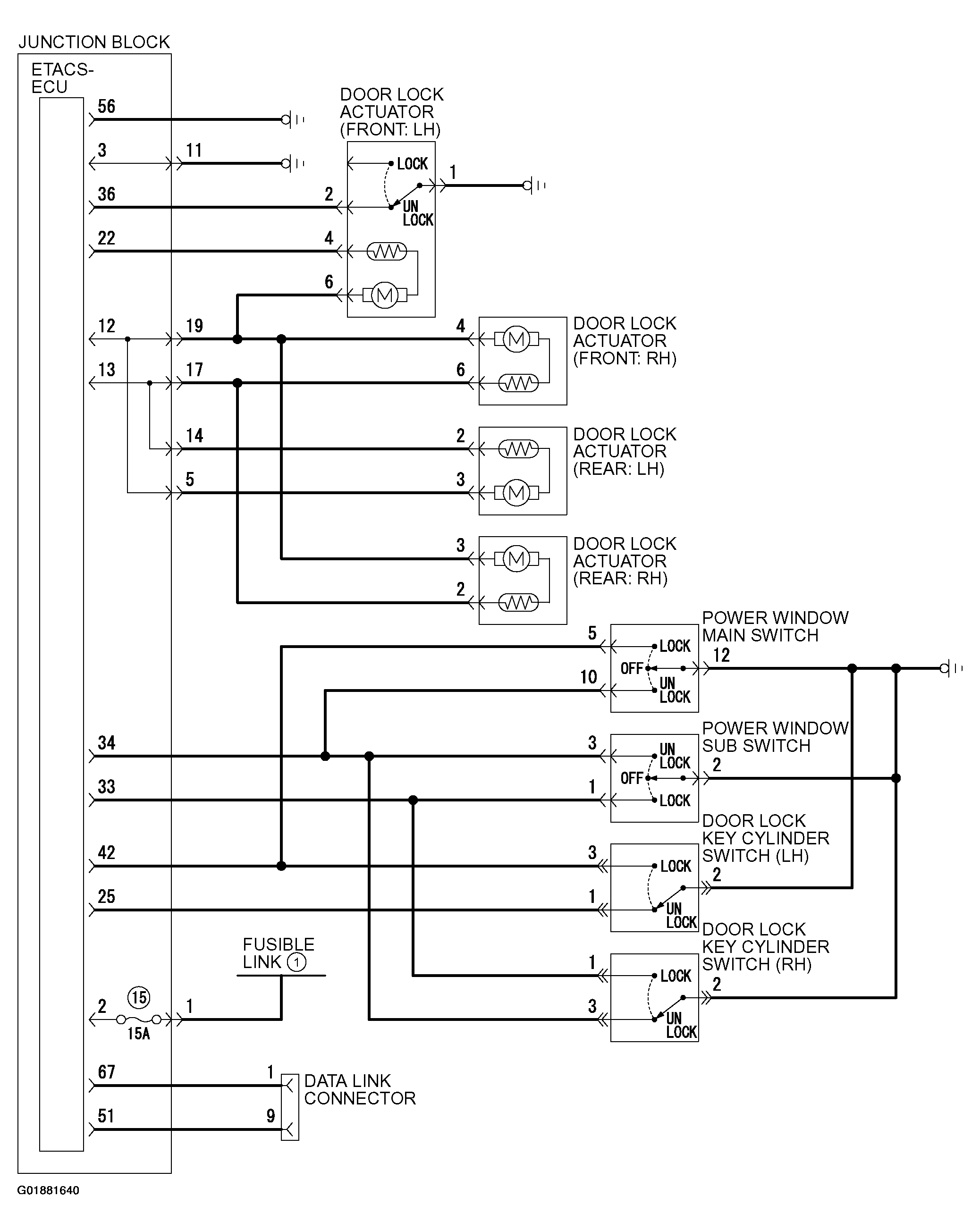

Fig 1: View Of Keyless Entry System Circuit Diagram (1 Of 2)
G01881640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

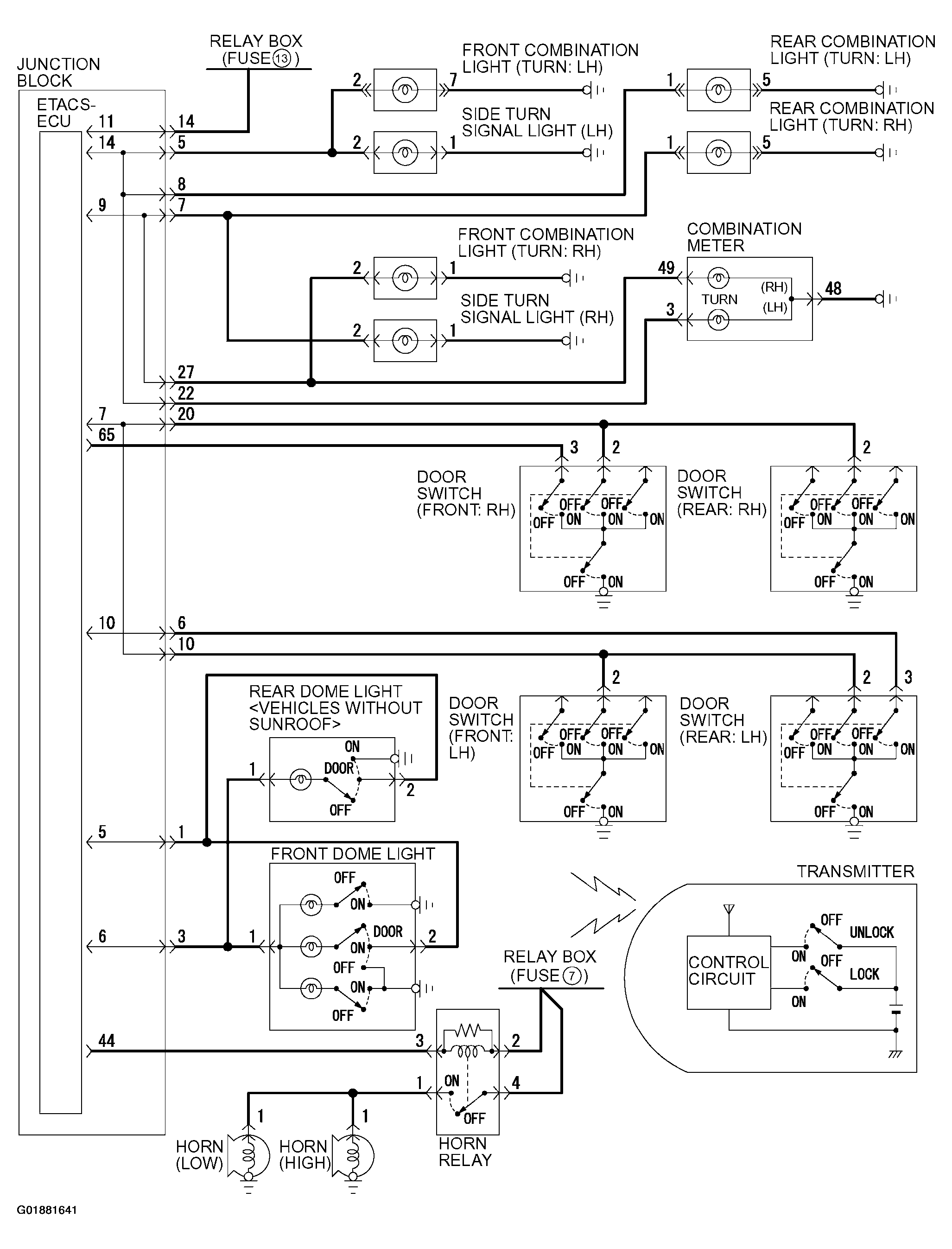

Fig 2: View Of Keyless Entry System Circuit Diagram (2 Of 2)
G01881641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
