INSPECTION PROCEDURE 17: Vehicle Speed Signal System: Notes

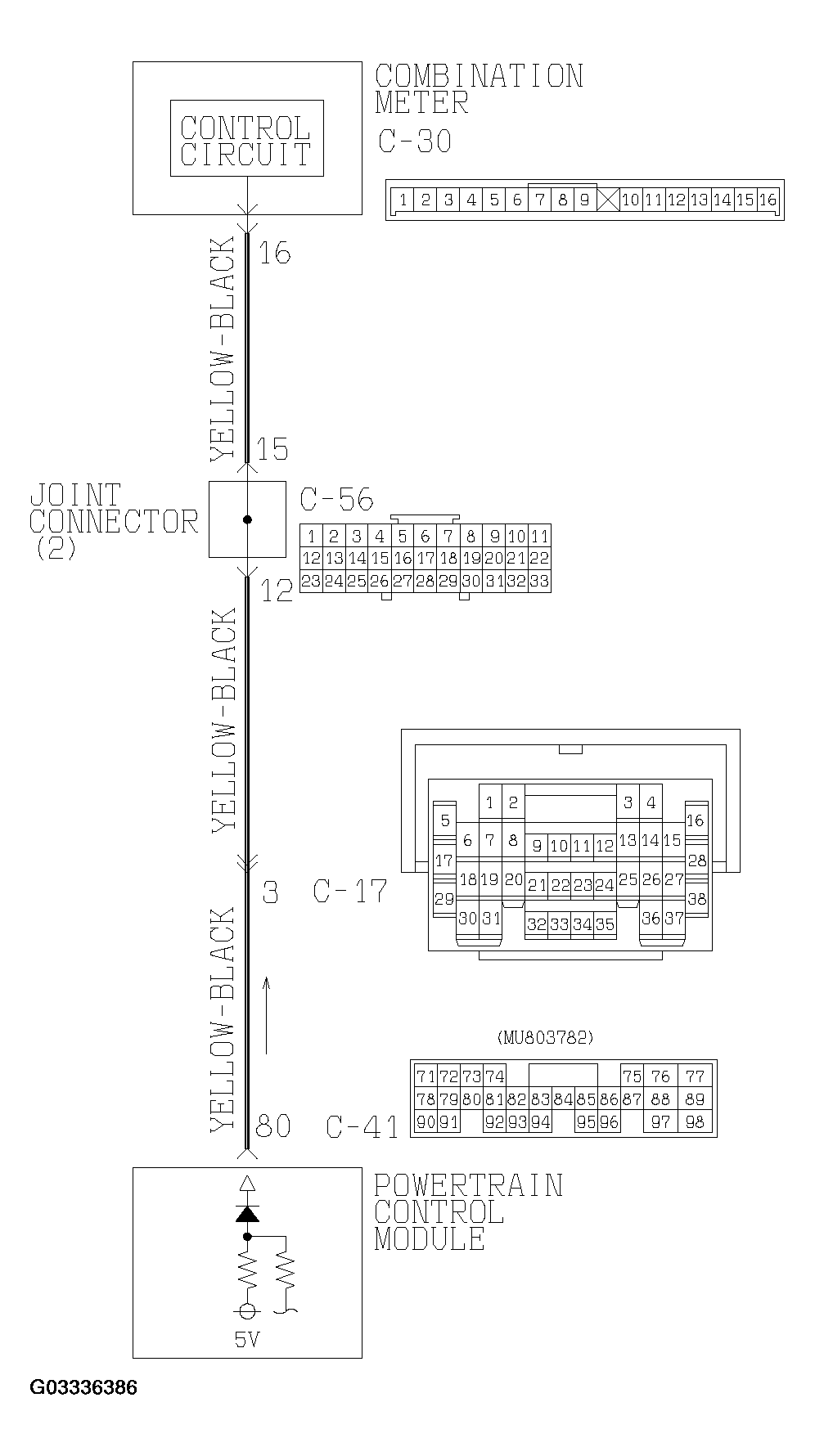

Fig 1: Vehicle Speed Signal System Circuit
G03336386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

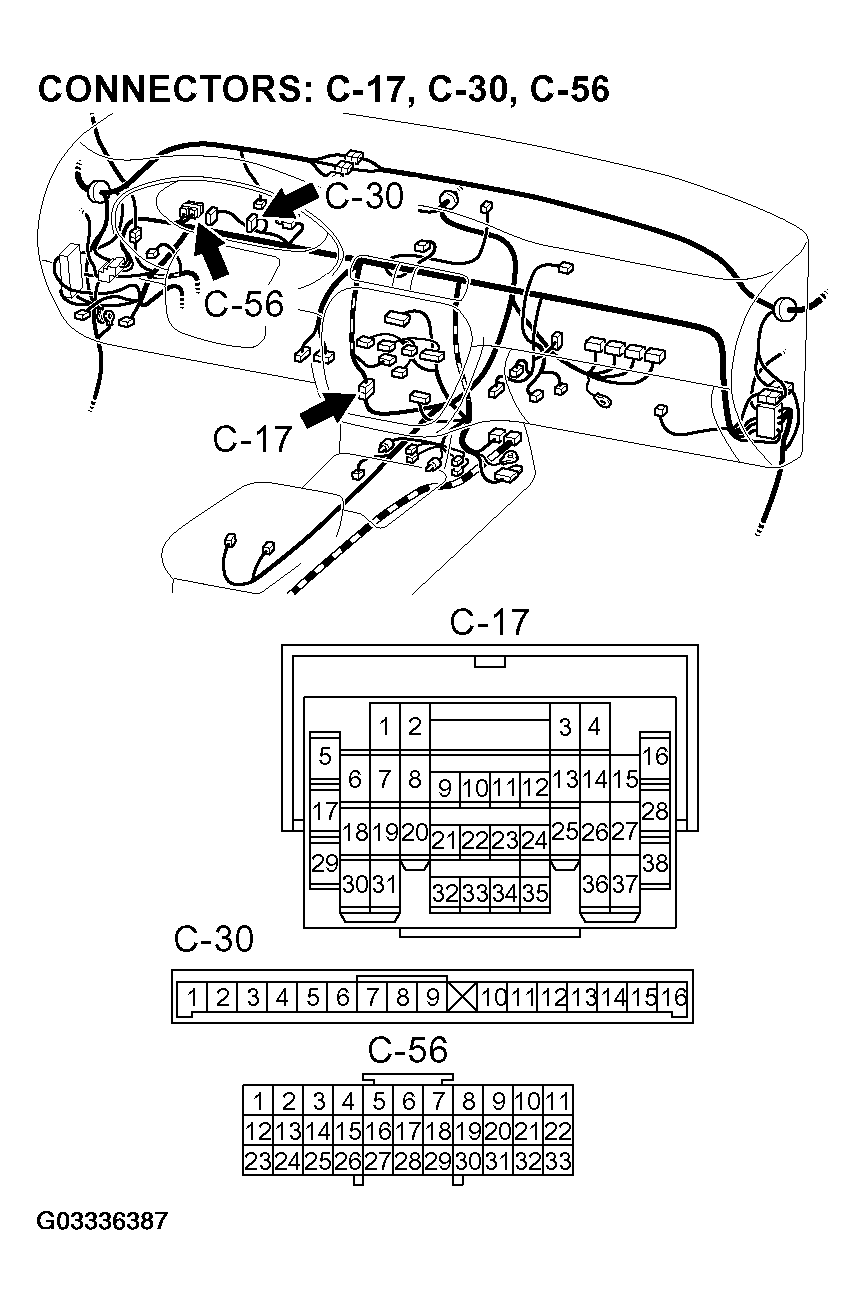

Fig 2: Identifying C-17,C-30 And C-56 Connectors
G03336387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

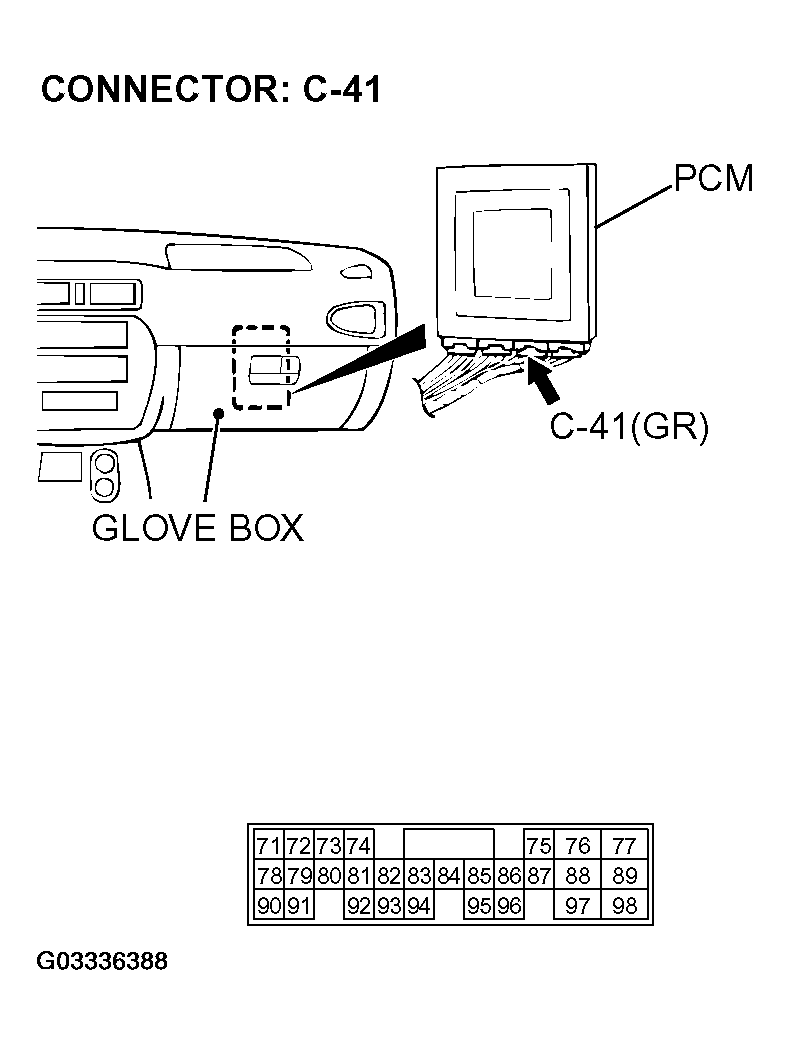

Fig 3: Identifying C-41 Connector
G03336388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
