Quarter Window Glass And Regulator Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

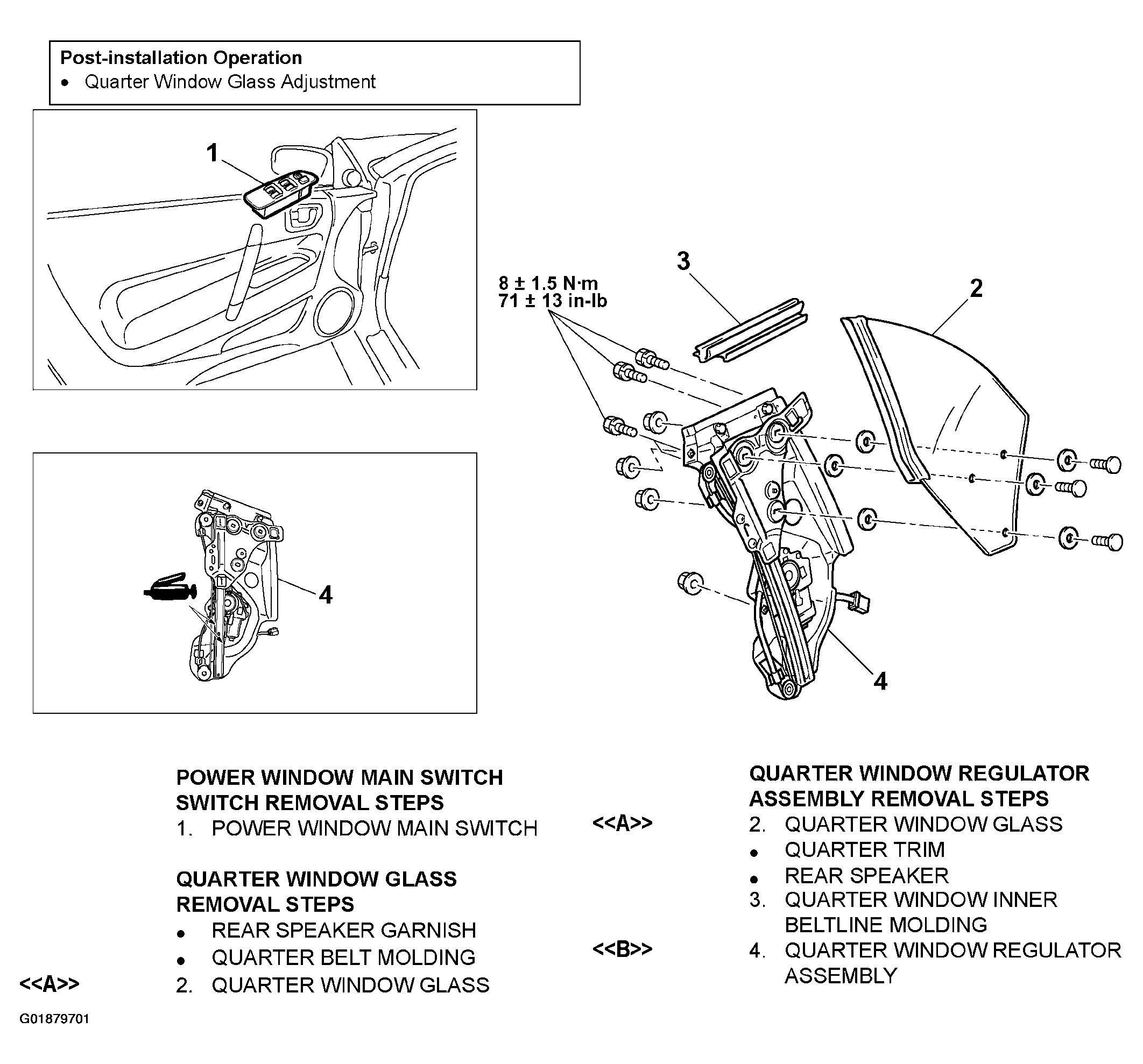

Fig 1: Identifying Removal Steps Of Quarter Window Glass And Regulator Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
