Clutch Pedal Position Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

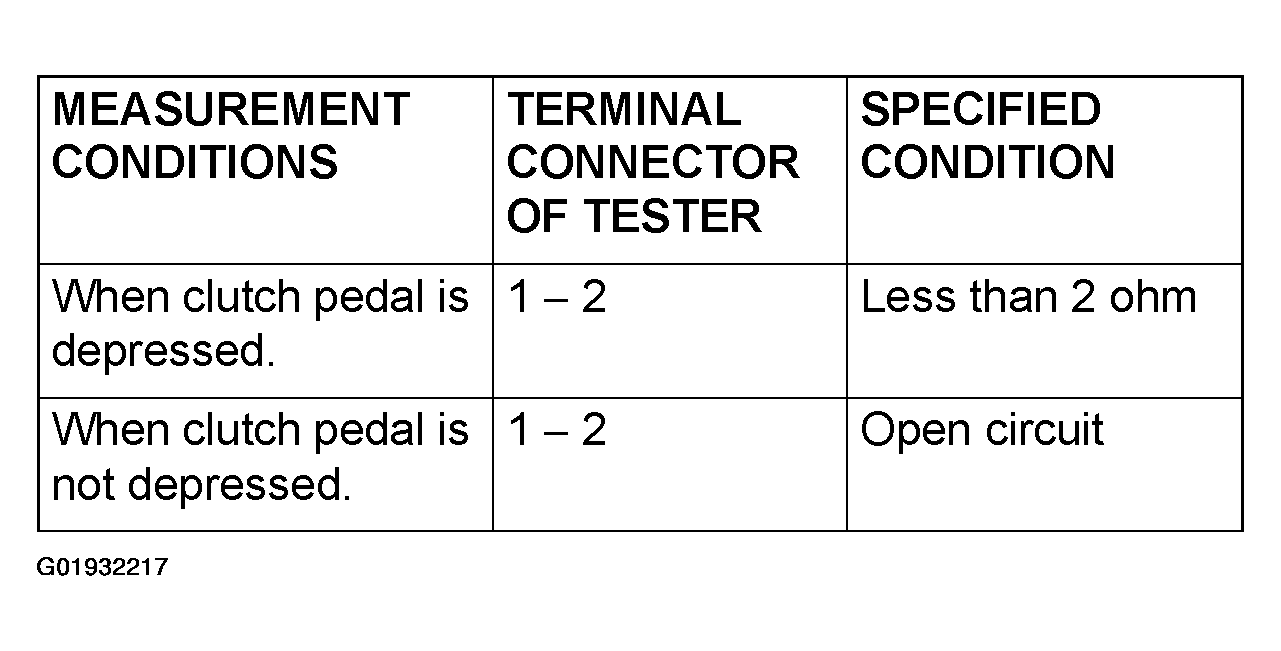

    Fig 1: Clutch Pedal Position Switch Terminals Continuity Reference Table
    G01932217Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Identifying Clutch Pedal Position Switch Terminals
    G01932218Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
