>O< Control Housing Installation

  1. Apply sealant to the mating surface of the transaxle case. Be sure to install the control housing within 15 minutes after applying sealant.

    Specified sealant:

    1. MITSUBISHI genuine sealant part No. MD997740 or equivalent
    CAUTION: Squeeze out the sealant uniformly, while making sure that it is not broken or excessively applied.

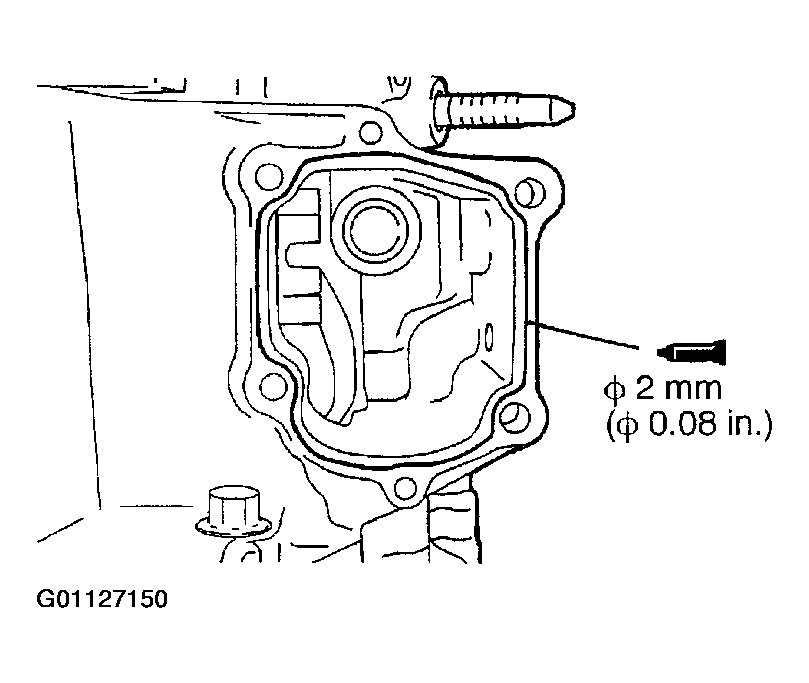

    Fig 1: Installing Control Housing
    G01127150Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. After installation, wait at least one hour. Never run the transaxle or let transmission oil touch the adhesion surface during that time.
