>E< 5TH Speed-Reverse Shift Fork/5TH Speed-Reverse Shift Rail/3RD-4TH Speed Shift Fork/3RD-4TH Speed Shift Rail Installation

  1. Shift the 3rd-4th speed synchronizer sleeve and 5th speed-reverse synchronizer sleeve in the direction shown.

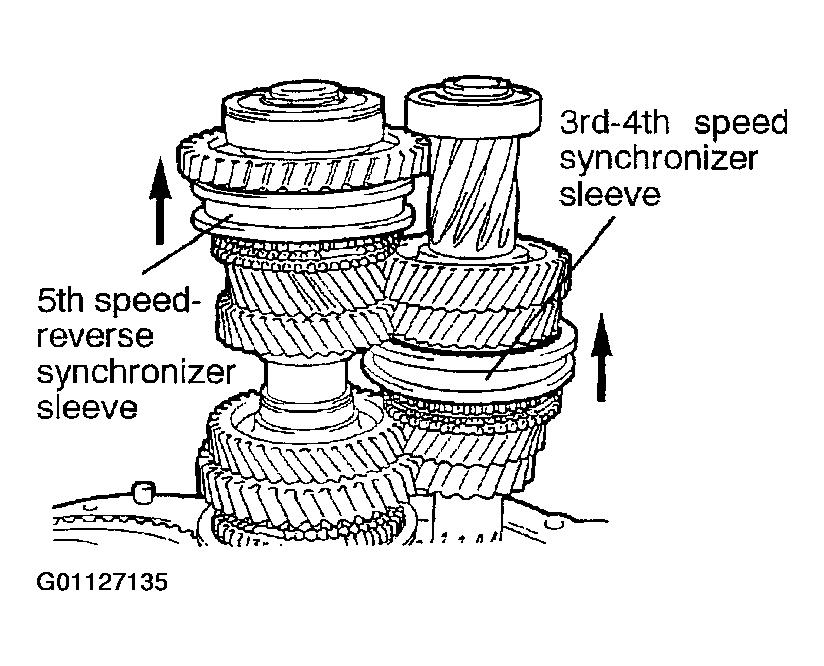

    Fig 1: Shifting 3rd-4th Speed Synchronizer Sleeve & 5th Speed-Reverse Synchronizer Sleeve
    G01127135Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the 3rd-4th speed shift rail and fork and the 5th speed-reverse shift rail and fork.

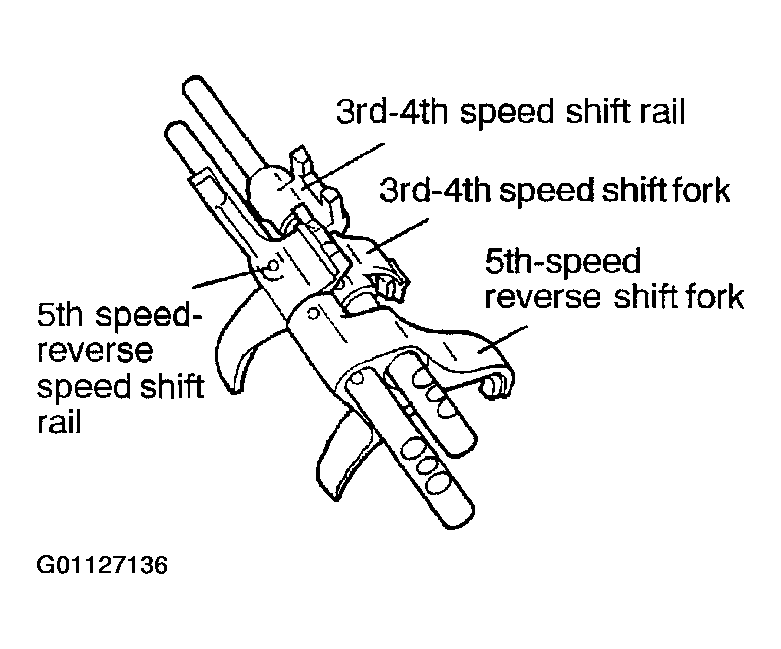

    Fig 2: Installing 3rd-4th Speed Shift Rail, Fork & 5th Speed-Reverse Shift Rail & Fork
    G01127136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. While fitting each shift fork in the sleeve, slide the shift rails in the direction shown and install.

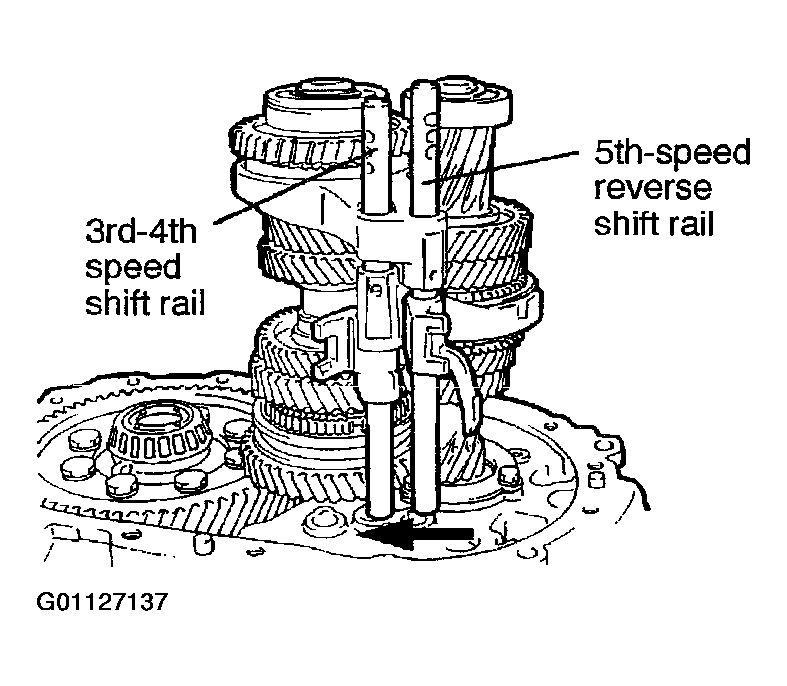

    Fig 3: Installing Shift Rails
    G01127137Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
